6
Highlights
Intuitive user guidance
Modern design
PiP-function/process monitoring
Individual user interfaces
Integrated CAD- Assistant
Ersa’s selective soldering systems of
the 4th generation are delivered with
the state-of-the-art ERSASOFT 5
operating software.
The new version of our proven sys-
tem operation software convinces,
aside from with its modern visualiza-
tion, through its operator oriented,
user friendly structure. Through
individual user interfaces, each group
of operators receives, at one glance,
the data and information it requires.
The new interface is also more
comfortable in regards to process
monitoring. Thanks to modern PiP
technology (picture in picture), the
solder parameters as well as the
process images are available at one
glance, providing optimal control for
each individual solder process.
Through an additional monitor, up to
6 single nozzles can be permanently
displayed for the purpose of process
monitoring. By a mouse click, the
individual nozzle can be enlarged to
full screen for closer observance of
the soldering process.
Simple, Clearly Arranged, Efficient
Controlling and documenting with ERSASOFT 5
7
F H L
F HH FLEX
z
y
x
z
y
x
F HH FLEX
z
y
x
z
y
x
HH L
F LLHF HH FLEX
z
y
x
z
y
x
HH LLHHH HHHH
F HH HH LL HH LL
F
H
L
HH
LH
LLH
FLEX
z
y
x
z
y
x
F
HH HH FLEX
z
y
x
z
y
x
FLEX
z
y
x
z
y
x
L
HH
HH

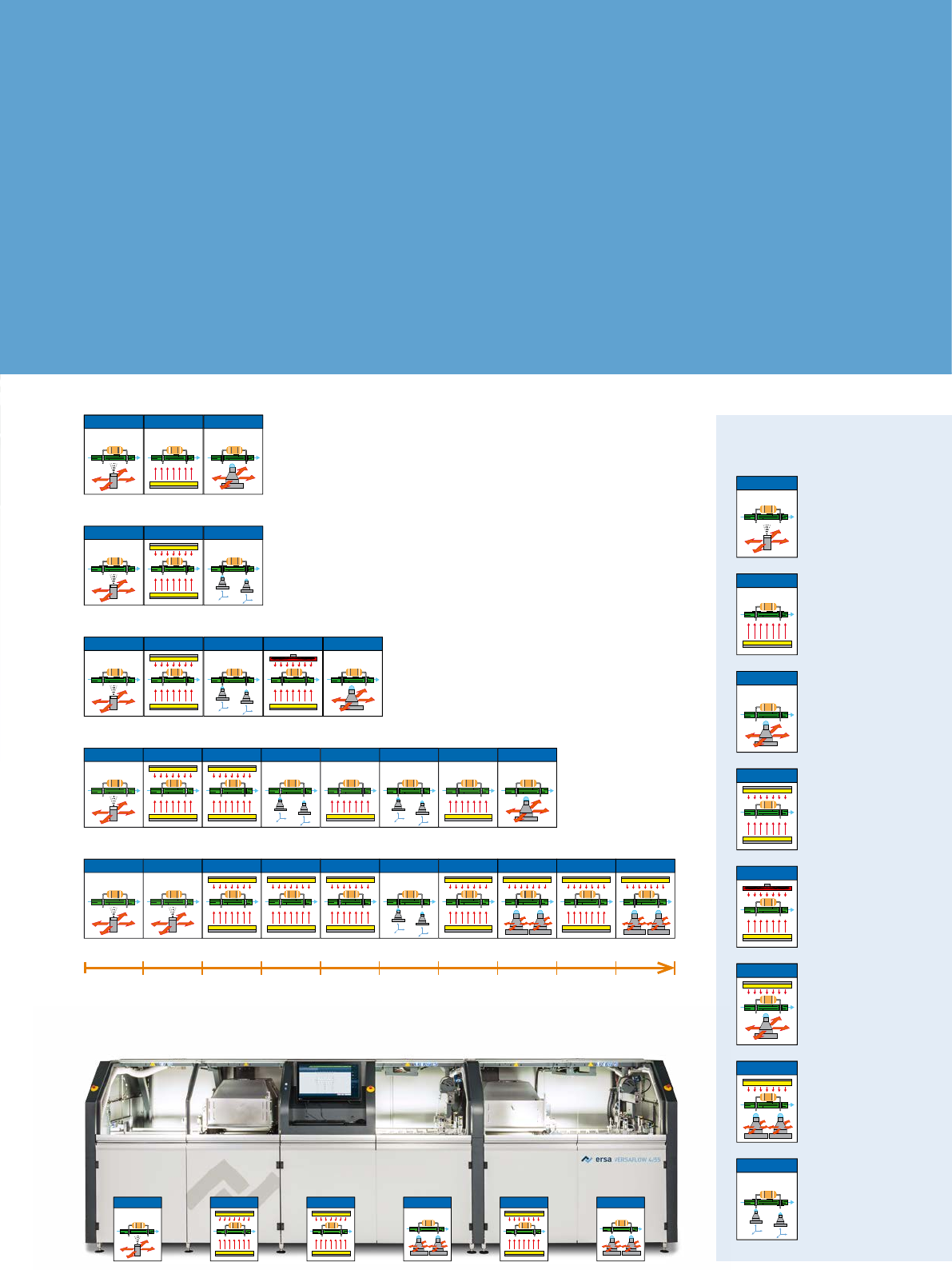

Configuration examples
Legend:
Flux module
with spray fluxer
Preheat module
with
bottom-side
heating
Solder module
with single pot
Preheat module
with power
convection
Solder module with
single pot and
top-side heating
Solder module
with dual pot and
top-side heating
The Ersa Modular System
We optimize the soldering process
for your specific needs
VERSAFLEX
solder module
1,100 mm 750 mm 750 mm 750 mm 750 mm 1,500 mm 750 mm 750 mm 750 mm 750 mm
The combinations of the arrange-
ment of different modules show only
some of the possibilities of the ex-
tremely flexible Ersa modular system
concept.
Depending on a customer’s request,
with the addition of the optional
dual pot feature, throughput could
be substantially enhanced without
increasing floor space requirements.
Preheat module
with bottom- and
top-side heating
2600
150
Transporthöhe 950
conveyor height 950
25
einstellbar 850-950
adjustable 850-950
25
610
330 885
210
1600
1800
Ersa GmbH
Leonhard-Karl-Str. 24
97877 Wertheim/Germany
Phone +49 9342 800-0
Fax +49 9342 800-127
info@ersa.de
www.ersa.com
322 206 - 012017 | subject to change | © Ersa GmbH

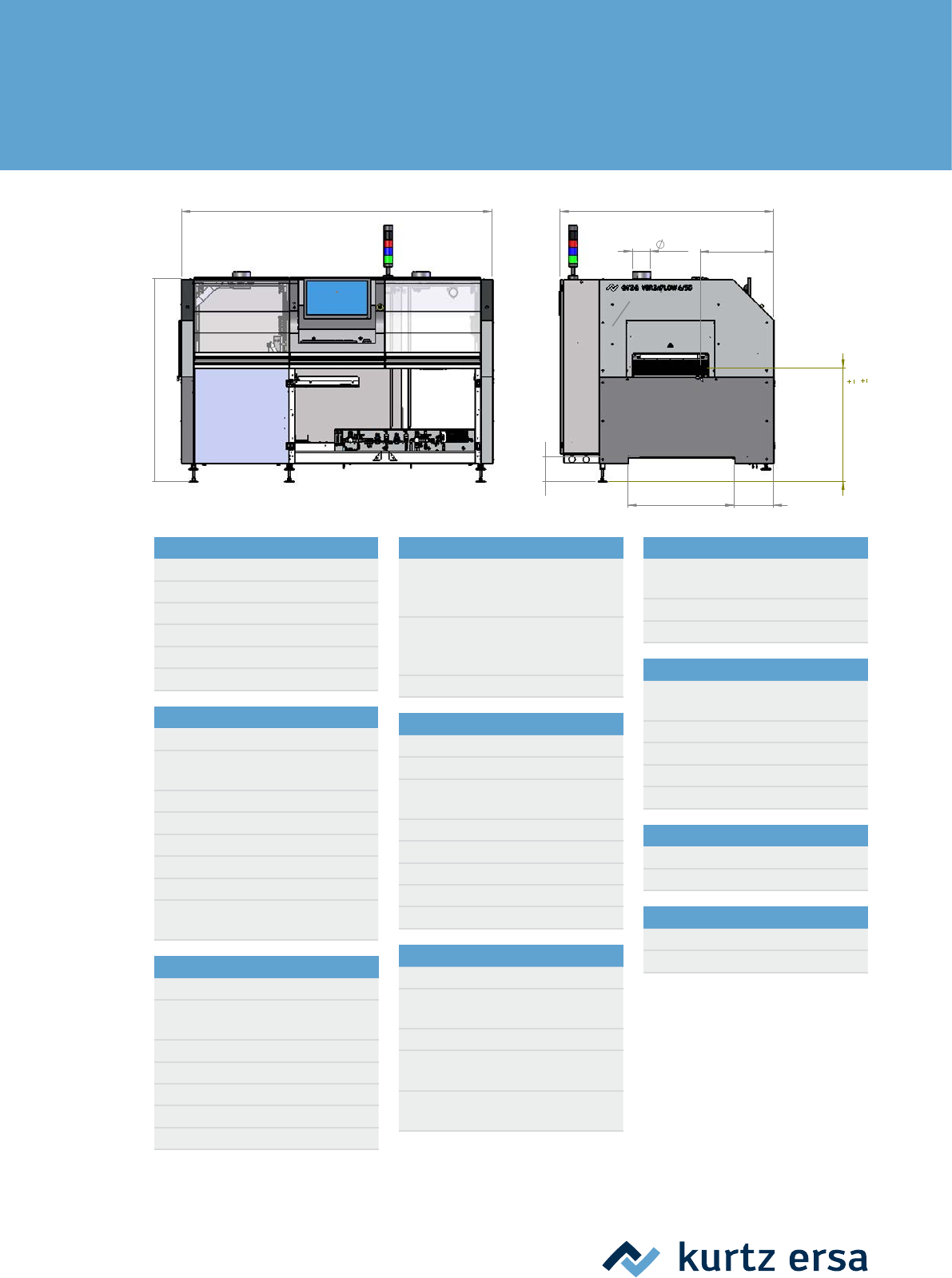

VERSAFLOW 4/55 (basic system)
Length: 2,600 mm
Width: 1,800 mm
Height: 1,600 mm
Weight: 1,500 kg
Type: inline
PCB loading: manual/automatic
Conveyor system
Type: roller conveyor
PCB width: 50 – 508 mm
(single track)
PCB length: 127 – 508 mm
Clearance from PCB edge: 3 mm
PCB top side clearance: max. 120 mm
PCB bottom side clearance:
max. 60 mm
Speed: 0.2 – 15 m/min
Mask/PCB weight: 8 kg
(heavy load conveyor optional) (15 kg)
Flux module
Typ: high-precision spray fluxer
Positioning system: 2 axis,
servo motor driven
Flux storage tank: 1.8 l
Positioning speed: 1 – 400 mm/s
Fluxer speed: 20 mm/s
Positioning accuracy: ±0.15 mm
Spray width: 2 – 8 mm (130 μm nozzle)
Technical data Ersa VERSAFLOW 4/55
Preheat module
Type: IR bottom-side (basis),
top-side convection (option),
top side power convection (option)
Power: 12 kW per IR heater,
5 kW (convection),
6 kW (power convection)
Temperature: 200 °C
Miniwave solder module
Solder wave height: max. 5 mm
Clearance from PCB edge: min. 3 mm
Solder volume: approx. 14 kg (Sn63Pb)
approx. 13 kg (lead-free)
Solder temperature: max. 330 °C
Warm-up time: 75 min to 280 °C
Positioning speed: X/Y; 2 – 200 mm/s
Soldering speed: 10 mm/s
Positioning accuracy: ±0.15 mm
Nitrogen technology
Nitrogen supply: to be supplied locally
Nitrogen injection: N
2
cover
over the solder bath
Required pressure: 6 bar
Consumption: approx. 1.5 m³/h
per pot
Particle cleanliness: 5.0
(recommendation)
Compressed air
Compressed air supply: to be supplied
locally
Required pressure: 6 bar
Consumption : < 5 m³/h
Electrical data
Power: 5-wire system,
3 x 230/400 V, N, PE
Power tolerance range: ±6 %, -10 %
Frequency: 50/60 Hz
Power consumption: 22 kW
Safety fuse: max. 45 A
Exhaust rating
Exhaust stacks: 2 pc., OD 150 mm
Exhaust volume per stack: 300 m³/h
Environmental specs/noise level
Ambient temperature: 15 – 35 °C
Permanent sound level: <65 dB(A)
