Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 10/2005 US
27
After SIPLACE Pro has successfully checked the user account and its administrator rights, the
SQL Server window opens. 4
Step 4
In the "Select SQL-Server" dialog box you enter the information required to be connected with the
SQL Server and database. 4
In case a SIPLACE Pro database already exists, the integrity of the database will be checked now.
If the check results in error messages, these messages will be displayed and the setup cannot
continue with this database. Only after selecting another database or after restoring the database
in an error-free state the setup can continue. 4
4
Fig. 4 - 12 "Select SQL-Server" dialog box - in case a database exists
Æ Enter the "Password for the SQL Server user "sa", i.e. the SQL server system administrator.
Note
After a fresh MSDE installation, the password is the Siemens Service default password. 4
Æ Choose your SQL Server Instance from the drop-down menu.
Æ Click Next
Step 5
In case no database with the name "SIPLACE Pro" exists, the following dialog will appear: 4
4 Installation of SIPLACE Pro and possible Setup Types Installation manual SIPLACE Pro
Edition 10/2005 US
28
4

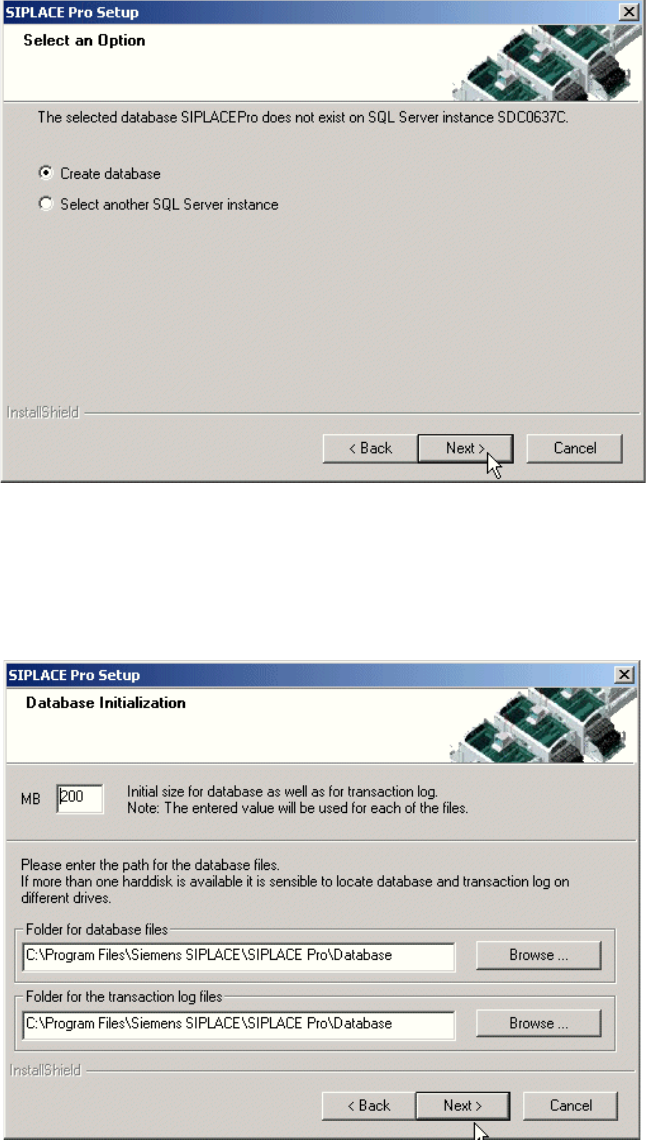

Fig. 4 - 13 "Create database" dialog box - in case no database exists
Æ If you choose Select another SQL Server instance you will be returned to the previous
dialog.
Æ Click Next to create a new database.
Fig. 4 - 14 "Database initialization" dialog box
Installation manual SIPLACE Pro 4 Installation of SIPLACE Pro and possible Setup Types
Edition 10/2005 US
29
The figure you enter in the MB text box defines the size of the SIPLACE Pro database files
(SIPLACE Pro Data.dat and SIPLACE Pro Log.dat) which are to be created during the
installation. 4
Æ Confirm the default value or
Æ enter the size you want in the MB text box.
Note
The specified size is only an initial value. The database will grow automatically as required.
However, only intervention by the database administrator is capable of freeing up unused disk
space. 4
Æ In the "database files" edit field, enter the directory in which the SIPLACE Pro Data.dat file is
to be created.
Æ In the transaction log files edit field, enter the name of the directory in which the
SIPLACE Pro Log.dat database file is to be created.
Note
You can specify a different folder for each of the database files. Indeed, having the files on different
hard disks can improve disk access performance. 4
Step 6
Æ If you choose Next the following dialog will appear if a mail server has been detected
Æ If you wish for Error Reports to be sent automatically to Siemens, fill in your email address and
Mail Server name. The mail server field is preset to a valid name as found in your domain.
