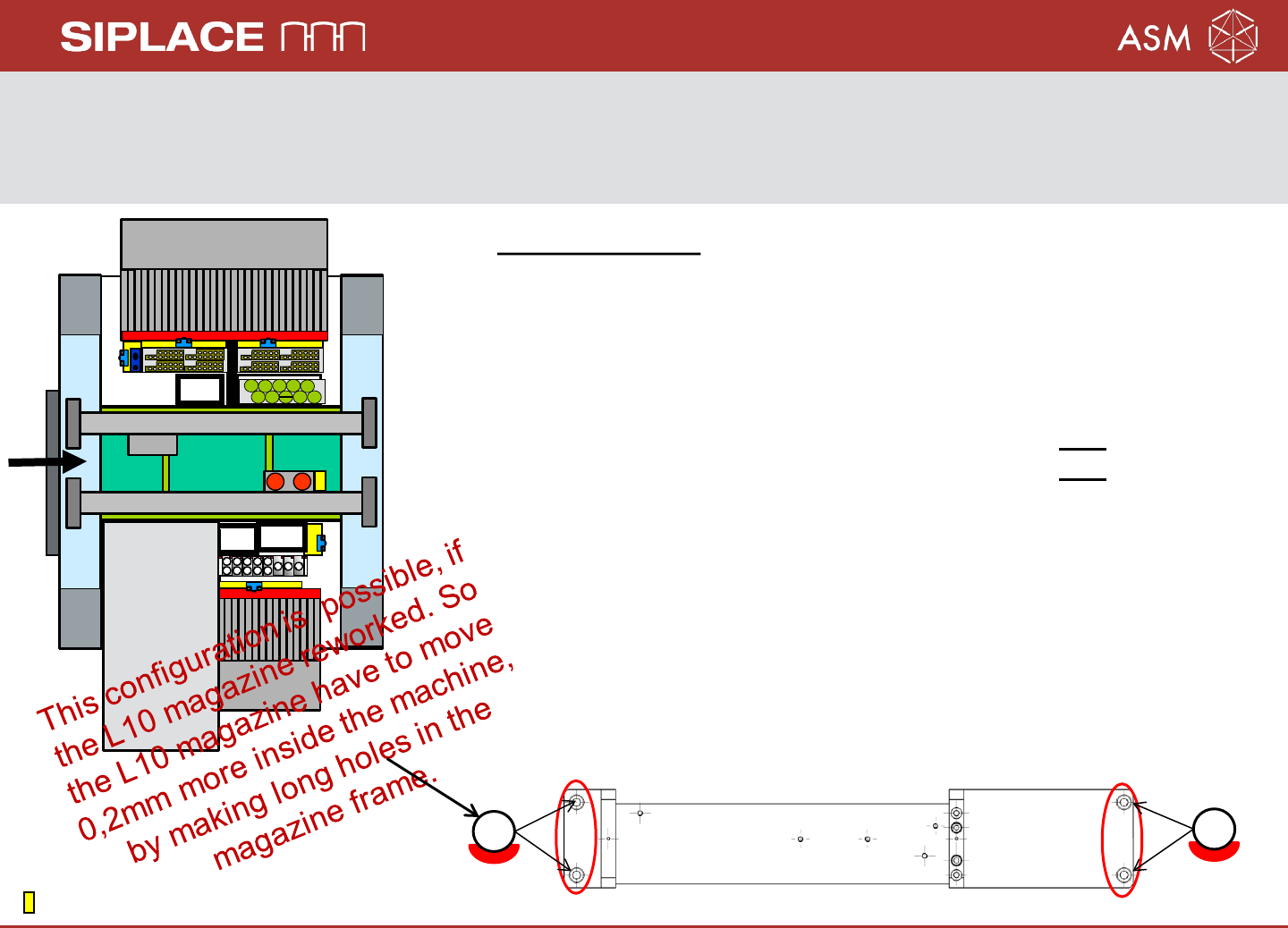

Configuration SX2 with CPP_H and Twin VHF
Sales Number: 00519986 Option pack Twin VHF
40mm70N with gantry
The sales number include the following number:
1. 03105049-xx “GR gantry 40 mm w/ VHF-Twin module“
2. 03105335-xx “Reconfig. kit VHF Twin module”
2.1
03063673-03 (Barcode SP1) or
2.2 03063693-03 (Barcode SP2)
Additional orders:
1. 00519918-xx Stationary FC-Camera Type 25 (optional)
2. 00119827-xx WPC 5 Standard
3. 00119828-xx WPC 6 Non Stop module
4. 00519988-xx Option SPS (Smart Pin Support)
Note: Also the opposite configuration is possible.
(Gantry1 CPP_H and Gantry 2 Twin VHF)
SST33
FCU
Sensor
Sensor
WPC
5/6
FC/3D
FCU
Sensor
Sensor
Sensor
Gantry 2
Gantry 1
CPP_H
SST33
Pin Picker for gantry 40mm
20.04.2017 Page 10

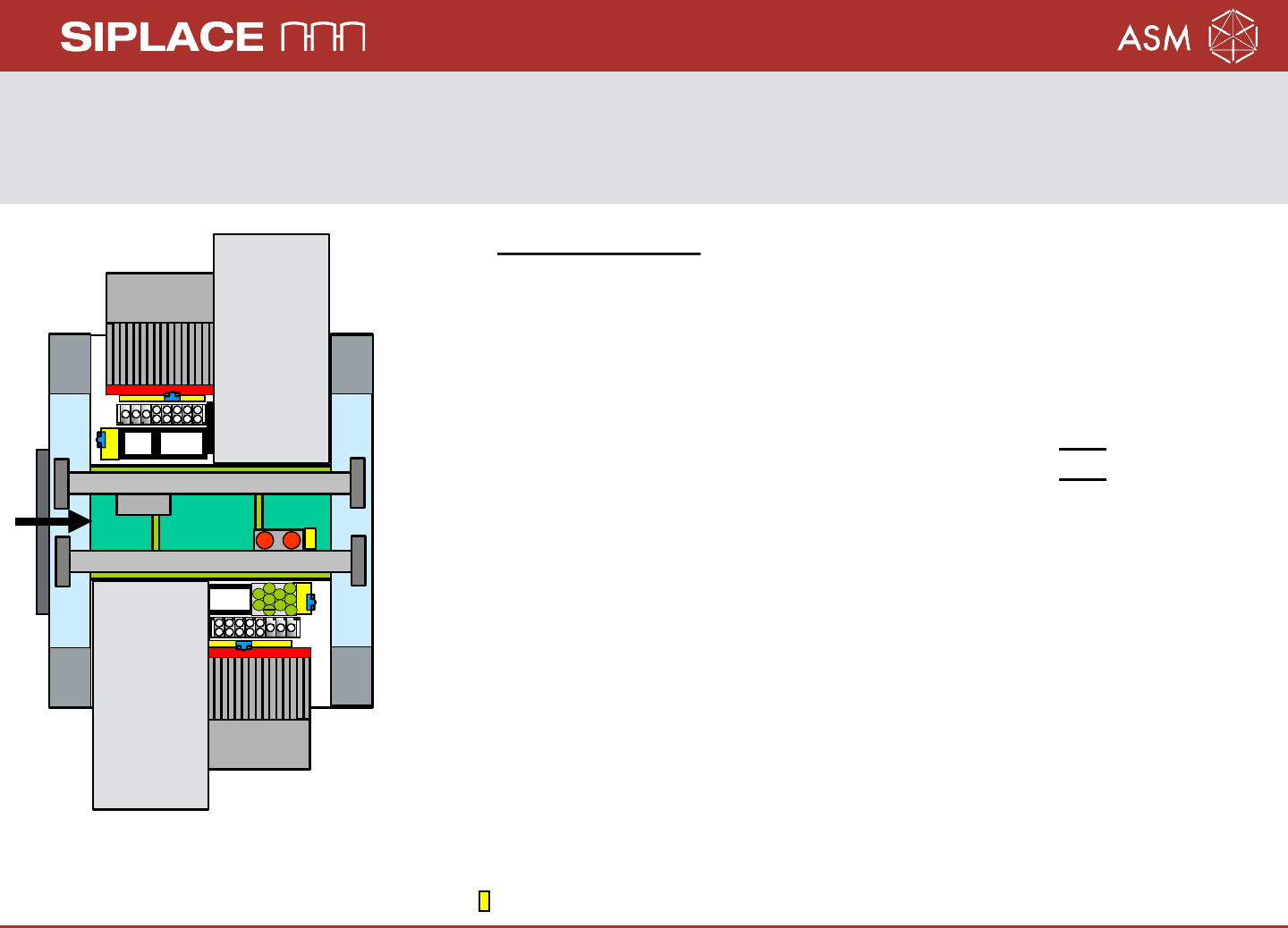

Configuration SX2 with Twin Head and Twin VHF
Sales Number: 00519986 Option pack Twin VHF
40mm70N with gantry
The sales number include the following number:
1. 03105049-xx “GR gantry 40 mm w/ VHF-Twin module“
2. 03105335-xx “Reconfig. kit VHF Twin module”
2.1
03063673-03 (Barcode SP1) or
2.2 03063693-03 (Barcode SP2)
Additional orders:
1. 00519918-xx Stationary FC-Camera Type 25 (optional)
2. 00119827-xx WPC 5 Standard
3. 00119828-xx WPC 6 Non Stop module
4. 00519988-xx Option SPS (Smart Pin Support)
Note:
Also the opposite configuration is possible.
(Gantry1 Twin head and Gantry 2 Twin VHF)
Pin Picker for gantry 40mm
SST33
FCU
Sensor
Sensor
WPC
5/6
ST33
FCU
Sensor
Sensor
WPC
5/6
FC/3D
Gantry 2
Gantry 1
TH
