20.04.2017 Page 5
Configuration packages
Sales Number: 00519986 Option pack Twin VHF 40mm70N with gantry
Content:
1. 03105049-xx “GR gantry 40 mm w/ VHF-Twin module“
2. 03105335-xx “Reconfig. kit VHF Twin module”
Configurable packages via SAP:
1. 00519902-xx Stationary IC-Camera (00519918-xx Stationary FC-Camera Type 25)
2. 00519845-xx Nozzle changer TH for SX machine
3. 00519988-xx Option SPS (include 03104671-01SPS Pin Picker 40mm machine)
4. 00119827-xx WPC 5 Standard
5. 00119828-xx WPC 6 Non Stop module Option WPC 5/6
Ma-Type
SX1 SX2 SX2 SX2 SX2 SX2
Gantry 1
Twin VHF CPP_H Twin VHF Twin Head Twin VHF Twin VHF
Gantry 2
--
Twin VHF CPP_H Twin VHF Twin Head Twin VHF
20.04.2017 Page 6

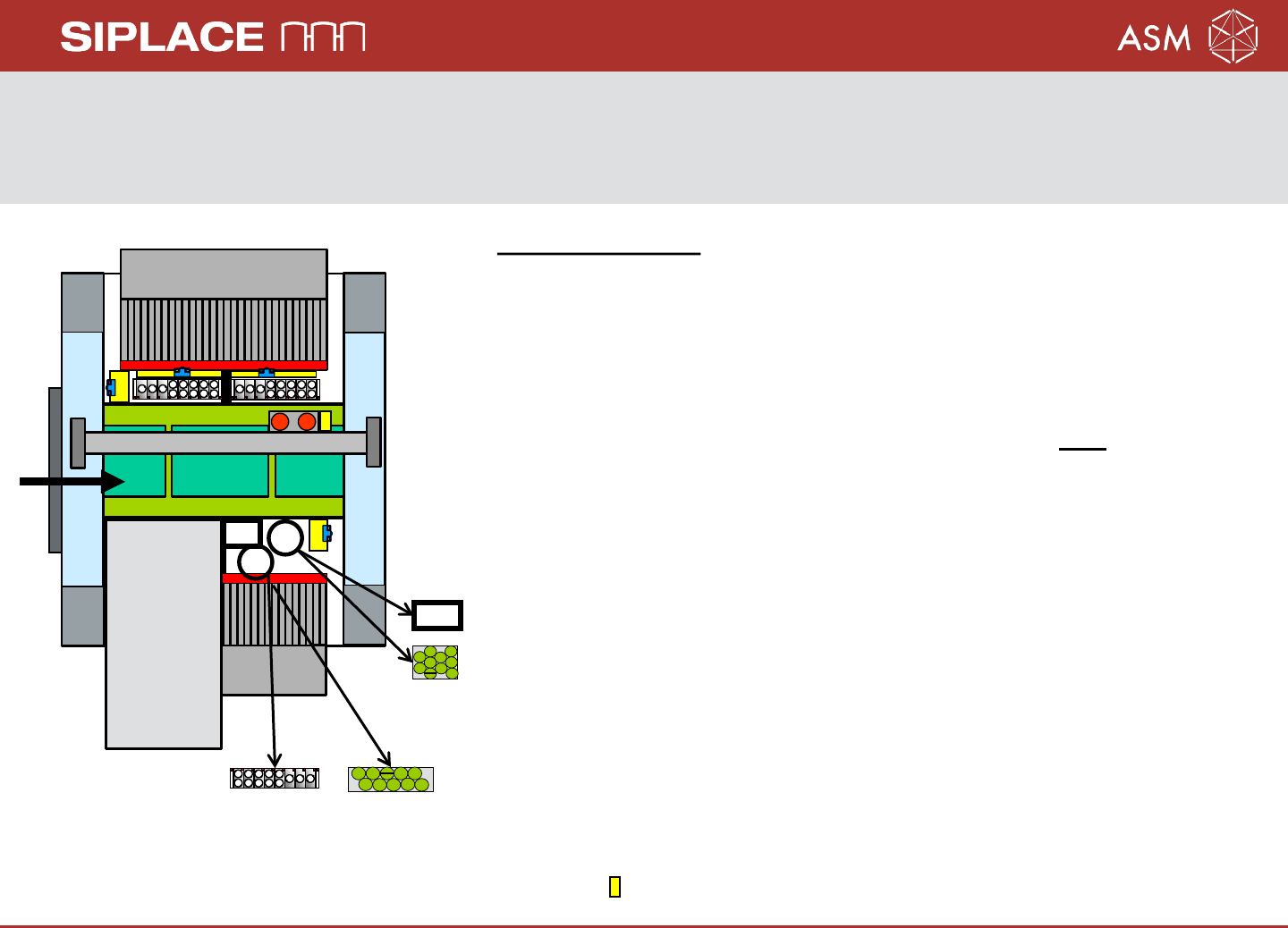

Configuration SX1 with C&P head to Twin VHF
Sales Number: 00519986 Option pack Twin VHF
40mm70N with gantry
The sales number include the following number:
1. 03105049-xx “GR gantry 40 mm w/ VHF-Twin module“
2. 03105335-xx “Reconfig. kit VHF Twin module”
2.1
03063673-03 (Barcode SP1)
If you replace a Gantry with C&P head without stationary camera to a
gantry with Twin VHF, the following parts are necessary:
Additional orders:
1. 00519902-xx Stationary IC-Camera Type 33
1.1 03070836-xx plate complete SP1
2. 00519918-xx Stationary FC-Camera Type 25
3. 00519845-xx Nozzle changer TH SX-series
4. 00119827-xx WPC 5 Standard
5. 00119828-xx WPC 6 Non Stop module
6. 00519988-xx Option SPS (Smart Pin Support)
Pin Picker for gantry 40mm
1. Option:, nozzle changer or SPS magazine
2. Option: stationary camera or SPS magazine
FCU
FCU
Sensor
Sensor
Sensor
Sensor
FC/3D
SST33
WPC
5/6
Gantry 1
1
2
20.04.2017 Page 7
Configuration SX1 with Twin Head to Twin VHF
Sales Number: 00519986 Option pack Twin VHF
40mm70N with gantry
The sales number include the following number:
1. 03105049-xx “GR gantry 40 mm w/ VHF-Twin module“
2. 03105335-xx “Reconfig. kit VHF Twin module”
2.1
03063673-03 (Barcode SP1)
If you replace a Gantry with Twin head to a gantry with Twin VHF, the
following parts are necessary:
Additional orders:
1. 00519918-xx Stationary FC-Camera Type 25 (optional)
2. 00119827-xx WPC 5 Standard
3. 00119828-xx WPC 6 Non Stop module
4. 00519988-xx Option SPS (Smart Pin Support)
Pin Picker for gantry 40mm
1. Option:, nozzle changer or SPS magazine
2. Option: stationary camera or SPS magazine
FCU
FCU
Sensor
Sensor
Sensor
Sensor
SST33
WPC
5/6
Gantry 1
FC/3D
1
2
