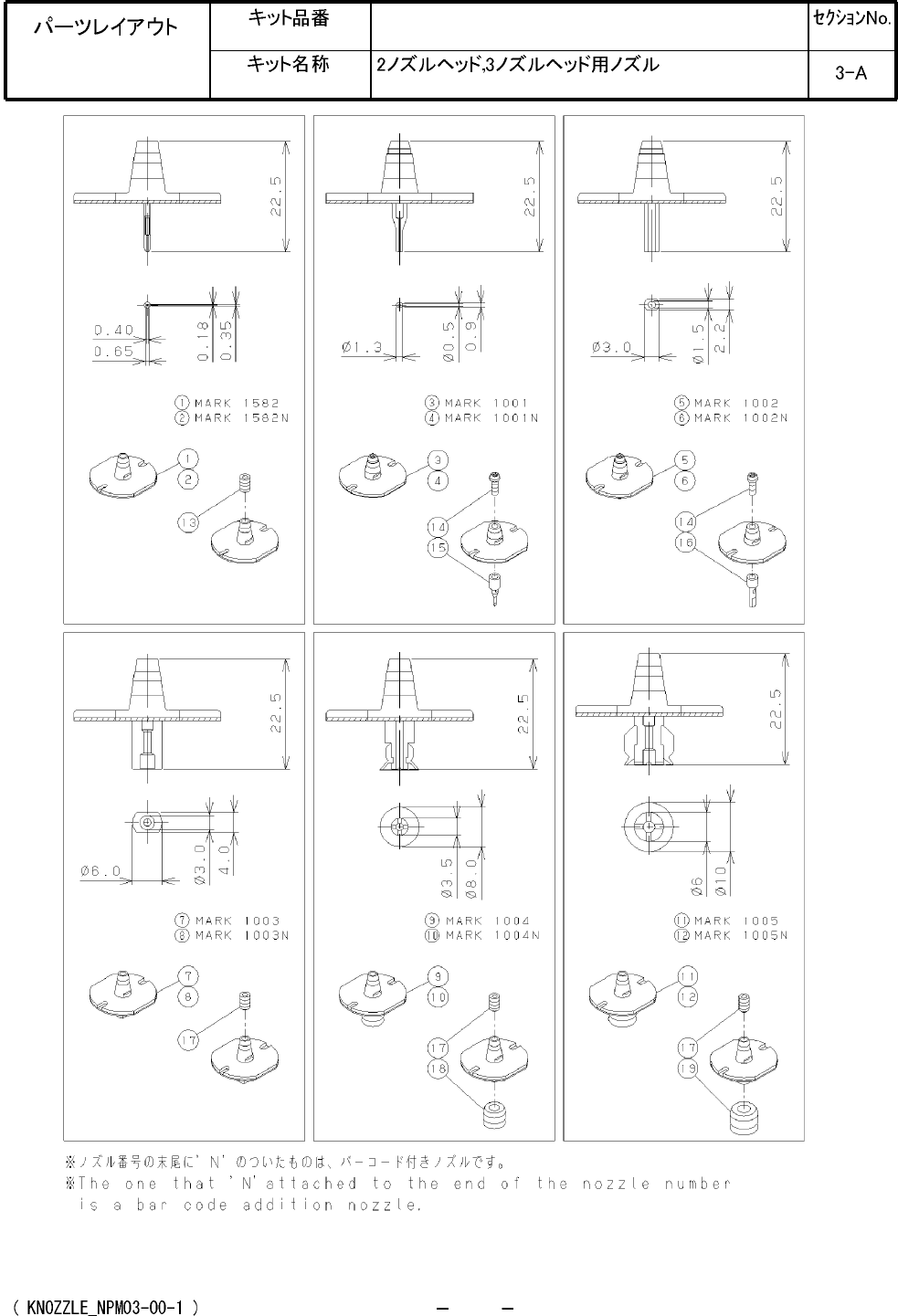

F o r 2 n oz z l e h ea d an d 3 n o z z l e h ead Ki t N o . K i t N a me N O ZZ L E _ N P M 03 P A R T S L AY O UT S e c t i o n N o. S9

100%1 / 684
For 2 nozzle head
and 3 nozzle head
For 2 nozzle head and 3 nozzle head
Ki
t
N
o
.
Kit Name
NOZZLE_NPM03
PARTS LAYOUT
Section No.
S9
Ref
No.
Remarks
R
1
Q'ty
For 2 nozzle head and 3 nozzle head
Part No.
R
2
Kit N
o
.
Kit Name
NOZZLE_NPM03
Part Name
PARTS LIST
Section No.
R
3
NOZZLE No.1582
1
1KXFX05KVA00
NOZZLE No.1582N
1
2N610099244AA Mark Bar Code
NOZZLE No.1001
1
3KXFX037SA00
NOZZLE No.1001N
1
4N610098969AA Mark Bar Code
NOZZLE No.1002
1
5KXFX037TA00
NOZZLE No.1002N
1
6N610098970AA Mark Bar Code
NOZZLE No.1003
1
7KXFX037UA00
NOZZLE No.1003N
1
8N610098971AA Mark Bar Code
NOZZLE No.1004
1
9KXFX037VA00
NOZZLE No.1004N
1
10N610098972AA Mark Bar Code
NOZZLE No.1005
1
11KXFX037WA00
NOZZLE No.1005N
1
12N610098973AA Mark Bar Code
SCREW
1
13KXFB0F1MA00
BOLT
1
14KXFB03KNA00
NOZZLE
1
15KXFB01MHA00
NOZZLE
1
16KXFB01MJA00
SCREW
1
17KXFB03KPA00
PAD
1
18KXF07QUAA00 KP-8-N
PAD
1
19KXF07QVAA00 KP-10-N
