F o r 2 n oz z l e hea d an d 3 n o z z l e h ea d ( Fo r a t y p i ca l pa rt s) Ki t N o . K i t N a me N O ZZ L E _ N P M 04 P A R T S L AY O UT S e c t i o n N o. S 15

100%1 / 684
Ref
No.
Remarks
R
1
Q'ty
For 2 nozzle head and 3 nozzle head(For atypical parts)
Part No.
R
2
Kit N
o
.
Kit Name
NOZZLE_NPM04
Part Name
PARTS LIST
Section No.
R
3
NOZZLE No.1551
1
1KXFX05J7A00
NOZZLE No.1551N
1
2N610127747AA Mark Bar Code
NOZZLE No.1479
1
3KXFX05ASA00
NOZZLE No.1479N
1
4N610117226AA Mark Bar Code
NOZZLE No.2405
1
5KXFX05BVA00
NOZZLE No.2405N
1
6N610117223AA Mark Bar Code
NOZZLE No.1404
1
7KXFX0558A00
NOZZLE No.1404N
1
8N610117224AA Mark Bar Code
NOZZLE No.1421
1
9KXFX056AA00
NOZZLE No.1421N
1
10N610117225AA Mark Bar Code
NOZZLE No.2467
1
11KXFX05F9A00
NOZZLE No.2467N
1
12N610128174AA Mark Bar Code
SCREW
1
13KXFB0F1MA00
S14
For 2 nozzle head and 3 nozzle head(For atypical parts)
Ki
t
N
o
.
Kit Name
NOZZLE_NPM04

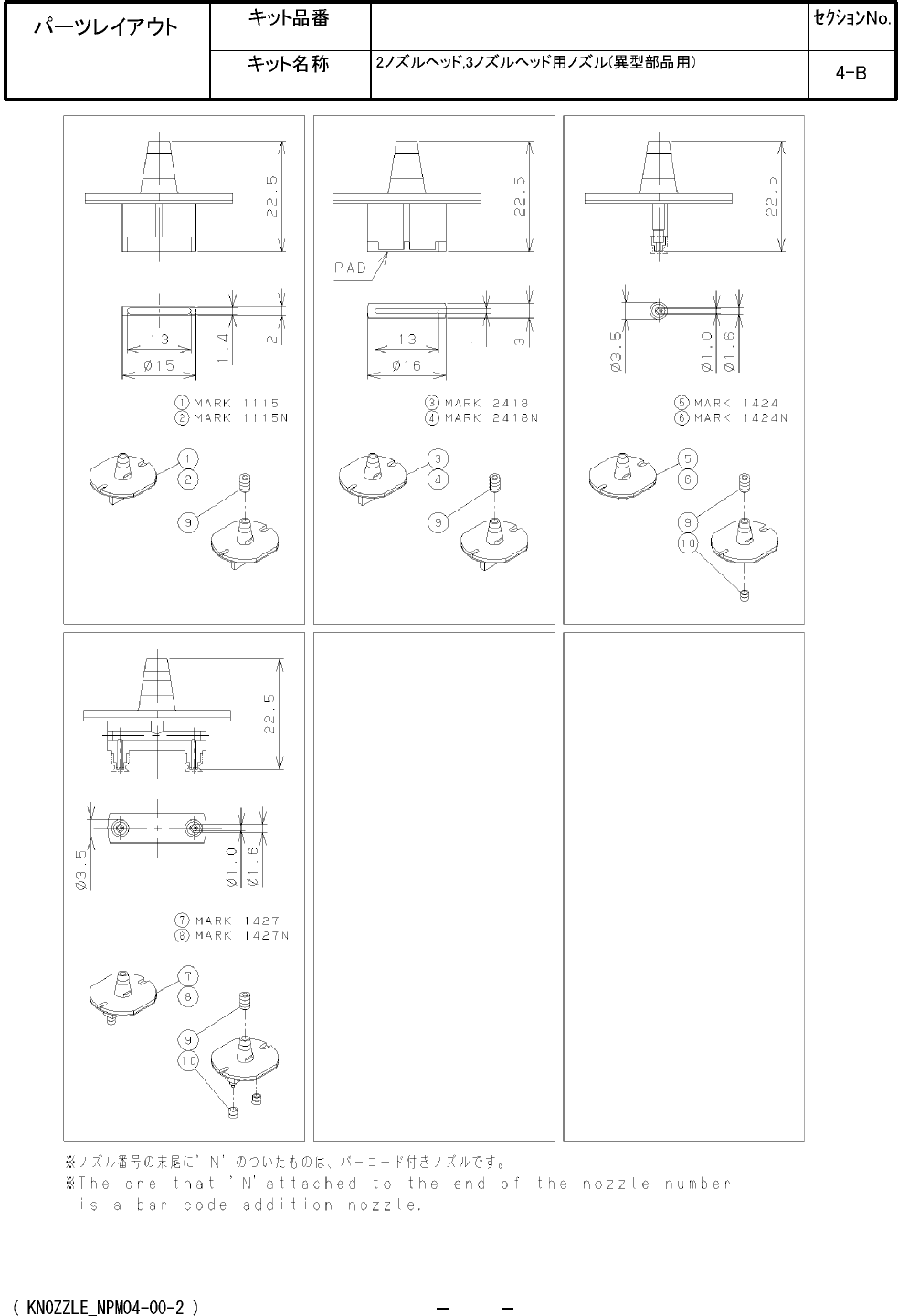

PARTS LAYOUT
Section No.
S15
Ref
No.
Remarks
R
1
Q'ty
For 2 nozzle head and 3 nozzle head(For atypical parts)
Part No.
R
2
Kit N
o
.
Kit Name
NOZZLE_NPM04
Part Name
PARTS LIST
Section No.
R
3
NOZZLE No.1115
1
1KXFX04PJA00
NOZZLE No.1115N
1
2N610117221AA Mark Bar Code
NOZZLE No.2418
1
3KXFX05CMA00
NOZZLE No.2418N
1
4N610117211AA Mark Bar Code
NOZZLE No.1424
1
5KXFX056PA00
NOZZLE No.1424N
1
6N610127619AA Mark Bar Code
NOZZLE No.1427
1
7KXFX0570A00
NOZZLE No.1427N
1
8N610127623AA Mark Bar Code
SCREW
1
9KXFB0F1MA00
PAD
1
10KXF08KPAA00 KP-3.5-N
S16
