Page 4
1-2 Description of Consumable Parts
2) GREASE OIL COMPATIBILITY LIST! will help you to directly deal with oil/grease maker(s) in any
country(ies) other than Japan.
The consumable parts section also describes the parts that are not intended for this product.
Please refer to the separate-volume instruction manuals, for the consumable parts that are applicable to this
product.
OIL GREASE 2)GREASE OIL
COMPATIBILITY LIST!
OIL GREASE 2)GREASE OIL
COMPATIBILITY LIST
1) PARTS LIST
2) GREASE OIL COMPATIBILITY LIST
Refer to the maker name in the column
of the corresponding country/region.
Consumable
part No.
The maker name is shown in the hatched section.
Page 5

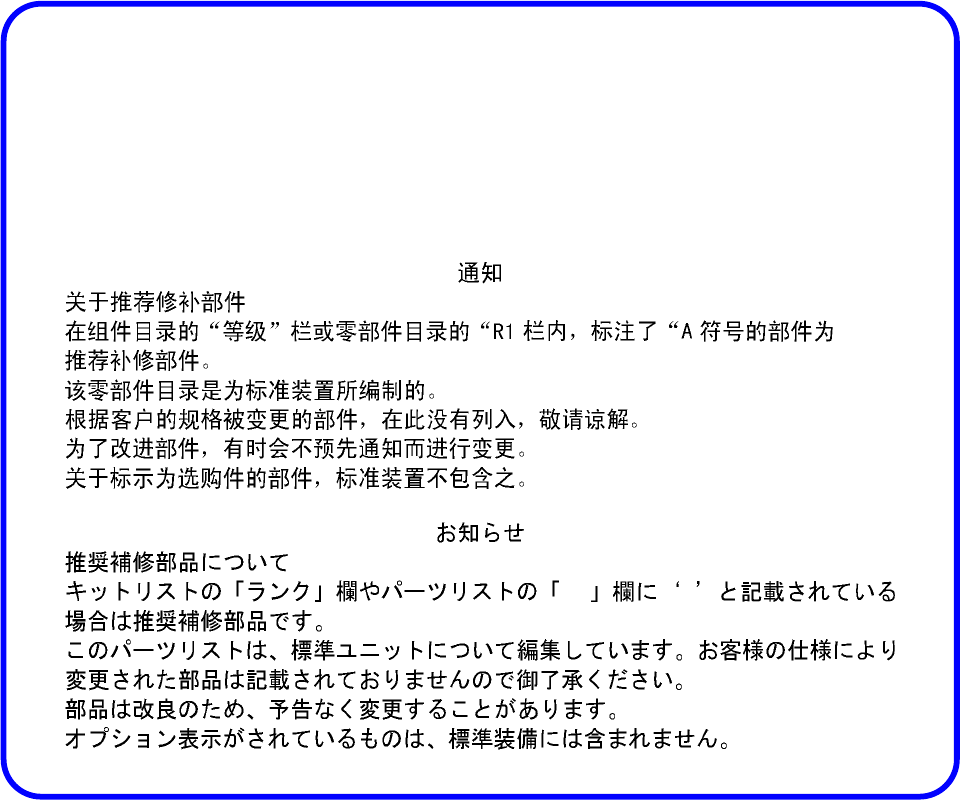

Note
1. Recommended spare parts
Those with a symbol 'A' in the column R1 in the parts list or in the column Rank
in the kit list are recommended spare parts.
2. Standard units only are shown in this parts list.
No parts modified to your specifications are shown.
3. Parts may be modified without notice for the improvement of the parts.
4. Parts shown as optional are not included as standard equipment.
1.
! !
2.
3.
4.
1.
R1 A
2.
3.
4.
Page 6
2 Precautions for Replacing Parts
This machine is CE marking-compliant product that meets the requirements of the EC Council Directives (for
products for industrial use).
However, in the countries where CE marking is not required, the machine may be provided with individual
specifications according to your request. Note that, in such a case, the machine may not comply with relevant
CE Directives.
Accordingly, the electrical components, cables and devices must be our recommended genuine parts. You
should not remodel the machine on your own.
Particularly, the parts marked with 'S' in the R2 column in the list are safety parts related to product safety. (See
below.)
And, the parts marked with "C# in the R3 column are controllers such as parameter-set! drivers.
EC CE
CE
R2 "S# ( )
R3 "C# !
EC CE
CE
R2 S (
)
R3 C
