Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. A1 1008-001 Fig. A1-2 109 0957A10M COVER 1 109570010T -009 1 10 0957A108 BLOCK 1 109570010T -010 1 1 1 0957A10P COVER 1 109570010T -01 1 1 12 0957A10N BRACKET 1 10957…

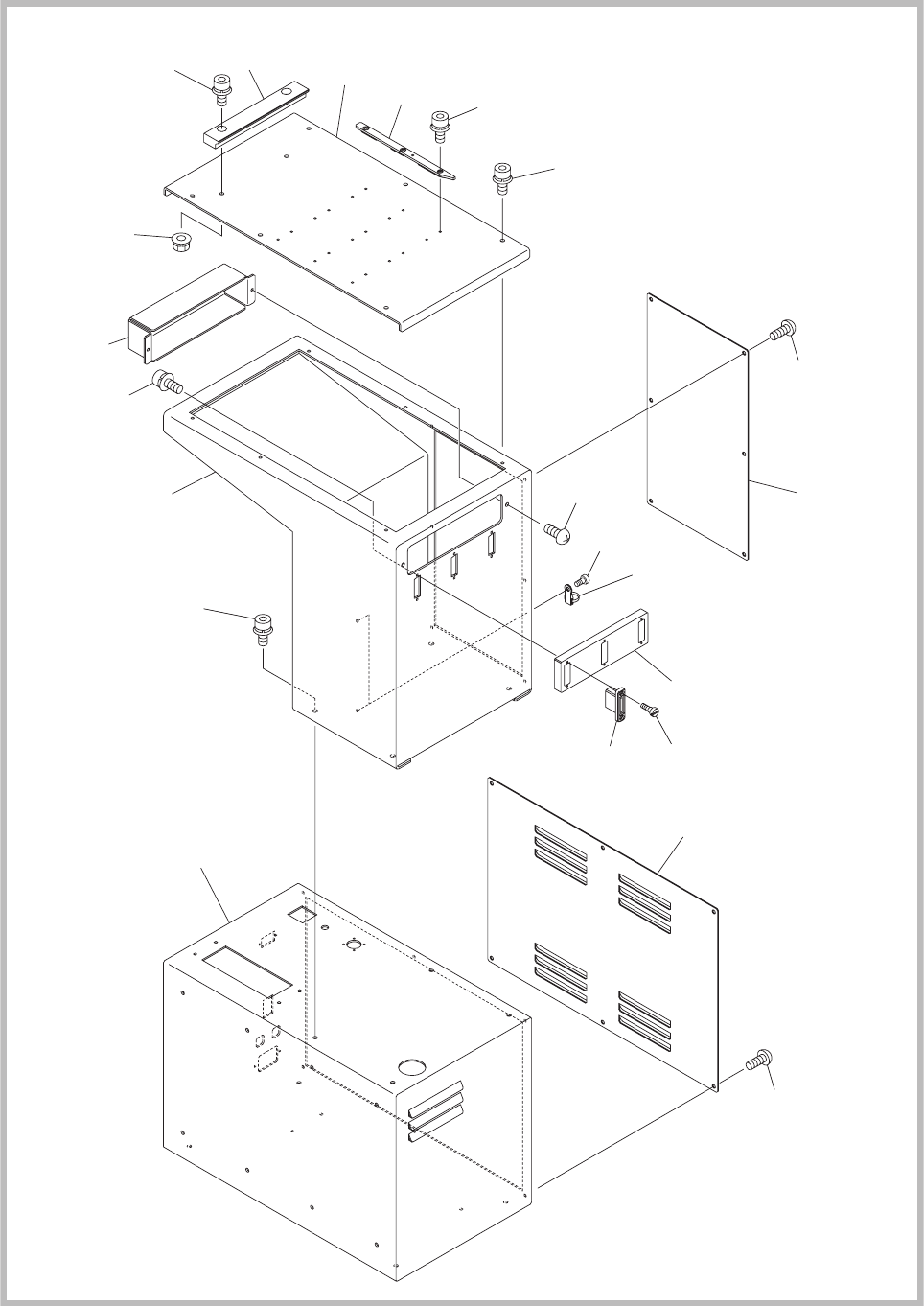

Fig. A1-2
フィーダベース部
Feeder Base Section
1008-001
Fig. A1
カート電源ユニット
(GS-FC301)
CART POWER UNIT(GS-FC301)
109
110
120
111
112
113
114
115
116
137
139
123
125
126
131
131
138
121
124
125
125
127
129
130
126
133
134
135
128
See Fig.A1-3
Key No.211
131
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1008-001
Fig. A1-2
109 0957A10M COVER 1 109570010T-009
110 0957A108 BLOCK 1 109570010T-010
111 0957A10P COVER 1 109570010T-011
112 0957A10N BRACKET 1 109570010T-012
113 0957A10R COVER 1 109570010T-013
114 0957A10J PLATE 6 109570010T-014
115 0957A10K BLOCK 1 109570010T-015
116 0957A10Q PLATE 1 109570010T-016
120 0957A00N DrawerCONN 3 109570010T-020
121 221E0298 BOLT 6 109570010T-021
123 221AA029 ROHS_HEX-SCT 4 109570010T-023
124 221AA031 ROHS_HEX-SCT 2 109570010T-024
125 221HA005 WASHER 8 109570010T-025
126 221HA105 WASHER 6 109570010T-026
127 221FA009 NUT_HEX 2 109570010T-027
128 221AA006 ROHS_HEX-SCT 18 109570010T-028
129 221AA145 ROHS_HEX-SCT 6 109570010T-029
130 221HA002 WASHER 6 109570010T-030
131 221DA207 MACHINE_SCREW 14 109570010T-031
133 221AA017 ROHS_HEX-SCT 6 109570010T-033
134 221HA004 WASHER 1 109570010T-034
135 221HA104 WASHER 6 109570010T-035
137 23N30632 WIRING 2 109570010T-037
138 221DA053 MACHINE_SCREW 2 109570010T-038
139 23N30737 ACCESS_WIRING(M 2 109570010T-039
GS-FC301

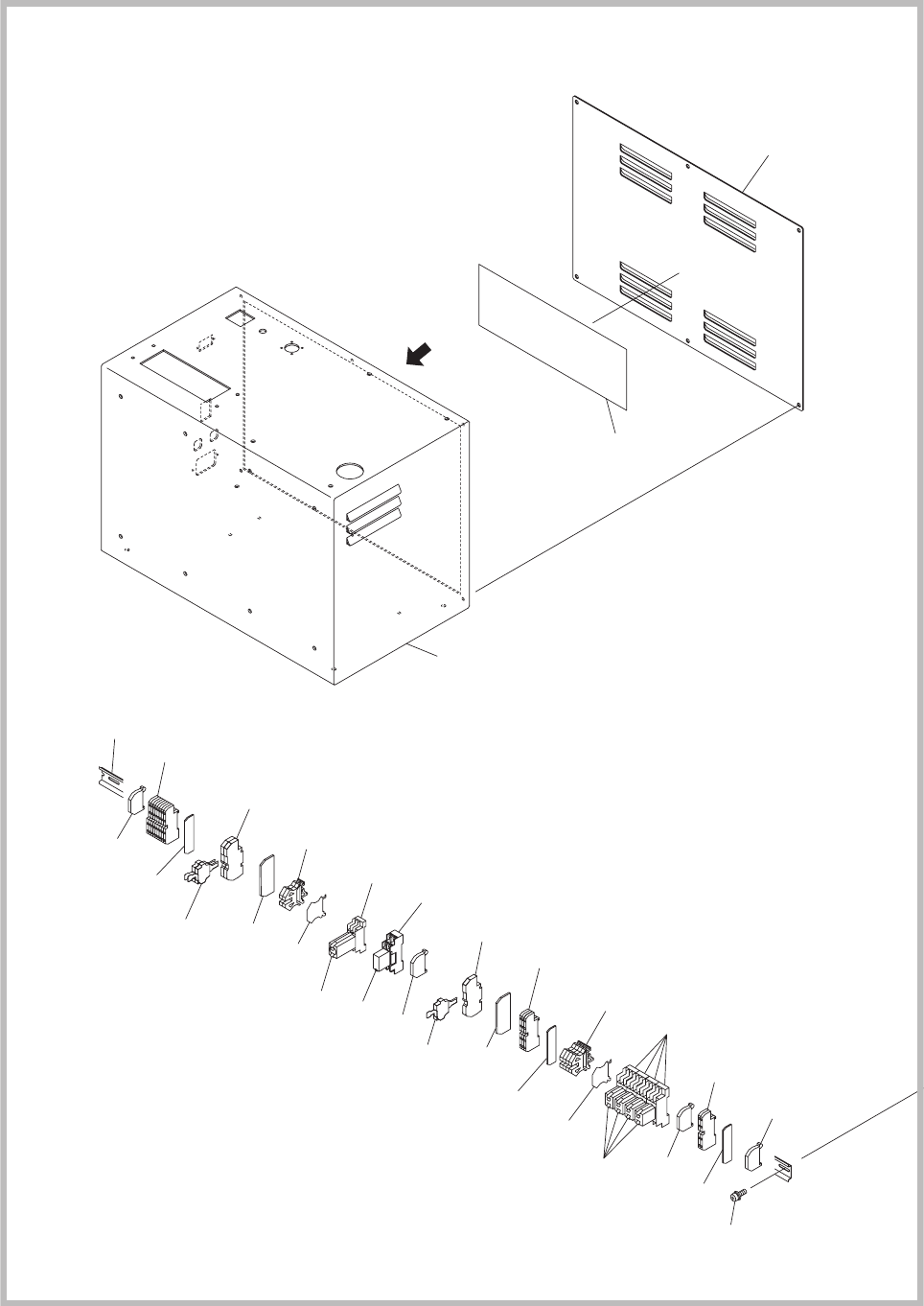

Fig. A1-3
電装ボックス
Electrical Box
1008-001
Fig. A1
カート電源ユニット
(GS-FC301)
CART POWER UNIT(GS-FC301)
235
B
See Fig.A1-2
Key No.109
202
211
212
213
234
233
226
214
228
215
VIEW "B"
222
247
219
220
224
221
223
225
202
218
216
229
217
230
231
232
217
217
217
243
264
243
247
244
245
241
263
265
246
243
264
241
241
250
251
254
255
259
257
249
250
251
249
227
262
261
261
261
261
242
242
242
252
252
253
258
256
See Fig.A1-4
Key No.359
See Fig.A1-4
Key No.358
See Fig.A1-4
Key No.364,365
202
202
246
265
243
248
244
245
216
