Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE Fig. A1 1008-001 Fig. A1-3 261 23N10027 BRACKET_WIRING 4 209570001 1-051 262 23N00101 RAIL_WIRING 1 209570001 1-052 263 0980A215 JUMPER 1 209570001 1-053 264 23N30519 ACCE…
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1008-001
Fig. A1-3
202 09570010 ASSY_NAME_PLATE 1 2095700013-002
211 0957A10L BOX 1 2095700011-001
212 0957A005 BOX_CONNECTOR 1 2095700011-002
213 0957A00H ILME_CONNECTOR 1 2095700011-003
214 221DB010 MACHINE_SCREW 2 2095700011-004
215 221AA089 ROHS_HEX-SCT 4 2095700011-005
216 23N30632 WIRING 7 2095700011-006
217 221DA053 MACHINE_SCREW 12 2095700011-007
218 0980A211 SURGE_PROTECTOR 1 2095700011-008
219 23K20102 ACCESSORY_CONN 1 2095700011-009
220 23K20128 ACCESSORY_CONN 1 2095700011-010
221 4S1L0011 SWITCH_SEESAW 1 2095700011-011
222 4J200036 FUSE_HOLDER 2 2095700011-012
223 4W202910 CORD 1 2095700011-013
224 221DA106 MACHINE_SCREW 2 2095700011-014
225 4F300083 FILTER_NOISE 1 2095700011-015
226 221DA207 MACHINE_SCREW 8 2095700011-016
227 4U200264 UNIT_POWER 1 2095700011-017
228 23K20101 ACCESSORY_CONN 1 2095700011-018
229 221DA052 MACHINE_SCREW 1 2095700011-019
230 221DA021 MACHINE_SCREW 5 2095700011-020
231 221HA004 WASHER 5 2095700011-021
232 221HA104 WASHER 5 2095700011-022
233 221DB004 MACHINE_SCREW 2 2095700011-023
234 0957A00Q GROMMET 1 2095700011-024
235 0957A10S PLATE 1 2095700011-025
241 4J320187 TERMINAL 13 2095700011-031
242 23N30612 ACCESS_WIRING 3 2095700011-032
243 23N30524 ACCESS_WIRING 1 2095700011-033
244 0980A214 ENDPLATE 2 2095700011-034
245 0914B30E PLUGGABLE_FUSE 3 2095700011-035
246 0980A213 TERMINAL 3 2095700011-036
247 4S300024 FUSE_250V_5A 4 2095700011-037
248 4S301008 FUSE 250V 3.15A 1 2095700011-038
249 4J320201 TERMINAL 6 2095700011-039
250 23N30629 ACCESS_WIRING 6 2095700011-040
251 0957A009 THERMISTOR 6 2095700011-041
252 23N30114 ACCESS_WIRING 2 2095700011-042
253 4S510048 TIMER 1 2095700011-043
254 4J120083 SOCKET 1 2095700011-044
255 23N10002 BRACKET_WIRING 1 2095700011-045
256 4S510057 TIMER 4 2095700011-046
257 4J120099 SOCKET 4 2095700011-047
258 4S200097 RELAY 1 2095700011-048
259 4J120082 SOCKET 1 2095700011-049
GS-FC301
Key No. PART No. PART NAME Q’ty
REMARKS
NOTE
Fig. A1
1008-001
Fig. A1-3
261 23N10027 BRACKET_WIRING 4 2095700011-051
262 23N00101 RAIL_WIRING 1 2095700011-052
263 0980A215 JUMPER 1 2095700011-053
264 23N30519 ACCESS_WIRING 5 2095700011-054
265 0949A01R NAME_PLATE 1 2095700011-055
GS-FC301

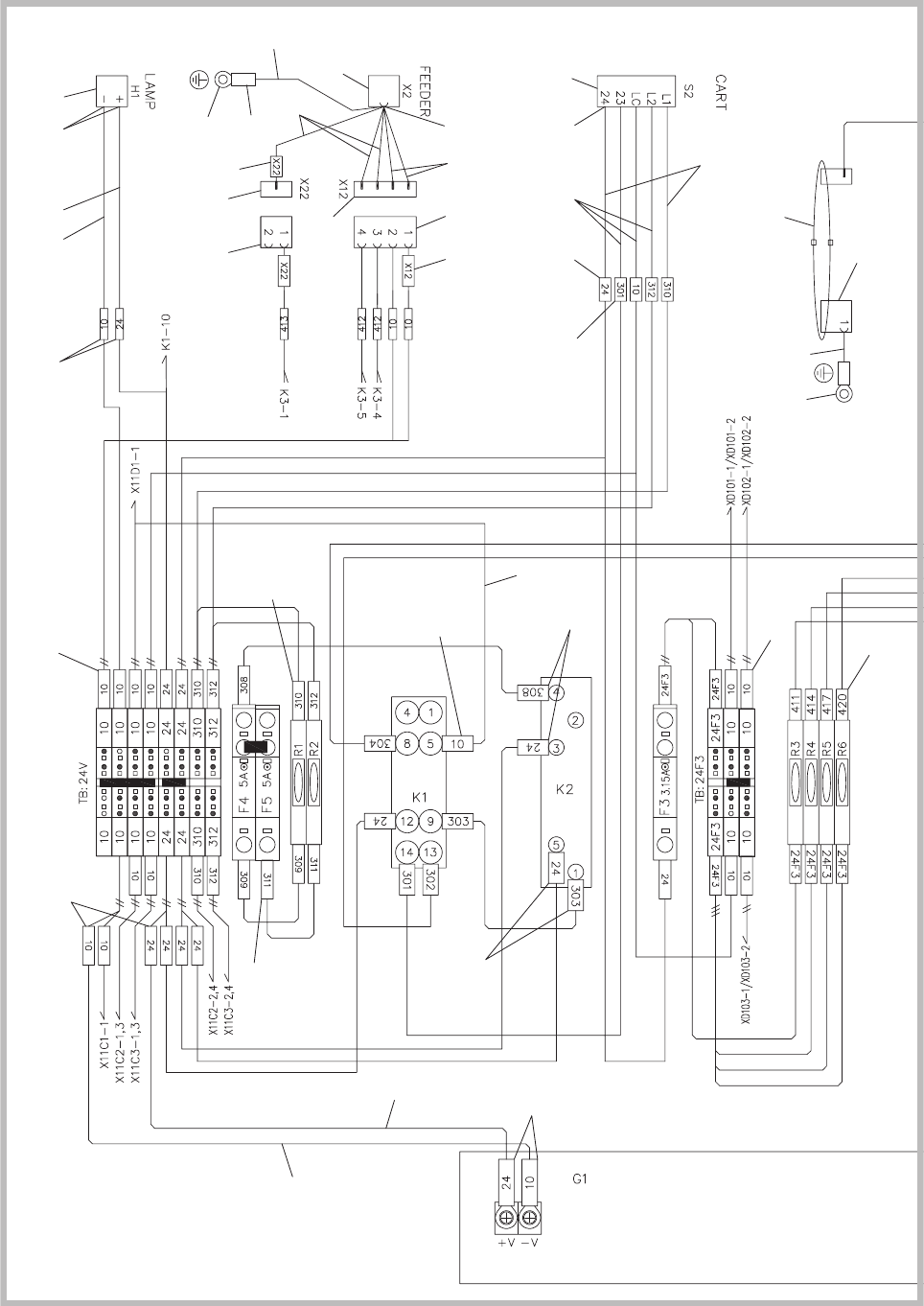

Fig. A1-4
電源ケーブル
Power Supply Cable
1008-001
Fig. A1
カート電源ユニット
(GS-FC301)
CART POWER UNIT(GS-FC301)
391
391
391
391
390
399
3A0
391
3B4
3B5
3B3
3B5
361
362
360
361
392
358
359
395
396
3C3
394
392
392
398
3C2
3C5
3B5
3A2
3C5
391
370
3C4
3C0
3A1
3C4
3C1
3C3
3C1
3C3
391
391
3B1
3B2
3B0
391
397
391
3C1
3B9
3C3
3C0
3C4
3B2
3B0
3B2
369
393
391
363
391
395
366
392
368
3B5
395
3B0
3B2
3B1
3B2
395
394
3B9
3B8
396
3B6
3C3
3B9
3C3
3B9
3C3
397
391
3B7
367
391
394
395
391
395
391
3C3
364
365
394
3B9
3A3
