3. Settings
3.1. Settings of the “history output of specified time” function
Click [SetUp] - [Software Setting] - [History] - [Detail History Setting].
• [The history is output at specified time] Check Box
Check the box if you specify outputting time of history files.
The default setting is “unchecked state”, in this case, the history file is outputted at 0:00.
When the check box is “checked state”, 0:00 o'clock output is not executed.
• [Specified time] Text Box
Set a time (from 0:00 to 23:59) to output history files.
• [After the history output, the unit logs are reset] Check Box
It is the same operation as the tapping [Unit Log] – [(each history)] – [Operator] - [Reset] button
after the history file is outputted.
Check the box if you want to reset [Unit Log] after outputting the history.
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50042
4/6
4. Details
4.1. Output target of the history file
The output target of the history files are as follows.
Mounter
[MIS]-----Error log, Board log, Program log, Setup log
[Unit Log]----- Head, Nozzle, Feeder, Conveyor, Parts, Feeder ID
Printer
[MIS]-----Error log, Board log, Program log, Setup log
[Unit Log]----- Conveyor, Squeegee,Mask,Cleaner
(The [MIS by Board] history is not included in this function.)
4.2. Reset operation
[Unit Log] is reset after the history is saved.

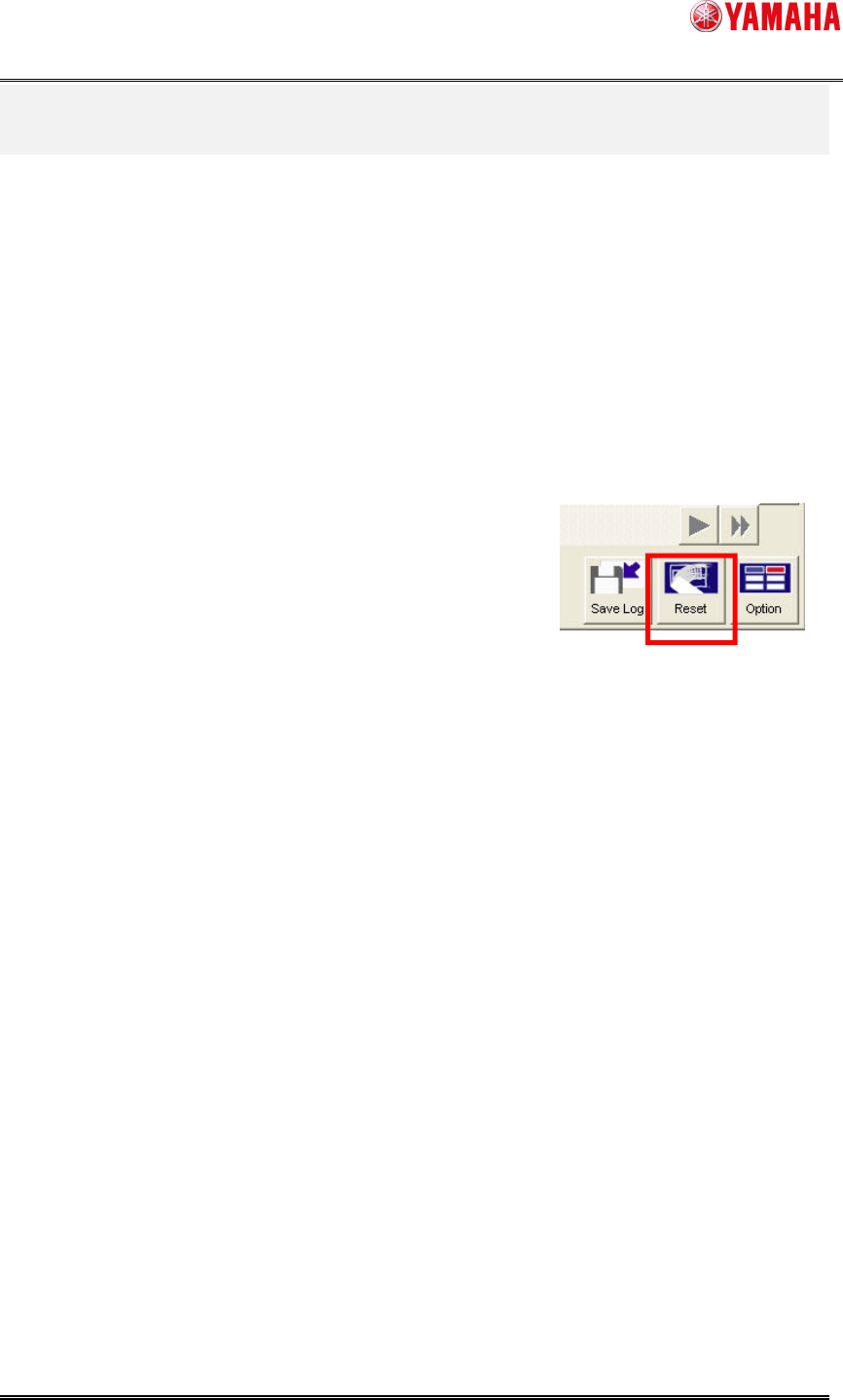

It is possible to reset it by tapping the [reset] button under the history screen as well.
After the operation is completed, [Ea12779: The auto reset of History data was executed.] is
recorded in [MIS] - [Log].
4.2.1. Reset target of the History
The following screens of [Unit Log] are reset.
Mounter
"Operator" information on Head, Nozzle, Feeder, Conveyor and Feeder ID.
"Current data" information on parts history.
Printer
"Operator" information on , Conveyor, Squeegee,Mask, and Cleaner.
"Current data" information on parts history.
4.2.2. Notice of reset operation
When the machine is turned off in the specified time, the reset is done when the machine started
next.
(The data until the day before is saved at the machine turn-off.)
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT50042
5/6
4.3. Saving history to the server folder
When the server folder is specified on [Software Setting] - [History] - [MIS setting] or [Unit log
setting], the history file is saved in an each day file.
4.3.1. Common items of the each history
The history file is saved as the date character is added to the each history item name.
This rule is applied to any timing of saving the history.
item name + date . csv
Fixed character
It is decided according to the judgment standard of
the each history. (Refer to 4.3.2 decision items of
the each history)
It is decided according to kinds of the history.
Mounter
[MIS] Item name [Unit Log] Item name
Kinds of history
Item name
Error log ErrLog
Board log PcbLog
Program log LotLog
Setup log SetupLog_Yxxxxx_*1
Printer
[MIS] Item name [Unit Log] Item name
*1: The machine serial number is replaced in xxxxx.
Kinds of history
Item name
Head Head
Nozzle Nozl
Feeder Feed
Conveyor Conv
Parts Part
FeederID FeederIDLog_Yxxxxx_ *1
Kinds of history
Item name
Error log ErrLog
Board log PcbLog
Program log LotLog
Setup log PrinterSetupLog_Yxxxxx_*1
Kinds of history Item name
Conveyor YvpConveyor
Squeegee YvpSqueegee
Mask YvpMask
Cleaner YvpCleaner
