SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50153
2/7
1. Introduction
The target model and the version are as follows.
Table 1 Target model and Target version
Item Object Remarks
Target model YS Series Mounter
YG300, YG12 Series Mounter
Target version V3.11STD R1.000 or later
2. Summary
When vacuum check of after mounting, there was a possibility of remaining parts (no
mounting).
The following function mounting position was displayed and to check mounting state was
been added
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50153
3/7
3. Details of operation
3.1. Detection of error
Vacuum check is after mounting. When larger vacuum than setup is detected,
[Ea3270: BRING BACK ERROR (AFTER MOUNT)] is displayed. (Fig 3.1)
Fig 3.1
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50153
4/7

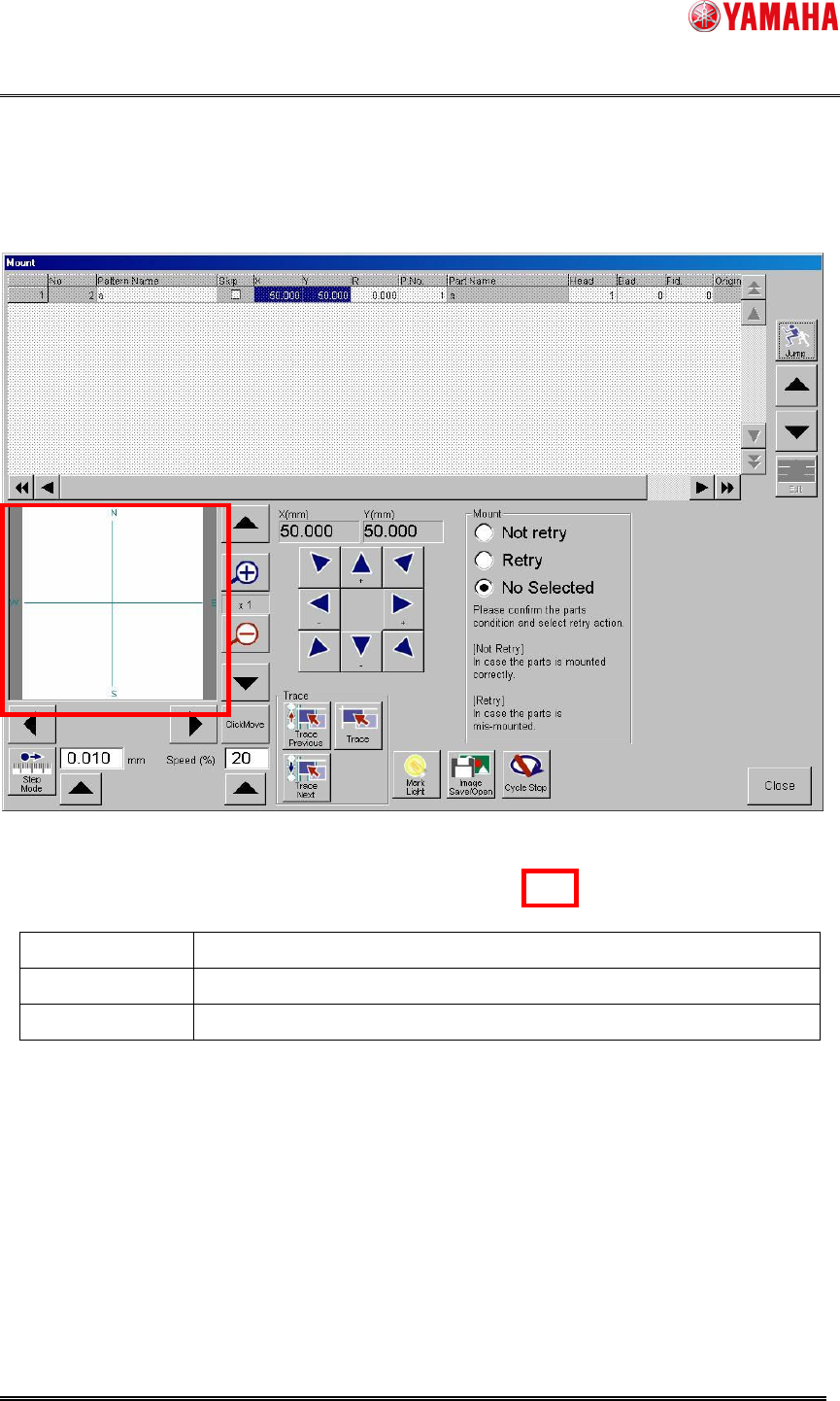

3.2. Trace of a mounting position
After the ERROR CLEAR of the preceding clause, it moves mounting position and displays
mounting dialog. (Fig 3.2)
The Mounting information judged to be a remaining parts error is displayed on a grid.
Fig 3.2
Please confirm trace vision condition and select retry action.
Not retry The judged position does not retry as mounting.
Retry The judged position does retry as no mounting.
No selected *1 Nothing is judged.
*1 Added from YS Series Mounter, YG300 YG12 Series Mounter.
(Default [not retry] in YG series.)
When there is plurality mounting information.
- Select with a [Trace Next] button.
- Select with a [Trace Previous] button.
- [UP][DOWN] mounting information select and [Trace] button.
Execute select with any of mounting information, Please judge it [Retry] or [Not retry].
Please judge of [Retry] or [Not retry] all the mounting information currently displayed.
