SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50153
5/7
3.3. End of a judge
When closing mounting dialog and mounting information [No selected] remains,
the display of [Ea3271: BRING BACK PARTS RETRY SETTING ERROR] (Fig 3.3)
Fig 3.3
Please judge [Retry] or [Not retry] for mounting information [Not selected].
Please close dialog once again.
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50153
6/7
3.4. Check after mounting
When mounting information judged to be [Not retry], it after complete mounting and display
an [Ea947 STOP AUTO RUNNING WITH CYCLE STOP] (Fig 3.4.1)
Fig 3.4.1
SMT Software Engineering Group
IM Operations
YAMAHA MOTOR CO., LTD
MDOC-SOFT50153
7/7

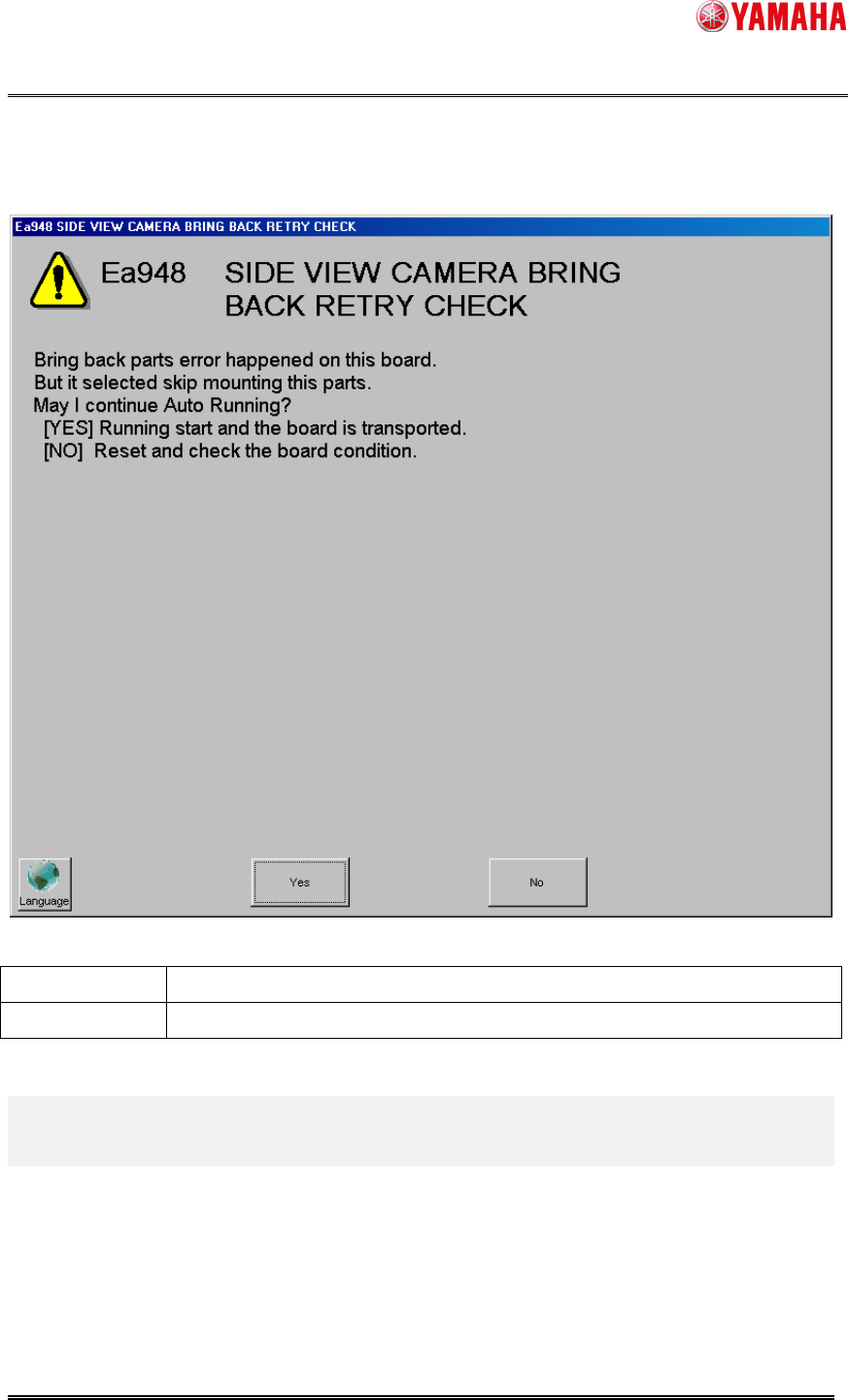

[Ea948 SIDE VIEW CAMERA BRING BACK RETRY CHECK] is display after displaying
Ea947 dialog (Fig 3.4.2)
Fig 3.4.2
YES Running start and board transfer
NO Reset and check mounting state
4. Limitations
There is no limitation.
