MACHINE P C PC ENCLOSURE Ch apte r Issue 4, Jun 18 Tech nical Ref erenc e Ma nual 7.3 PC ENCLOSURE Mother boa rd Syste m This c ar d pr ovid es th e ma ste r con trol of all mac hine f un cti ons. I t hou ses the Cen tra…
MACHINE PC
ELECTRICAL SCHEMATIC
7.2 Technical Reference Manual Chapter Issue 4, Jun 18
ELECTRICAL SCHEMATIC
MACHINE PC
PC ENCLOSURE
Chapter Issue 4, Jun 18 Technical Reference Manual 7.3
PC ENCLOSURE
Motherboard
System
This card provides the master control of all machine functions. It houses the
Central Processing Unit (CPU) which is an Intel® Pentium® Dual Core proces-
sor G3420 3.2GHz.
The main features of this card are:
• VGA Video Output DVI and HDMI
• 8 USB Ports
• Ethernet 10/100Base-T output via an RJ45 connector to LAN1 Host
Comms
• LAN2 Host Comms - (Not Connected)
• EIDE HDD fixed disk controllers (DVD ROM)
• 6 SATA HDD Controllers (Not Shown)
• 2 PCI Bus Interface
• Bi-directional Parallel Printer Port (Not Shown)
• RS232 Interface (COM1) - (Not Connected)
• RS232 Interface (COM2) - (Not Connected)
• CMOS RAM with Lithium battery backup (Not Shown)
• 6 Pin Mini Keyboard Connector - (Not Used)
• 4 DDR2 DIMM Sockets (RAM) (Not Shown)
• Line Out Connector - (Not Used)
• Line In Connector - (Not Used)
• Mic In - (Not Used)
CMOS Settings The CMOS settings are password protected to prevent any settings being
changed.
It is highly unlikely that the CMOS settings could be responsible for PC issues
however, if the settings are strongly suspected, contact the CSG Helpdesk.
MACHINE PC
PCI INTERFACE CARD
7.4 Technical Reference Manual Chapter Issue 4, Jun 18

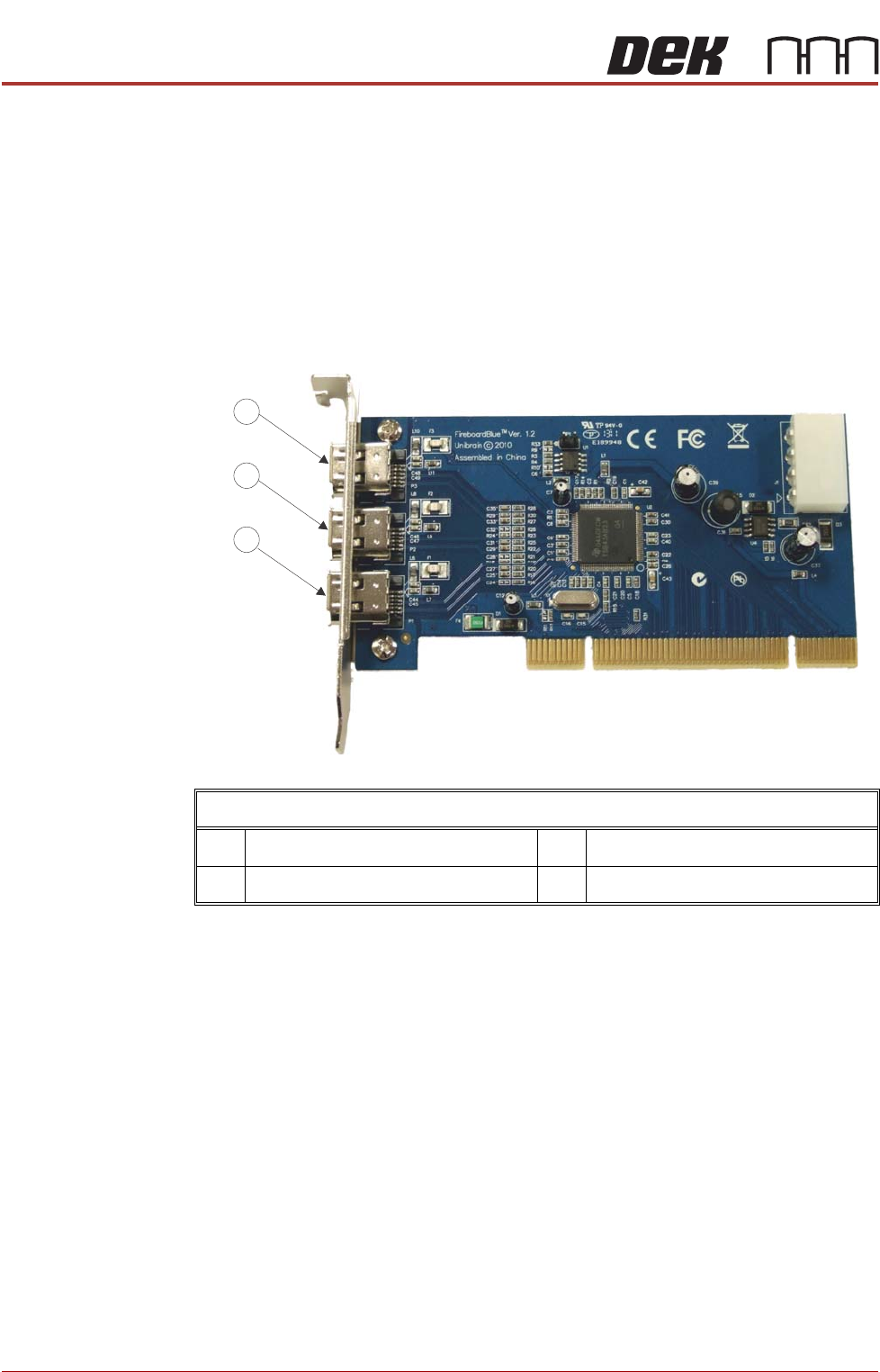

PCI INTERFACE CARD
The Unibrain Fireboard-Blue
TM
400 host adaptor is a PCI interface board that
provide the PC with IEEE-1394 functions. The features include:
• IEEE - 1394 Compliance
• Up to 400 Megabits per second
• 3 External Connectors
• Open Architecture API (OHCI Compliant)
• Compatibility Assurance
IEEE 1394a PCI Interface Card
1
Port 1
3Port 3
2
Port 2
