MACHINE PC PCI I NT ERFACE CARD 7.4 Tech nical Ref erenc e Ma nual Ch apte r Issue 4 , Jun 18 PCI INTERF ACE CARD The Unib rai n Fire bo ard -B lue TM 400 ho s t ada ptor is a PC I int erfac e bo ard t hat prov ide the P…
MACHINE PC
PC ENCLOSURE
Chapter Issue 4, Jun 18 Technical Reference Manual 7.3
PC ENCLOSURE
Motherboard
System
This card provides the master control of all machine functions. It houses the
Central Processing Unit (CPU) which is an Intel® Pentium® Dual Core proces-
sor G3420 3.2GHz.
The main features of this card are:
• VGA Video Output DVI and HDMI
• 8 USB Ports
• Ethernet 10/100Base-T output via an RJ45 connector to LAN1 Host
Comms
• LAN2 Host Comms - (Not Connected)
• EIDE HDD fixed disk controllers (DVD ROM)
• 6 SATA HDD Controllers (Not Shown)
• 2 PCI Bus Interface
• Bi-directional Parallel Printer Port (Not Shown)
• RS232 Interface (COM1) - (Not Connected)
• RS232 Interface (COM2) - (Not Connected)
• CMOS RAM with Lithium battery backup (Not Shown)
• 6 Pin Mini Keyboard Connector - (Not Used)
• 4 DDR2 DIMM Sockets (RAM) (Not Shown)
• Line Out Connector - (Not Used)
• Line In Connector - (Not Used)
• Mic In - (Not Used)
CMOS Settings The CMOS settings are password protected to prevent any settings being
changed.
It is highly unlikely that the CMOS settings could be responsible for PC issues
however, if the settings are strongly suspected, contact the CSG Helpdesk.
MACHINE PC
PCI INTERFACE CARD
7.4 Technical Reference Manual Chapter Issue 4, Jun 18
PCI INTERFACE CARD
The Unibrain Fireboard-Blue
TM
400 host adaptor is a PCI interface board that
provide the PC with IEEE-1394 functions. The features include:
• IEEE - 1394 Compliance
• Up to 400 Megabits per second
• 3 External Connectors
• Open Architecture API (OHCI Compliant)
• Compatibility Assurance
IEEE 1394a PCI Interface Card
1
Port 1
3Port 3
2
Port 2
MACHINE PC
REAR PANEL CONNECTORS
Chapter Issue 4, Jun 18 Technical Reference Manual 7.5
REAR PANEL CONNECTORS

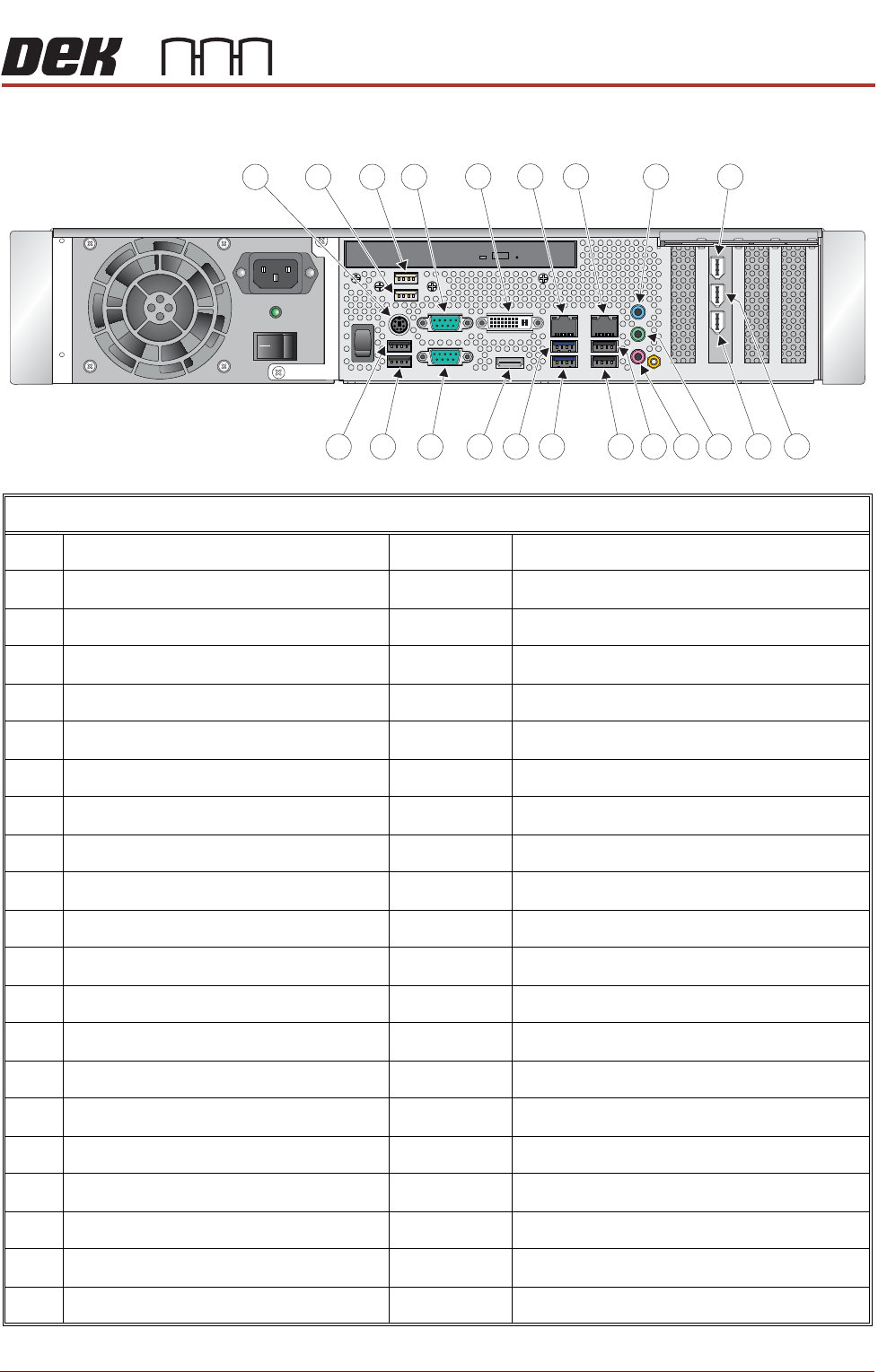

PC Enclosure Connector Panel
1 Jack Socket (Blue) 3SK49 Line In
2 1394a PCI Interface Card - Port 1 3SK54 Not Used
3 1394a PCI Interface Card - Port 2 3SK55 Digital Camera
4 1394a PCI Interface Card - Port 3 3SK53 Not Used
5 Jack Socket (Green) 3SK47 Line Out - Not Used
6 Jack Socket (Pink) 3SK48 MIC Out - Not Used
7 USB 2.0 3SK59 USB8 - USB/RS232 Converter
8 USB 2.0 3SK35 USB4 - NextMove ES
9 USB 3.0 3SK57 USB1 - USB Hub
10 USB 3.0 3SK34 USB1 - Not Used
11 HDMI 3SK63 HDMI Monitor (optional)
12 9 Way D Type Plug 3PL03a COM1 RS232
13 USB 2.0 3SK37 USB 6 M37 PSU
14 USB 2.0 3SK36 USB 3 Dongle
15 PS2 3SK04 Keyboard - Not Used
16 USB 2.0 3SK58 USB 7 Keyboard/Mouse
17 USB 2.0 3SK56 USB5 - Covers RH USB Connector
18 9 Way D Type 3PL03b COM 2 RS232 - Not Used
19 DVI 3SK05 DVI-I Monitor (SVGA Adaptor supplied with PC)
20
RJ 45
3SK02a
LAN 1 Host Comms
21
RJ 45
3SK02b
LAN 2 Host Comms - Not Used
