MACHINE PC
REAR PANEL CONNECTORS
7.6 Technical Reference Manual Chapter Issue 4, Jun 18

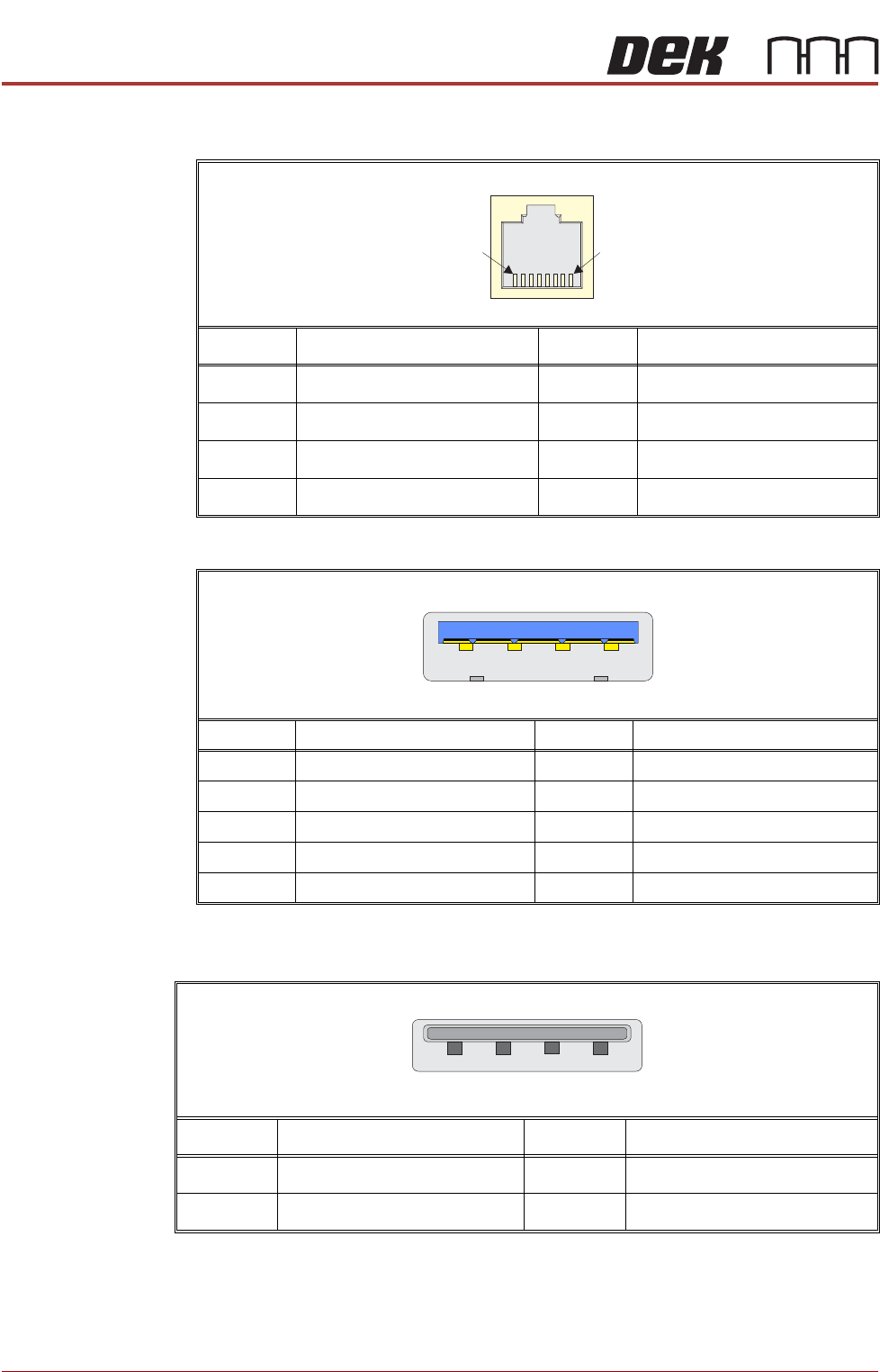

Connector Pin Information
LAN Host Comms (3SK02)
USB 1 - USB 2
USB 3 - USB 8
Pin No. Signal Pin No. Signal
1 +ve Transmit 5 N/C
2 -ve Transmit 6 -ve Receive
3 +ve Receive 7 N/C
4N/C 8N/C
Pin No. Signal Pin No. Signal
1 V Bus 6 StdA_SSRX/TX+
2 Data - 7 GND_DRAIN
3 Data + 8 StdA_SSTX/RX-
4 GND 9 StdA_SSTX/RX+
5 StdA_SSRX/TX-
Pin No. Signal Pin No. Signal
1V Bus 3Data +
2Data - 4GND
1
8
RJ45
1 2
3
4
USB Type A Socket3.0
9 8 765
1 2
3
4
USB Type A Socket
MACHINE PC
REAR PANEL CONNECTORS
Chapter Issue 4, Jun 18 Technical Reference Manual 7.7

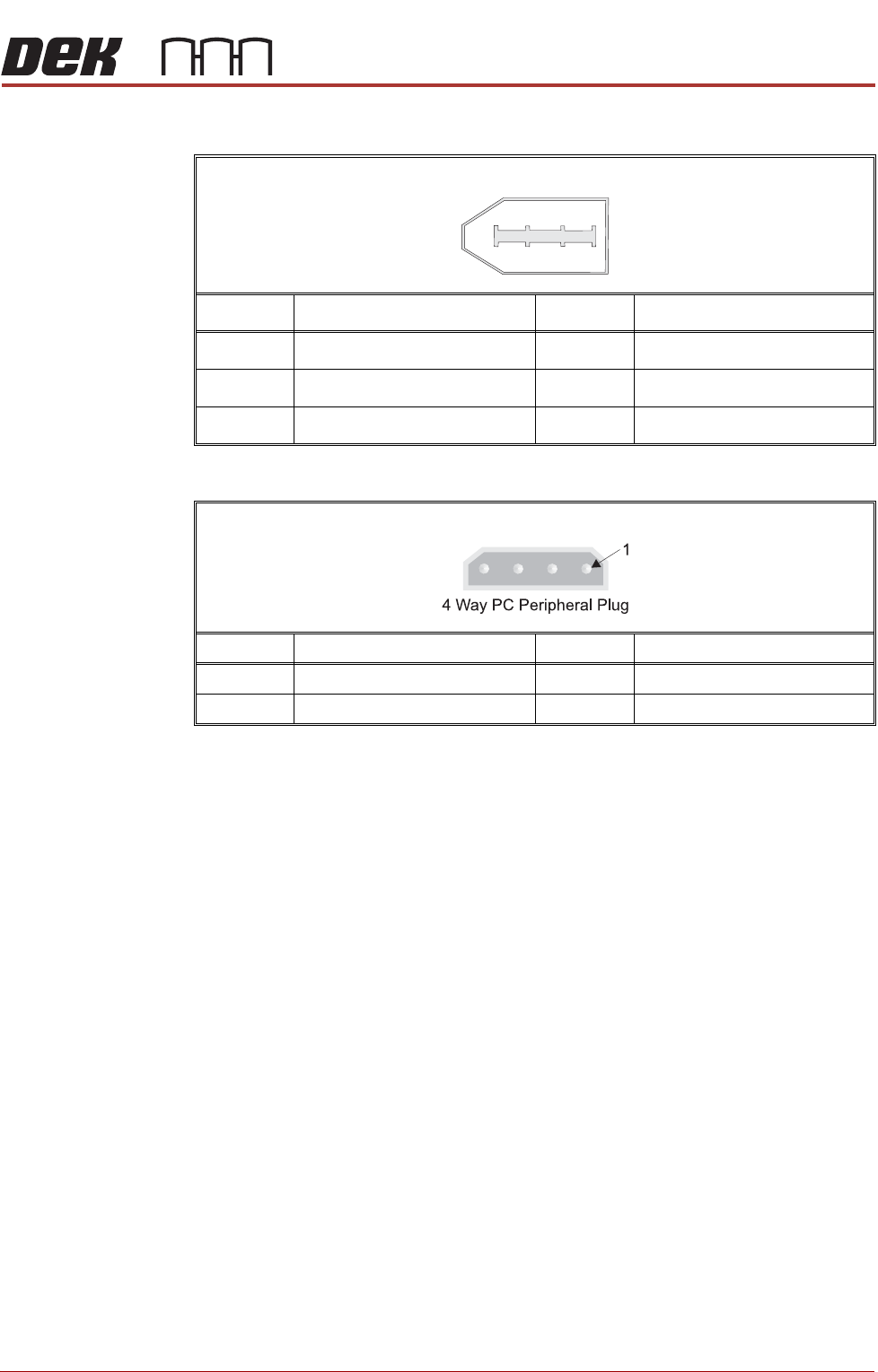

PCI Interface Card (Port 1 - Port 3)
1394a PCI Interface Card Power Connector
Pin No. Signal Pin No. Signal
1 Power 4 Twisted Pair B+
2 Ground 5 Twisted Pair A-
3 Twisted Pair B- 6 Twisted Pair A+
Pin No. Signal Pin No. Signal
1 Power (+12V) 3 Ground
2 Ground 4 Power (+5V)
1
5
2
6
3
4
MACHINE PC
PERIPHERAL DEVICES
7.8 Technical Reference Manual Chapter Issue 4, Jun 18
PERIPHERAL DEVICES
DVD ROM Drive The DVD ROM Drive is located at the top front of the enclosure and is used for
installing machine software.
