AirJet ® 954 CRD TECHNICAL DATA SHEET 3 www.dct.cleaning C CLEANING RINSING DRYING R D Application name Recommended application Recommended temperature Total cleaning process time Capacity per 8 hours Reow and soldering…

100%1 / 8
AirJet
®
954 CRD 
TECHNICAL DATA SHEET
2
www.dct.cleaning
GENERAL INFORMATION
The AirJet
®
cleaning systems represent unique air-
bubbling technology developed and manufactured
by DCT.
Air-bubbling technology machines are developed
for gentle yet highly effi cient maintenance cleaning
of re ow and wave soldering machines such
as soldering frames,  lters, heat exchangers, etc.
The AirJet
®
“Piano” can also be off ered for the removal
of conformal coatings. AirJet
®
cleaning systems are available
in several sizes and with diff erent levels of automation of the
cleaning process.
AirJet
®
954 CRD “Piano” including 100% closed loop with
processes of cleaning, rinsing, and drying technologies.
All processes are fully automated and take place in one
process chamber, under which 2 storage tanks are placed,
one with cleaning liquid and the other with rinsing liquid.
The operator places the parts to be cleaned in the
process chamber in the basket, and the cleaning system
automatically performs the cleaning, rinsing and drying
process.
AirJet
®
954 CRD “Piano” is designed for the maintenance
cleaning of re ow ovens and wave soldering machines or
to remove cured conformal coating from coating frames,
coating machine parts or coated PBCs for repair and
subsequent coating.
Depending on your cleaning requirements,
the DCT project manager, in collaboration
with a local distributor, will advise you
on a suitable water-based cleaning fl uid
and the correct setup of the entire process.
AirJet
®
954 CRD 
TECHNICAL DATA SHEET
3
www.dct.cleaning
C
CLEANING
RINSING
DRYING
R
D
Application
name
Recommended
application
Recommended
temperature
Total cleaning
process time
Capacity
per 8 hours
Reow and soldering parts
30 – 50°C 86 – 122 °F 45 min. 144 **
Conformal coating removing 40 – 55°C 103 – 131°F 45 min. 980* / 144 ***
3 INDIVIDUAL PROCESSES
CLEANING PARAMETRES
highly recommended recommended applicable
* PCB eurocards / per 8 hours (calculated for dimension of 100 x 160 mm / 3.94 x 6.3 in)
* * Parts in soldering palette / per 8 hours (320 x 500 x 50 mm / 12,6 x 19,7 x 1,97 in)
* * * Stencils, pumpprints larger than 736 x 736 mm / 29 x 29 in
LEGEND:
R
D
C
AirJet
®
954 CRD 
TECHNICAL DATA SHEET
4
www.dct.cleaning
Dimensions (w x l x h) 2350x 1140 x 2150 mm 92.5 x 44.9 x 84.6 in
Weight 630 kg 1388 lbs
Ø energy consumption per cycle 1,65 kWh 1.65 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 gal – 0.08 gal
Compressed air consumption per cycle 83 l / 5 Bar 21,93 gal / 72.5 PSI
Max. dimensions of the cleaned parts 870 x 440 x 320 mm 34,2 x 17,3 x 12,6 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 225 l 59,44 gal

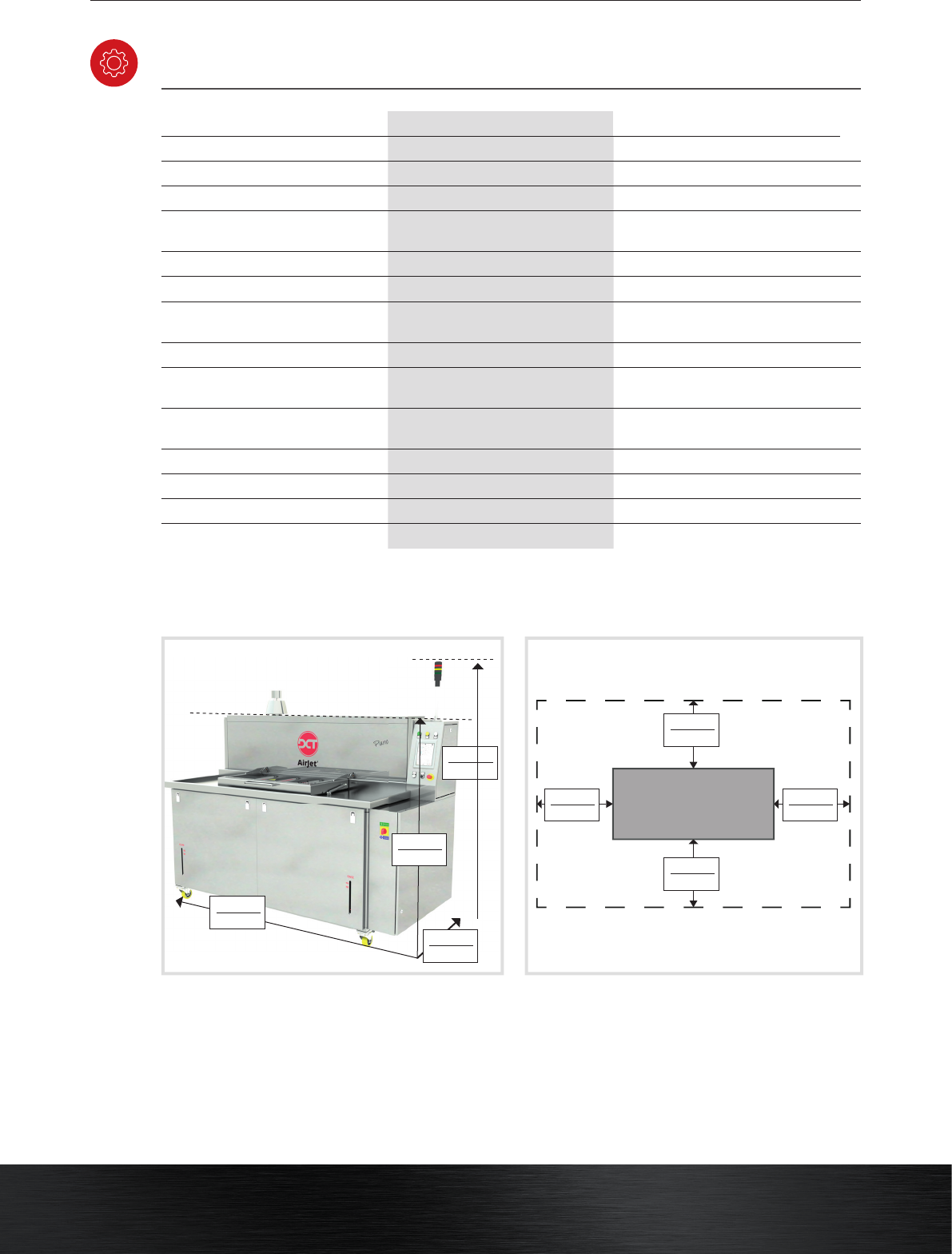

TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
2350 mm
92.5 in
1710 mm
67.3 in
1140 mm
44.9 in
2150 mm
84.6 in
metric units imperial units
