23
Component Feeding

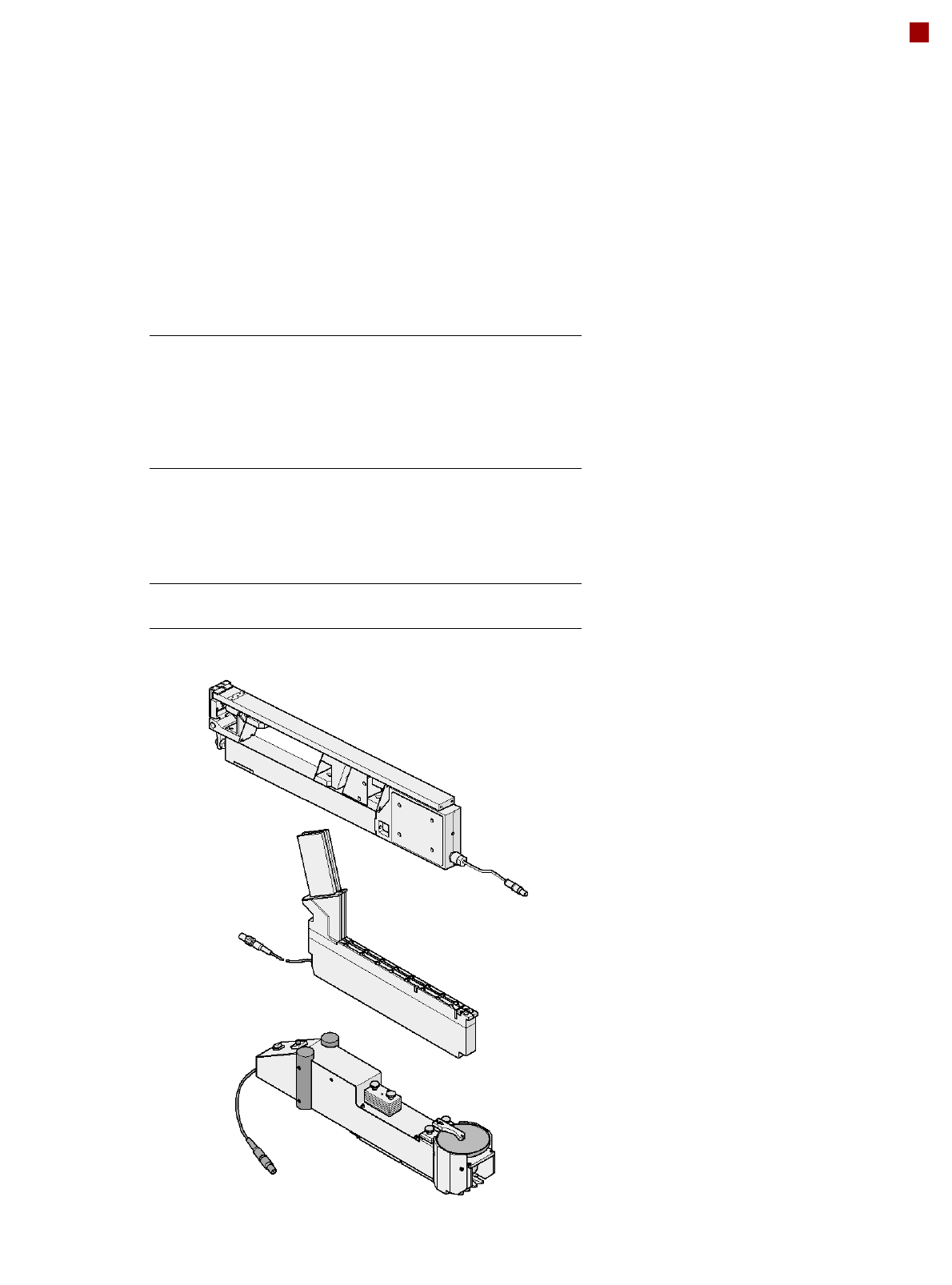

Alternative SIPLACE Feeder Modules
Technical data
Bulk case feeder modules
a
packaging form
feeding rails
Location
Bulk case
Chip 0402 component height:
0.5 mm
Chip 0603 component height:
0.8 mm
1
Linear vibratory feeder, type 3
Packaging form
Number of tracks and width
Location
Stick steel magazines
3 x 9.5 mm
2 x 15 mm
1 x 30 mm
1
Dip module takes up 3 locations of a
3 x 8 mm S feeder module
a) Fiducial for feeder module position recognition
Description
The SIPLACE bulk case
feeder module processes
bulk cases on two tracks. It
feeds rectangular and round,
passive components. The
PCB magazines (bulk cases)
are simply replaced for refill-
ing - without stopping the
machine.
The module essentially con-
sists of the basic element
plus two feeder rails and
PCB magazines to suit the
component type and height.
The components are sepa-
rated and fed along the rails
by compressed air.
The principle of the station-
ary component table has
proven its worth, even when
bulk cases are used: the
vibrations that can occur with
other placement machine
concepts can have a highly
detrimental effect on the
component quality due to
abrasion, for example.
Even with stick magazines,
the stationary component
supply has significant advan-
tages: the universal vibratory
stick feeder can be topped up
during placement.
The DIP module is suitable
for dip-fluxing flip-chips,
CSPs (chip-scale/size pack-
ages) and for wetting flip-chip
bumps with isotropic, con-
ductive adhesive.
24
Component Feeding
Dummy Feeder Modules
The following dummy feeder module variants are available for
component changeover tables:
SIPLACE dummy feeder module for 1 location
SIPLACE dummy feeder module for 6 to 10 locations
SIPLACE dummy feeder module for 11 to 20 locations
Danger
To ensure that your
SIPLACE placement
machine runs safely, a
feeder must be assigned to
every location on the compo-
nent changeover table. If you
do not have enough feeder
modules, then you should
use dummy feeder modules
as space holders.
Dummy feeder module for 1 location
Dummy feeder module for
6 - 10 locations
Dummy feeder module for
11 - 20 locations
25
Component Feeding
Waffle-Pack Tray Holder
Description
The waffle-pack tray holder
is a device for holding
JEDEC trays used to supply
components. The holder is
placed on the component
table like a feeder module
and the waffle-pack trays are
changed manually.
The tray holder set-up is
recommended if there are
just a few component types
to be placed from a waffle-
pack tray.
Waffle-pack tray holder
Technical data
Holder for large waffle-pack tray
Dimensions LxWxH 425 x 264 x 113 mm³
Locations filled on the
component table
9
Possible positions Location 1
Range of placement heads P&P, C&P6, C&P12
Holder for small waffle-pack tray
Dimensions LxWxH 425 x 140 x 113 mm³
Locations filled on the compo-
nent table
5
Possible positions Location 1
Range of placement heads P&P, C&P6, C&P12
Max. waffle-pack tray height
including component
C&P12
C&P6
P&P
12.5 mm
12.5 mm
28.5 mm
