24
Component Feeding
Dummy Feeder Modules
The following dummy feeder module variants are available for
component changeover tables:
SIPLACE dummy feeder module for 1 location
SIPLACE dummy feeder module for 6 to 10 locations
SIPLACE dummy feeder module for 11 to 20 locations
Danger
To ensure that your
SIPLACE placement
machine runs safely, a
feeder must be assigned to
every location on the compo-
nent changeover table. If you
do not have enough feeder
modules, then you should
use dummy feeder modules
as space holders.

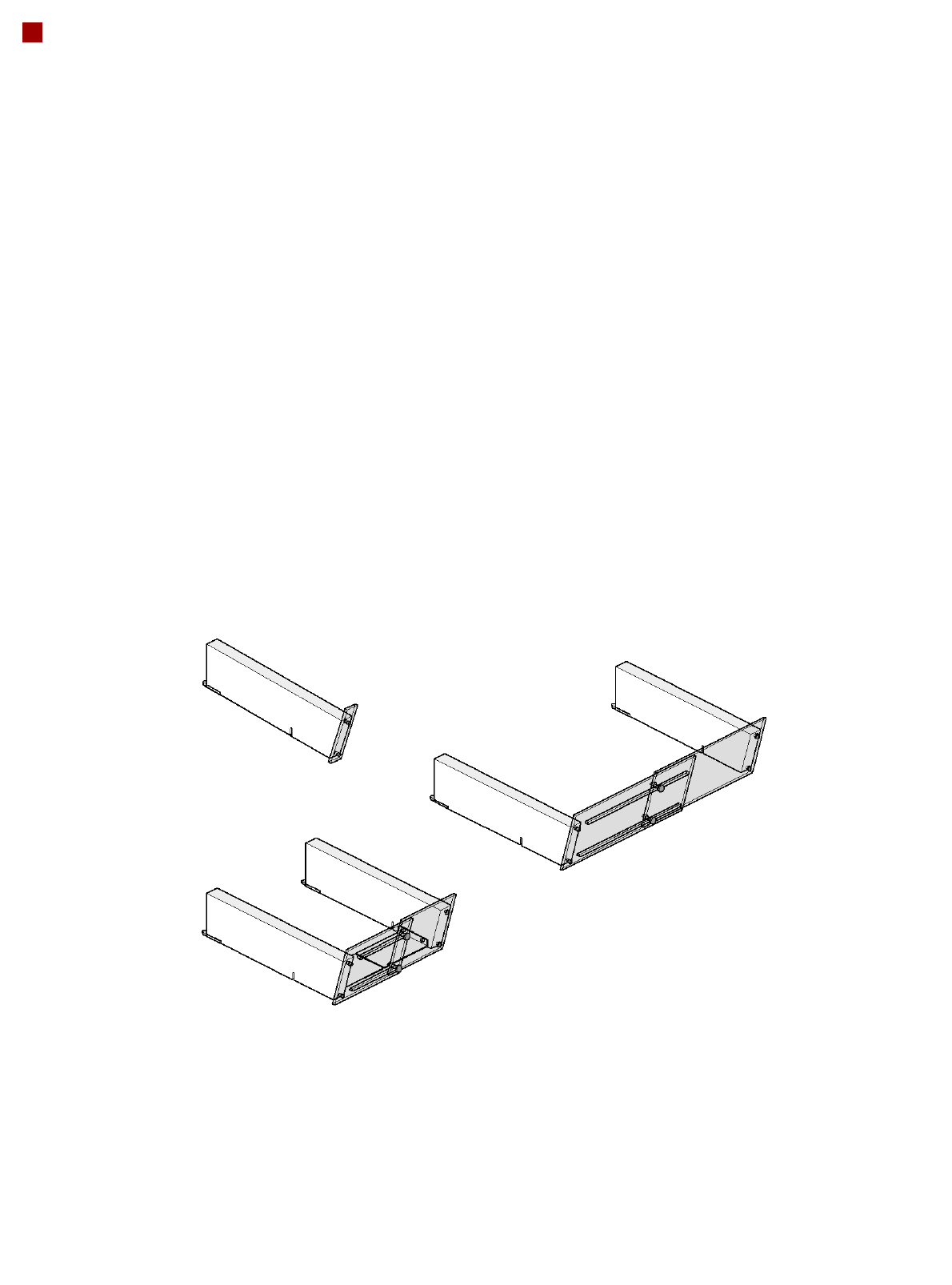

Dummy feeder module for 1 location
Dummy feeder module for
6 - 10 locations
Dummy feeder module for
11 - 20 locations
25
Component Feeding
Waffle-Pack Tray Holder
Description
The waffle-pack tray holder
is a device for holding
JEDEC trays used to supply
components. The holder is
placed on the component
table like a feeder module
and the waffle-pack trays are
changed manually.
The tray holder set-up is
recommended if there are
just a few component types
to be placed from a waffle-
pack tray.

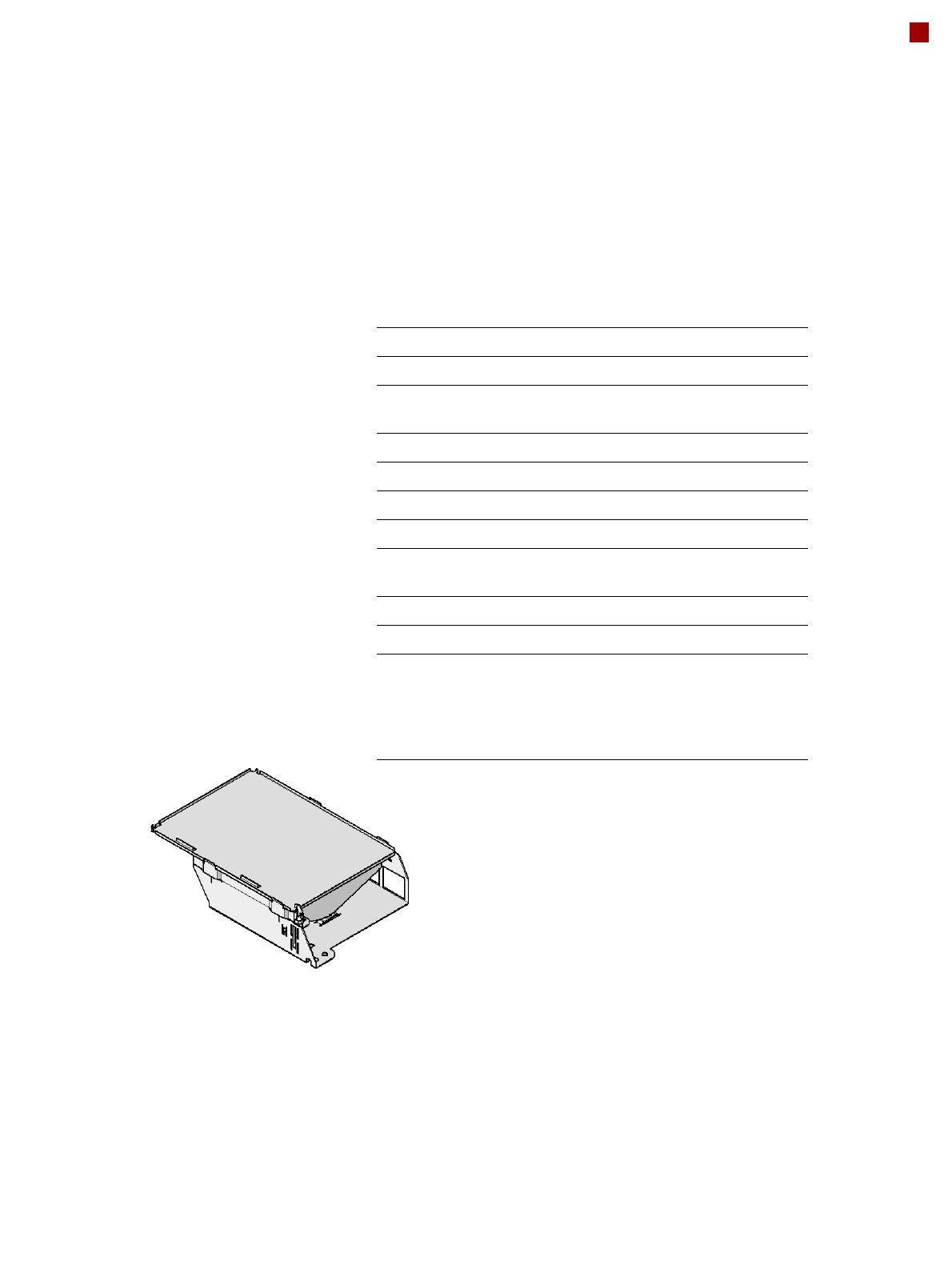

Waffle-pack tray holder
Technical data
Holder for large waffle-pack tray
Dimensions LxWxH 425 x 264 x 113 mm³
Locations filled on the
component table
9
Possible positions Location 1
Range of placement heads P&P, C&P6, C&P12
Holder for small waffle-pack tray
Dimensions LxWxH 425 x 140 x 113 mm³
Locations filled on the compo-
nent table
5
Possible positions Location 1
Range of placement heads P&P, C&P6, C&P12
Max. waffle-pack tray height
including component
C&P12
C&P6
P&P
12.5 mm
12.5 mm
28.5 mm
26
Component Feeding
Waffle-Pack Changer
Description
If the placement process
requires components to be
supplied in several waffle-
pack trays, we recommend
an automatic magazine
change using a waffle-pack
changer (WPC). The WPC
set-up is precisely matched
to the placement sequence
in order to optimize the tim-
ings and distances traveled.
One bin with component
trays moves in the vertical
direction until the desired
magazine is within the range
of the feed axis.
The horizontal feed axis
transports the tray from the
tray supply to within the
range of the placement head.
The first magazine is made
available as soon as a PCB
moves onto the PCB con-
veyor, and valid panel and
set-up data is available. All
other magazine changes are
carried out time-neutrally
during the placement pro-
cess. Defective components
are returned to the original
tray.
The waffle-pack changer can
be docked into location 1 on
the D1 machine.
It does not take up the entire
width of a location. The com-
ponent table integrated into
the upgrade kit has a capac-
ity of 5 locations for feeder
modules.

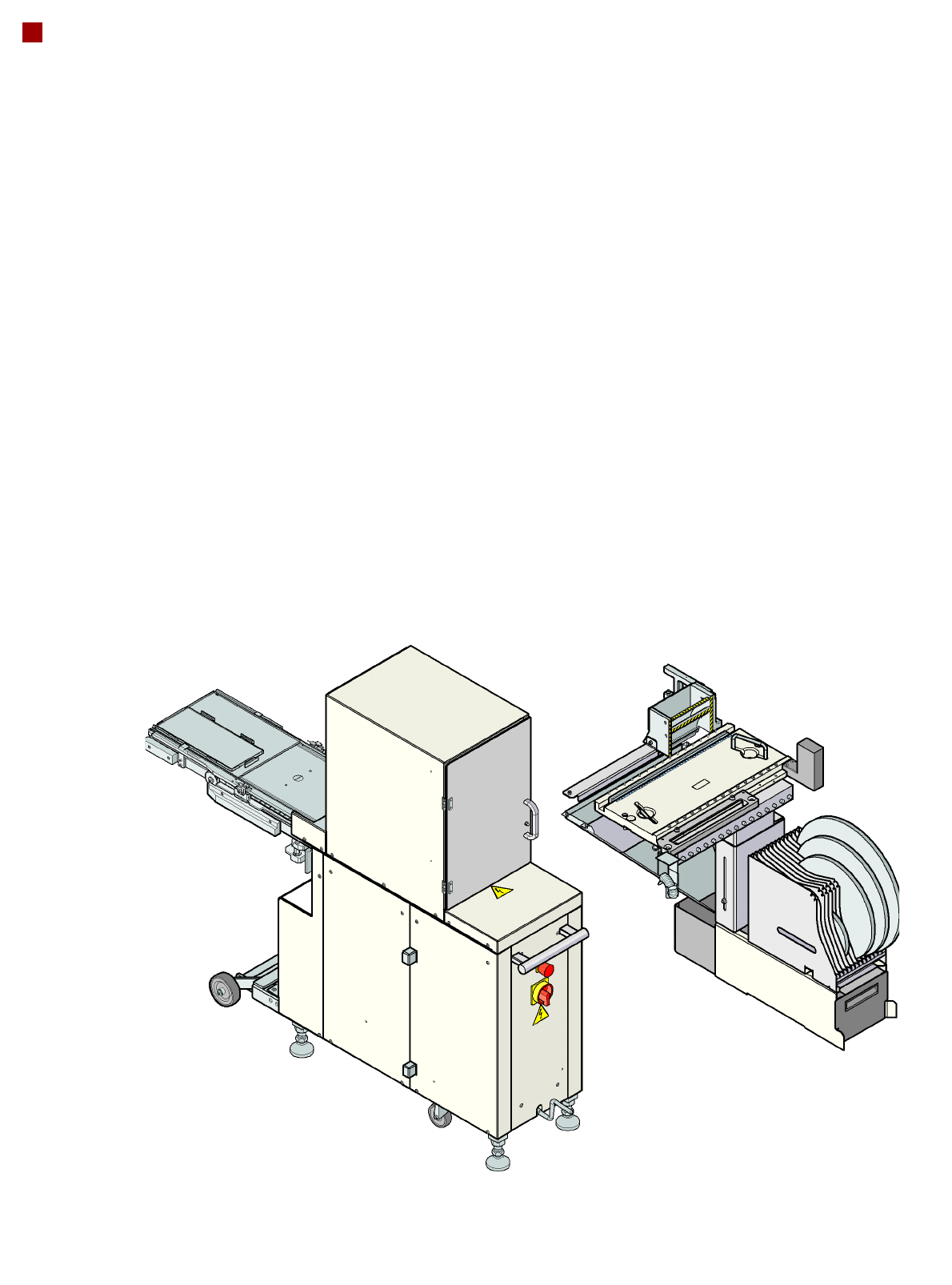

Upgrade kit
WPC
