InJet
®
388 DOUBLE TRIPLE CRRD 
TECHNICAL DATA SHEET
4
www.dct.cleaning

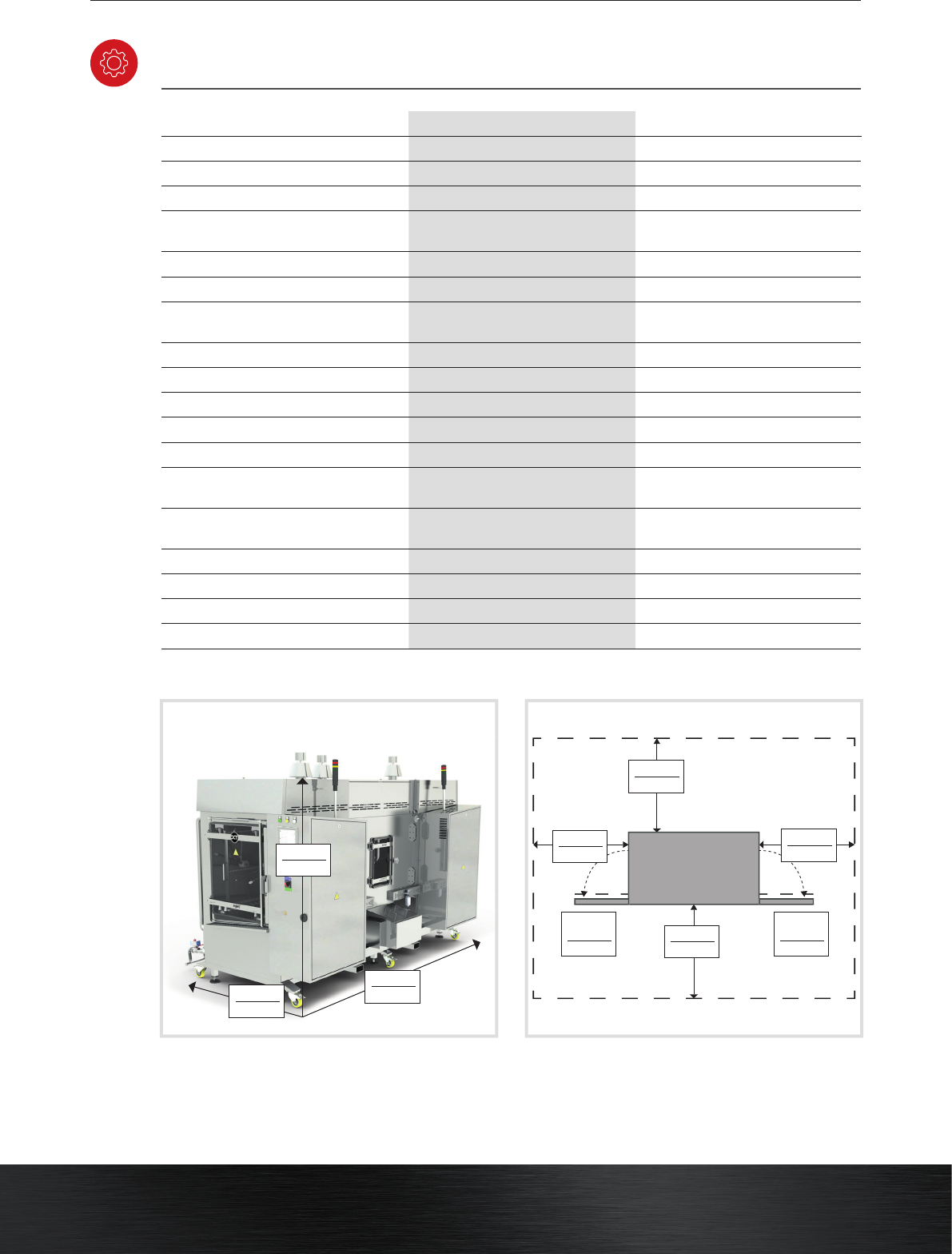

TECHNICAL PARAMETERS
DIMENSIONS
MINIMUM SERVICE SPACE
AROUND THE MACHINE
3200 mm
126 in
1710 mm
67.3 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
600 mm
23.6 in
open door
450 mm
17.7 in
open door
450 mm
17.7 in
Dimensions (w x l x h) 1710 x 3200 x 1930 mm 67.3 x 126 x 76 in
Weight 1500 kg 3307 lbs
Ø energy consumption per cycle 3,14 kWh 3.14 kWh
Cleaning and rinsing  uid consumption
per cycle
0,05 – 0,3 l 0.01 – 0.08 gal
Compressed air consumption per cycle 1 l / 5 Bar 0.26 gal / 72.5 PSI
Max. dimensions of the cleaned parts 100 x 810 x 740 mm 3.93 x 31.89 x 29.13 in
Exchangeable mechanical  lter of cleaning
and rinsing  uid
5 – 200 μm 5 – 200 μm
Spraying pressure – cleaning / 45°C / 113°F 1,6 Bar* 21.21 PSI
Range presssure – cleaning / 45°C / 113°F 0,3 – 2,8 Bar* 4.35 – 40.61 PSI
Range pressure – pre rinsing / 45°C / 113°F 0,0 – 1,5 Bar* 0.0 – 21.76 PSI
Range presssure – rinsing / 45°C / 113°F 0,1 – 1,5 Bar* 1.45 – 21.76 PSI
Cleaning  uid  ow rate 200 l / min 52.8 gal / min
Temperature range setting of the cleaning
and rinsing  uid
From ambient temperature to 60°C From ambient temperature to 140°F
Conductivity range settings of the rinsing
uid in the tanks.
0 – 2000 μS/cm * optional 0 – 2000 μS/cm * optional
Temperature range setting of the drying From ambient temperature to 80°C From ambient temperature to 176°F
Noise level < 70 dB < 70 dB
Device control PLC + 8,4“ touchscreen PLC + 8.4“ touchscreen
Volume of the storage tanks 150 l 39.6 gal
* Values may vary depending on equipment ( lters, pumps)
metric units imperial units
1930 mm
76 in
InJet
®
388 DOUBLE TRIPLE CRRD 
TECHNICAL DATA SHEET
5
www.dct.cleaning
INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
BACK
VIEW
1710 mm
47.2 in
1930 mm
72 in
195 mm
7.68 in
Power supply 400V, 63A, 50Hz (3+N+PE)
400V, 63A, 60Hz* (3+N+PE)
Pmax 45 kW
45 kW
Compressed air connection Pipe Ø 6 mm and 2x Ø 10 mm
Pipe ID 0.24 and 2x ID 0.39
Recommended working pressure 4,5 – 6 Bar
65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter 3 x Ø 100 mm
3 x ID 3.94 in
Exhaust pipe capacity 580 m
3
/h
20450 ft
3
/h
Air consumption - air knife 37 m
3
/h ***
1305 ft
3
/h ***
Minimum liquid for  rst run 3 x 75 l
3 x 19.8 gal
Service space required around the device 600 mm
23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1
*** When using one of the air knife
metric units imperial units
VIEW
845 mm
33.2 in
845 mm
33.2 in
570 mm
22.4 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
discharge of the liquides G1“
3350 mm
83 in
2110 mm
83 in
input air pressure
input air pressure
1x Ø 6 mm
1x ID 0.39 in
2x Ø 10 mm
2x ID 0.24 in
3200 mm
126 in
InJet
®
388 DOUBLE TRIPLE CRRD 
TECHNICAL DATA SHEET
6
www.dct.cleaning
STANDARD HARDWARE EQUIPMENT
STANDARD SOFTWARE EQUIPMENT
3 process chamber, full automatic solution
100% closed loop uid system
3 arm rotation – electric powered – cleaning
2 arm rotation – electric powered – rinsing
Cleaning and rinsing uid heating
High-capacity mechanical ltration on all cycles
2 hot air blowers - drying
Chimney ap – electronically controlled
Pneumatic door lock
Emergency stop button
Manipulation wheels – lockable
PLC controller + 8,4" touchscreen display
Spare parts (base kit)
Electronic monitoring of uid level
Electronic monitoring of uid pressure
Electronic process cycle counter
3 levels of logging – operator, maintenance, engineer
Spraying uid pressure – continuous measurement
Standard software language mutation – CZ, ENG
Liquid and lter replacement notication – cycle counting
Possibility of 5 programs – setting option
Smart warning – low or high pressure level
Smart warning – low uid level
