InJet ® 388 DOUBLE TRIPLE CRRD TECHNICAL DATA SHEET 6 www.dct.cleaning STANDARD HARDWARE EQUIPMENT STANDARD SOFTWARE EQUIPMENT 3 process chamber, full automatic solution 100% closed loop uid system 3 arm rotation – elec…
InJet
®
388 DOUBLE TRIPLE CRRD
TECHNICAL DATA SHEET
5
www.dct.cleaning

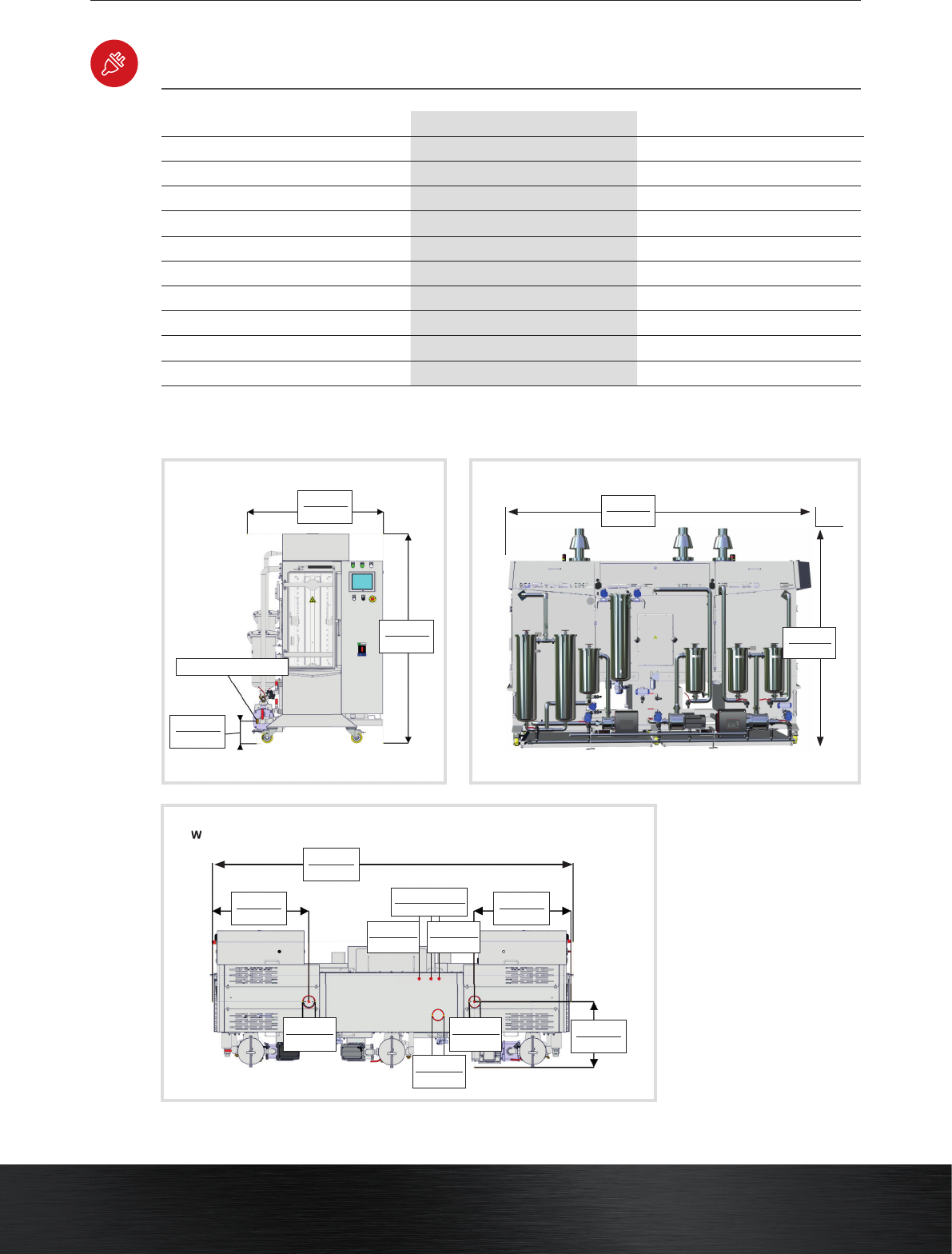

INSTALLATION REQUIREMENTS
FRONT
VIEW
TOP
VIEW
BACK
VIEW
1710 mm
47.2 in
1930 mm
72 in
195 mm
7.68 in
Power supply 400V, 63A, 50Hz (3+N+PE)
400V, 63A, 60Hz* (3+N+PE)
Pmax 45 kW
45 kW
Compressed air connection Pipe Ø 6 mm and 2x Ø 10 mm
Pipe ID 0.24 and 2x ID 0.39
Recommended working pressure 4,5 – 6 Bar
65.25 – 87 PSI
Compressed air quality 3. Class ** 3. Class **
Exhaust pipe diameter 3 x Ø 100 mm
3 x ID 3.94 in
Exhaust pipe capacity 580 m
3
/h
20450 ft
3
/h
Air consumption - air knife 37 m
3
/h ***
1305 ft
3
/h ***
Minimum liquid for rst run 3 x 75 l
3 x 19.8 gal
Service space required around the device 600 mm
23.6 in
* When using frequency convertor
** According to the norm ISO 8573-1
*** When using one of the air knife
metric units imperial units
VIEW
845 mm
33.2 in
845 mm
33.2 in
570 mm
22.4 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
Ø 100 mm
ID 3.94 in
discharge of the liquides G1“
3350 mm
83 in
2110 mm
83 in
input air pressure
input air pressure
1x Ø 6 mm
1x ID 0.39 in
2x Ø 10 mm
2x ID 0.24 in
3200 mm
126 in
InJet
®
388 DOUBLE TRIPLE CRRD
TECHNICAL DATA SHEET
6
www.dct.cleaning
STANDARD HARDWARE EQUIPMENT
STANDARD SOFTWARE EQUIPMENT
3 process chamber, full automatic solution
100% closed loop uid system
3 arm rotation – electric powered – cleaning
2 arm rotation – electric powered – rinsing
Cleaning and rinsing uid heating
High-capacity mechanical ltration on all cycles
2 hot air blowers - drying
Chimney ap – electronically controlled
Pneumatic door lock
Emergency stop button
Manipulation wheels – lockable
PLC controller + 8,4" touchscreen display
Spare parts (base kit)
Electronic monitoring of uid level
Electronic monitoring of uid pressure
Electronic process cycle counter
3 levels of logging – operator, maintenance, engineer
Spraying uid pressure – continuous measurement
Standard software language mutation – CZ, ENG
Liquid and lter replacement notication – cycle counting
Possibility of 5 programs – setting option
Smart warning – low or high pressure level
Smart warning – low uid level
InJet
®
388 DOUBLE TRIPLE CRRD
TECHNICAL DATA SHEET
7
www.dct.cleaning
OPTIONAL SOFTWARE EQUIPMENT
OPTIONAL HARDWARE EQUIPMENT
OPTIONAL ACCESSORY – FRAMES AND OTHERS
OPTIONAL TRACEABILITY
Common uids draining – manual control
Automatic uids relling (without pump)
Automatic uids discharging (without pump)
Tanker 200 or 400 lit – celaning/rinse uid
External blower control
Conductivity measurement – pre-rinse/rinse 0-2000 µS – blocking optional
ECA - automatic contrentration measurement
Filtration 1PR sandwich – integrated
Filtration sandwich – external
Additional drying technology – air knife
Electronically continuous level measurement – 3 sensors
Other optional equipment - the complete list of optional accessories will provide you DCT or the local distributor.
SW for CVA calculation ( android, machine )
Adjustable timer of cleaning uid heating
Upgrade machine for PROTON
Language mutation (CZE, ENG, GER, POL, CHI, RUS, ITA, SPA, MAY, HUN)
ONLINE access to cleaning device
Monitoring using RFID
Other optional equipment - the complete list of optional accessories will provide you DCT or the local distributor.
Mechanical carrier frame – PCB
Mechanical carrier frame – frameless stencils
Mechanical carrier frame – frame stencils
Mechanical carrier frame – VectorGuard stencils
Mechanical carrier frame – squeegees
Other optional equipment - the complete list of optional accessories will provide you DCT or the local distributor.
Traceability OFF line, CSV to SD card
Traceability OFF line, Reader, CSV to SD card
Traceability ON line, PC WIN, le
Traceability ON line, READER, PC WIN, le
Traceability ON line, PC WIN, OPC Server CD, no le
Traceability ON line, PC WIN, READER, OPC Server CD, no le
