Contents

1 CLY84A7

KW1-M1100-00X ....................................... 1-1~1-3

2 CLY84A15

KW1-M1200-00X ....................................... 2-1~2-3

3 CLY825A7

KW1-M1300-00X ....................................... 3-1~3-3

4 CLY825A15

KW1-M1400-00X ....................................... 4-1~4-3

5 CLY823A7

KW1-M1500-00X ...................................... 5-1~5-3

6 CLA84B

KW1-M1200-10X ....................................... 6-1~6-3

7 CLA825B

KW1-M1400-10X ....................................... 7-1~7-3

8 CLA823B

KW1-M1600-10X ....................................... 8-1~8-3

9 CL12B

KW1-M2200-10X ....................................... 9-1~9-3

; CL16B

KW1-M3200-10X .................................. 10-1~10-3

KW1-0105

CLY84A7

No. Part No. Part Name Q'ty Remarks Date Revised No.

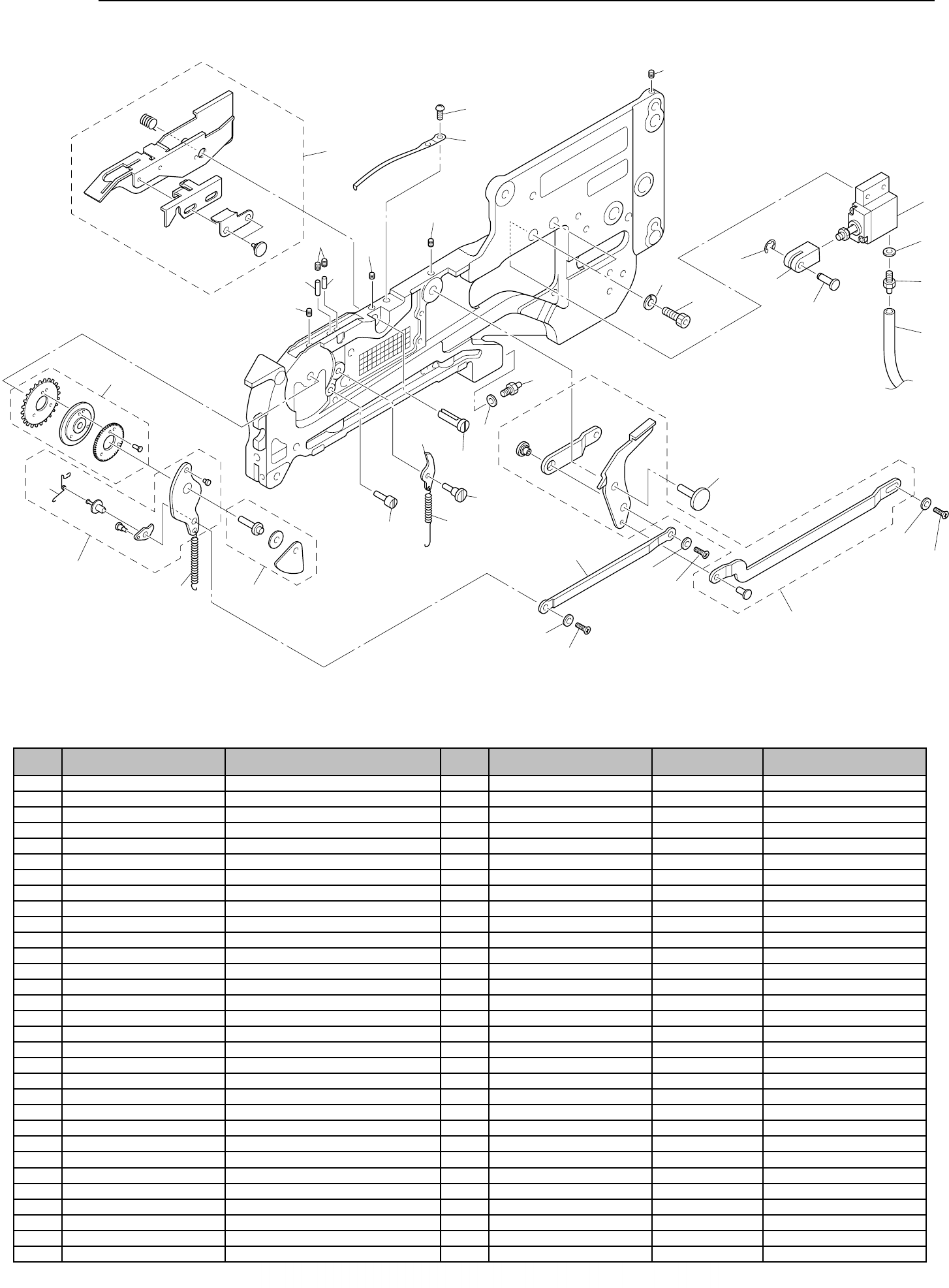

1 K87-M111H-20X BACK STOPPER 1

2 K87-M111B-00X BACK STOPPER AXIS 1

3 KW1-M111A-00X SPRING 1

4 K87-M111G-10X PUSH PIN 1

5 K87-M111C-00X PLANE WASHER 1

6 K87-M111P-00X SCREW,FLAT HEAD + 1

7 K87-M111D-00X PUSH PIN 1

8 K87-M112L-10X SPROCKET AXIS ASSY 1

9 KW1-M112A-00X RACKING LEVER ASSY 1

1 0 K87-M112D-10X COIL SPRING 1

1 1 KW1-M111E-00X SPRING 1

1 2 K87-M111F-10X STOPPER PIN 1

1 3 K87-M1181-00X ROD CONNECT 1

1 4 K87-M1184-00X CONNECT PIN 1

1 5 KW1-M1185-00X MULTI CYLINDER 1

1 6 KW1-M111L-00X BARB CONNECTOR 2

1 7 K87-M111M-00X GASKET 2

1 8 KW1-M11B1-00X AIR HOSE 1 L70

1 9 K87-M11B9-00X CIRCLIP E 1

2 0 KW1-M11BL-00X BOLT,HEX SOCKET HEAD 2

2 1 KW1-M11BM-00X SPRING LOCK WAHSER 2

2 2 KW1-M114A-00X HAND LEVER ASSY 1

2 3 KW1-M116K-00X LEVER AXIS 1

2 4 KW1-M1177-00X MAIN ARM 1

2 5 K87-M111C-00X PLANE WASHER 2

2 6 K87-M11BF-00X SCREW,FLAT HEAD +IB 2

2 7 KW1-M114N-00X GUIDE AXIS 1

2 8 K87-M111R-00X SCREW,SET 5

2 9 K87-M111T-00X SCREW,SET 1

3 0 K87-M1120-10X SPROCKET ASSY 1

3 1 KW1-M1140-00X TAPE GUIDE ASSY 1

KW1-0105

CLY84A7

No. Part No. Part Name Q'ty Remarks Date Revised No.

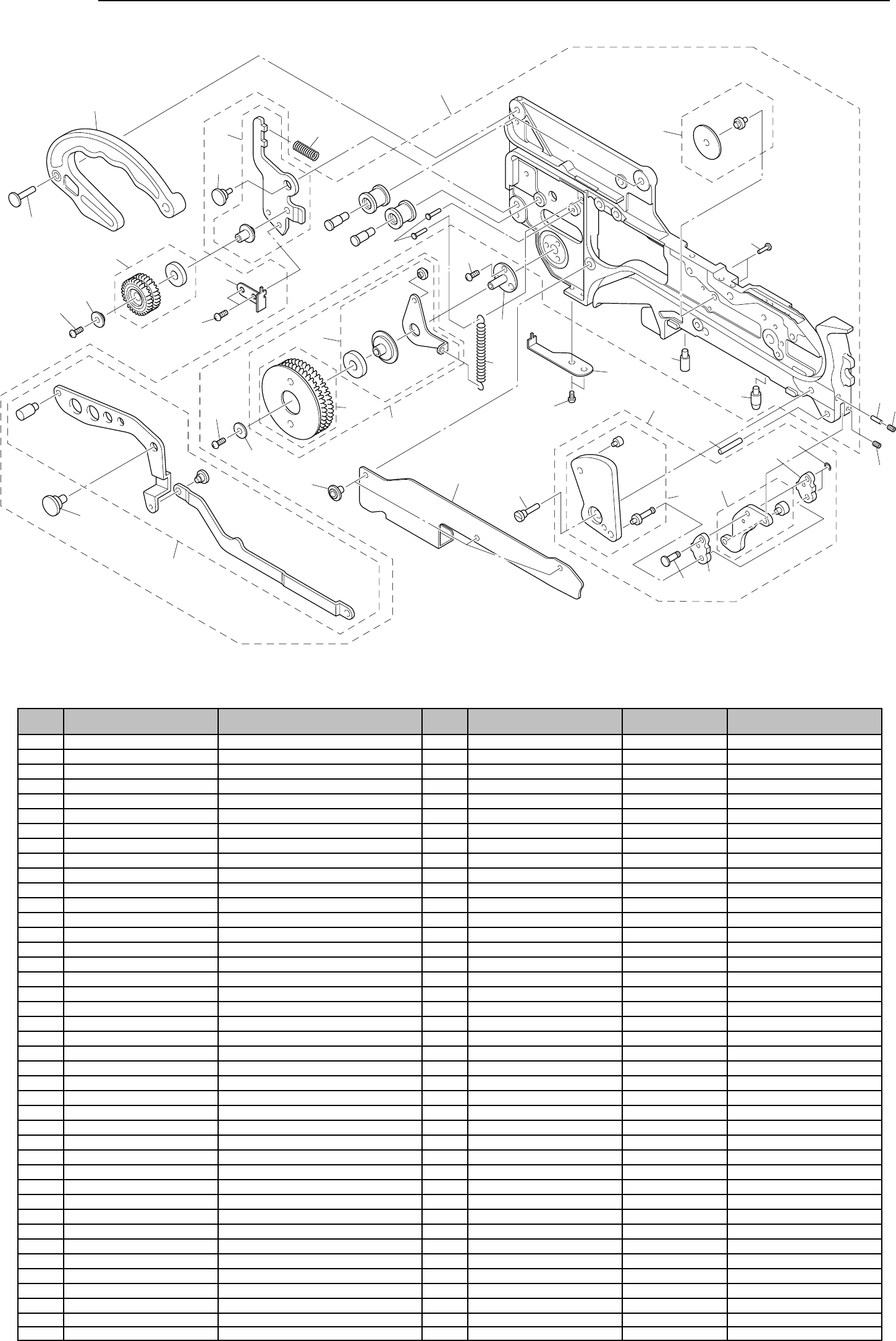

1 KW1-M1110-00X BODY ASSY 1

2 KW1-M1112-00X KNOCK PIN 1 FRONT

3 KW1-M1113-00X KNOCK PIN 1 REAR

4 K87-M1115-00X CIRCULAR RIVET 2

5 KW1-M1150-00X HANDLE LEVER ASSY 1

6 KW1-M116F-00X LEVER AXIS PIN 1

7 KW1-M115D-00X GUIDE PIN ASSY 1

8 KW1-M116D-00X TENSION LEVER ASSY 1

9 KW1-M116F-00X LEVER AXIS PIN 1

1 0 K87-M1115-00X CIRCULAR RIVET 2

1 1 KW1-M1131-00X CLAMP LEVER UNIT 1

1 2 KW1-M1132-00X CLAMP LEVER ASSY 1

1 3 K87-M113A-00X CLANK ARM ASSY 1

1 4 K87-M113D-00X ARM 2

1 5 K87-M113E-00X HINGE PIN 2 1

1 6 K87-M11D7-00X CIRCLIP E 2

1 7 K87-M113L-10X CLAMP LEVER AXIS 1

1 8 K87-M113M-00X AXIS PIN 1

1 9 K87-M113H-00X PUSH PIN 1

2 0 K87-M111V-00X SCREW,SET 1

2 1 K87-M111R-00X SCREW,SET 1

2 2 KW1-M114L-00X COVER 1

2 3 KW1-M111T-00X SCREW,THIN HEAD 3

2 4 KW1-M116J-00X METAL SHAFT 1

2 5 K87-M11BA-00X SCREW,FLAT HEAD + 3

2 6 KW1-M1191-00X DRIVE ROLLER UNIT 1

2 7 KW1-M1192-00X INDENTATION LVR ASSY 1

2 8 KW1-M119F-00X DRIVE ROLLER ASSY 1

2 9 K87-M117B-00X PLANE WASHER 1

3 0 K87-M11BB-00X SCREW,FLAT HEAD + IB 1

3 1 KW1-M119K-00X SPRING 1

3 2 KW1-M119L-00X IDLE ROLLER ASSY 1

3 3 KW1-M119R-00X COLLAR 1

3 4 K87-M21BB-00X SCREW,TRUSS HEAD 1

3 5 KW1-M119P-00X SPRING 1

3 6 KW1-M11A1-00X LOWER GUIDE PLATE R 1

3 7 K87-M53BS-00X SCREW,PAN HEAD + 2

3 8 KW1-M11A3-00X LOWER GUIDE PLATE L 1

3 9 K87-M111N-00X SCREW,PAN HEAD + 2

4 0 KW1-M115L-00X HOLD ARM 1 BLACK

4 1 KW1-M115M-00X ARM AXIS 1
