Yamaha_CL_Feeder_Part_List.pdf - 第25页
KW1-0105 CLA823B CLA823B 8 3 No . Part No . Part N ame Q 't y Re mark s Da te Revi sed No. 1 KW1 -M1 2D0 -10 X R EE L H O LD E R A SS Y 1 2 KW1 -M1 2D1 -10 X R EE L PL A TE AS S Y 1 3 K8 7 -M 1 1D 7 -2 0X CIRC LIP C…
KW1-0105
CLA823B
CLA823B
82
16
14
3
4
7
2
19
20
13
17
34
33
32
41
40
9
8
35
10
25
31
27
30
29
28
26
36
37
23
5
6
22
39
38
1
21
18
11
12
14
15
24

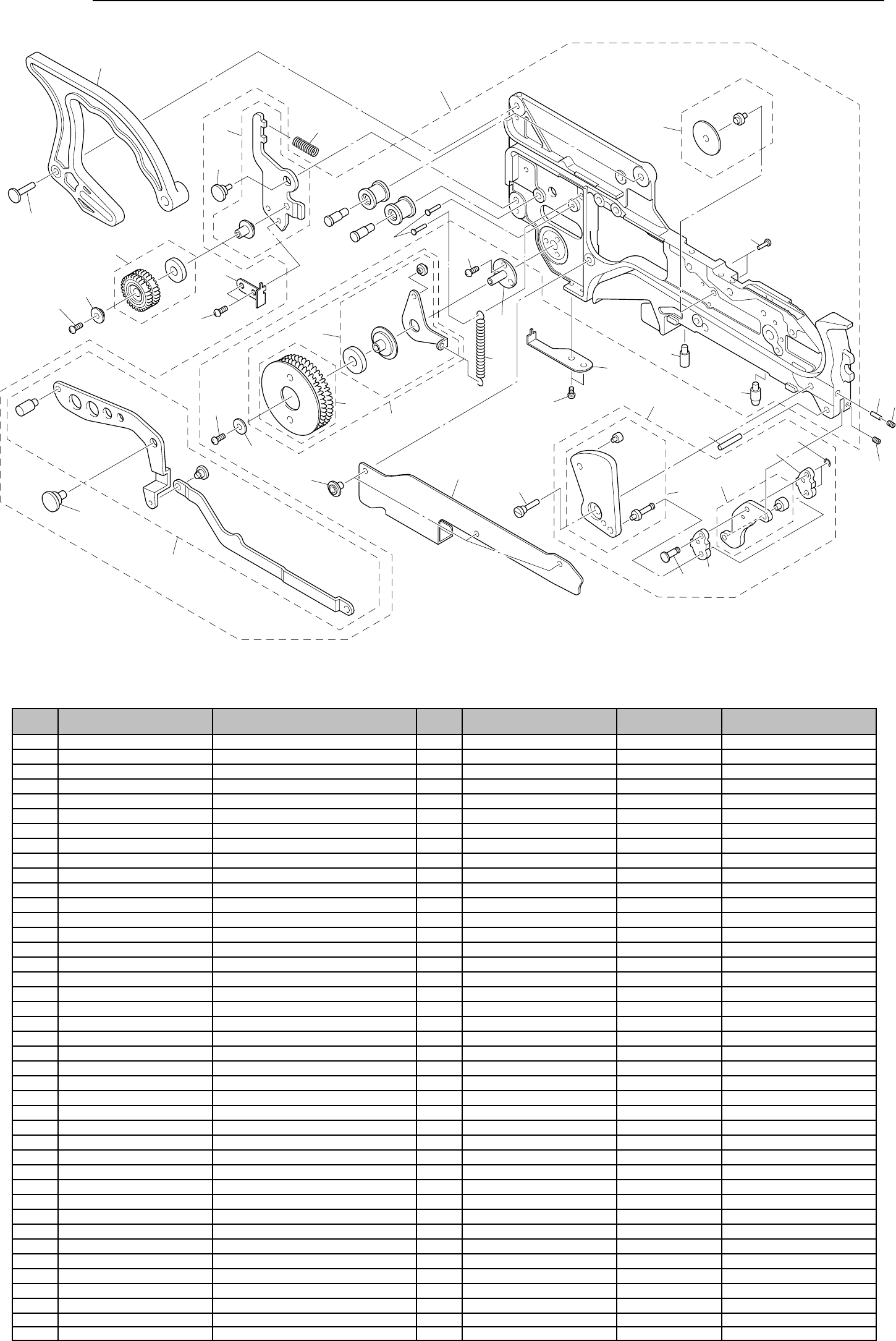

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KW1-M1110-00X BODY ASSY 1
2 KW1-M1112-00X KNOCK PIN 1 FRONT
3 KW1-M1113-00X KNOCK PIN 1 REAR
4 K87-M1115-00X CIRCULAR RIVET 2
5 KW1-M1150-00X HANDLE LEVER ASSY 1
6 KW1-M116F-00X LEVER AXIS PIN 1
7 KW1-M115D-00X GUIDE PIN ASSY 1
8 KW1-M116D-00X TENSION LEVER ASSY 1
9 KW1-M116F-00X LEVER AXIS PIN 1
1 0 K87-M1115-00X CIRCULAR RIVET 2
1 1 KW1-M1131-00X CLAMP LEVER UNIT 1
1 2 KW1-M1132-00X CLAMP LEVER ASSY 1
1 3 K87-M113A-00X CLANK ARM ASSY 1
1 4 K87-M113D-00X ARM 2
1 5 K87-M113E-00X HINGE PIN 2 1
1 6 K87-M11D7-00X CIRCLIP E 2
1 7 K87-M113L-10X CLAMP LEVER AXIS 1
1 8 K87-M113M-00X AXIS PIN 1
1 9 K87-M113H-00X PUSH PIN 1
2 0 K87-M111V-00X SCREW,SET 1
2 1 K87-M111R-00X SCREW,SET 1
2 2 KW1-M114L-00X COVER 1
2 3 KW1-M111T-00X SCREW,THIN HEAD 3
2 4 KW1-M116J-00X METAL SHAFT 1
2 5 K87-M11BA-00X SCREW,FLAT HEAD + 3
2 6 KW1-M1191-00X DRIVE ROLLER UNIT 1
2 7 KW1-M1192-00X INDENTATION LVR ASSY 1
2 8 KW1-M119F-00X DRIVE ROLLER ASSY 1
2 9 K87-M117B-00X PLANE WASHER 1
3 0 K87-M11BB-00X SCREW,FLAT HEAD + IB 1
3 1 KW1-M119K-00X SPRING 1
3 2 KW1-M119L-00X IDLE ROLLER ASSY 1
3 3 KW1-M119R-00X COLLAR 1
3 4 K87-M21BB-00X SCREW,TRUSS HEAD 1
3 5 KW1-M119P-00X SPRING 1
3 6 KW1-M11A1-00X LOWER GUIDE PLATE R 1
3 7 K87-M53BS-00X SCREW,PAN HEAD + 2
3 8 KW1-M11A3-00X LOWER GUIDE PLATE L 1
3 9 K87-M111N-00X SCREW,PAN HEAD + 2
4 0 KW1-M155L-10X HOLD ARM 1 GREEN
4 1 KW1-M115M-00X ARM AXIS 1
KW1-0105
CLA823B
CLA823B
83

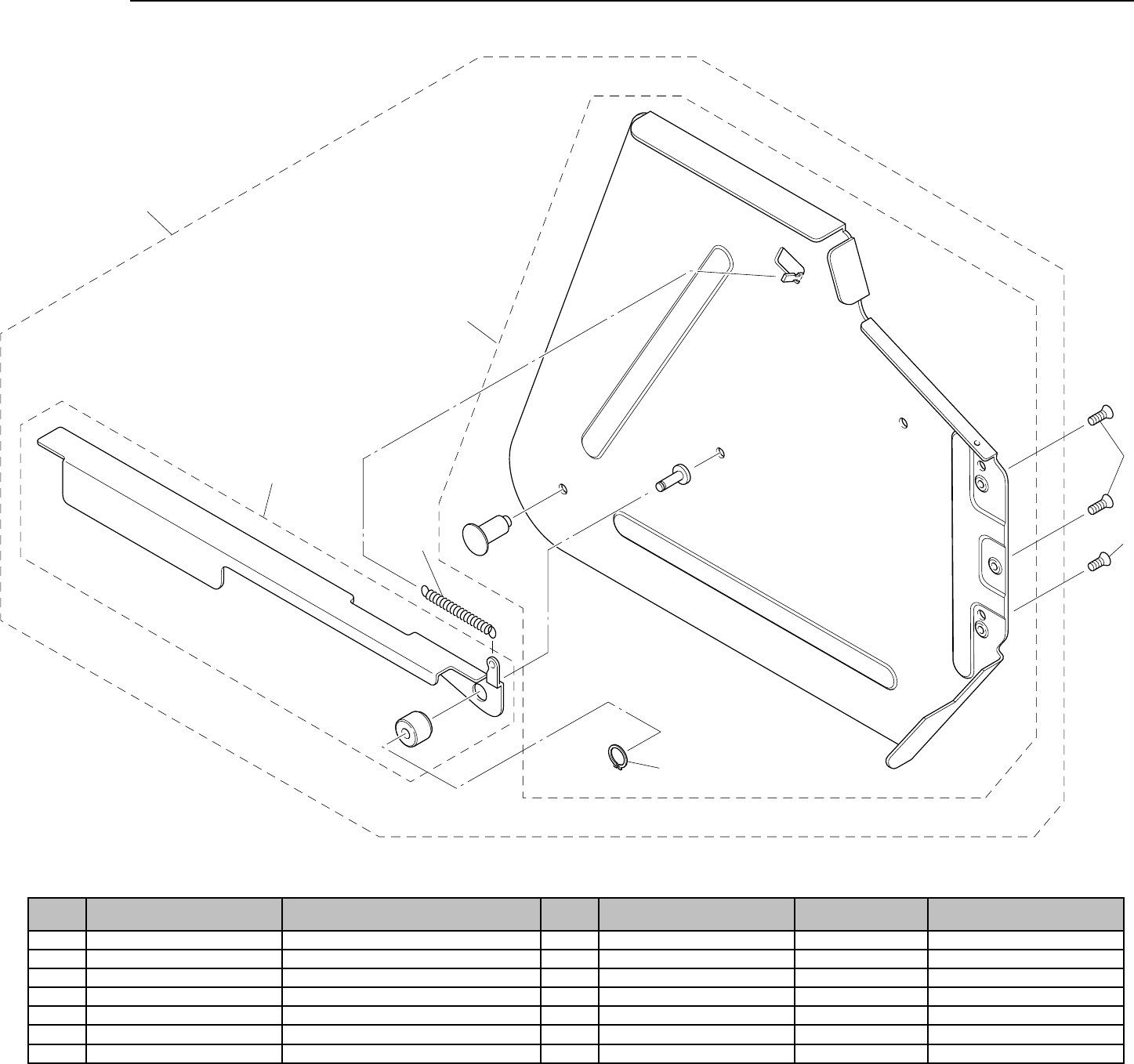

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KW1-M12D0-10X REEL HOLDER ASSY 1
2 KW1-M12D1-10X REEL PLATE ASSY 1
3 K87-M11D7-20X CIRCLIP C 1
4 KW1-M12DA-10X TENSION LEVER ASSY 1
5 KW1-M12DL-00X SPRING 1
6 KW1-M111S-00X SCREW,FLAT HEAD + 1
7 K87-M111S-00X SCREW,FLAT HEAD + 2
1
2
4
5
7
6
3
KW1-0105
CL12B
CL12B
91
14
2
27
25
24
22
21
16
15
20
17
18
19
1
30
18
3
10
8
10
33
7
4
10
10
9
11
12
13
32
26
28
29
28
29
5
6
23
31

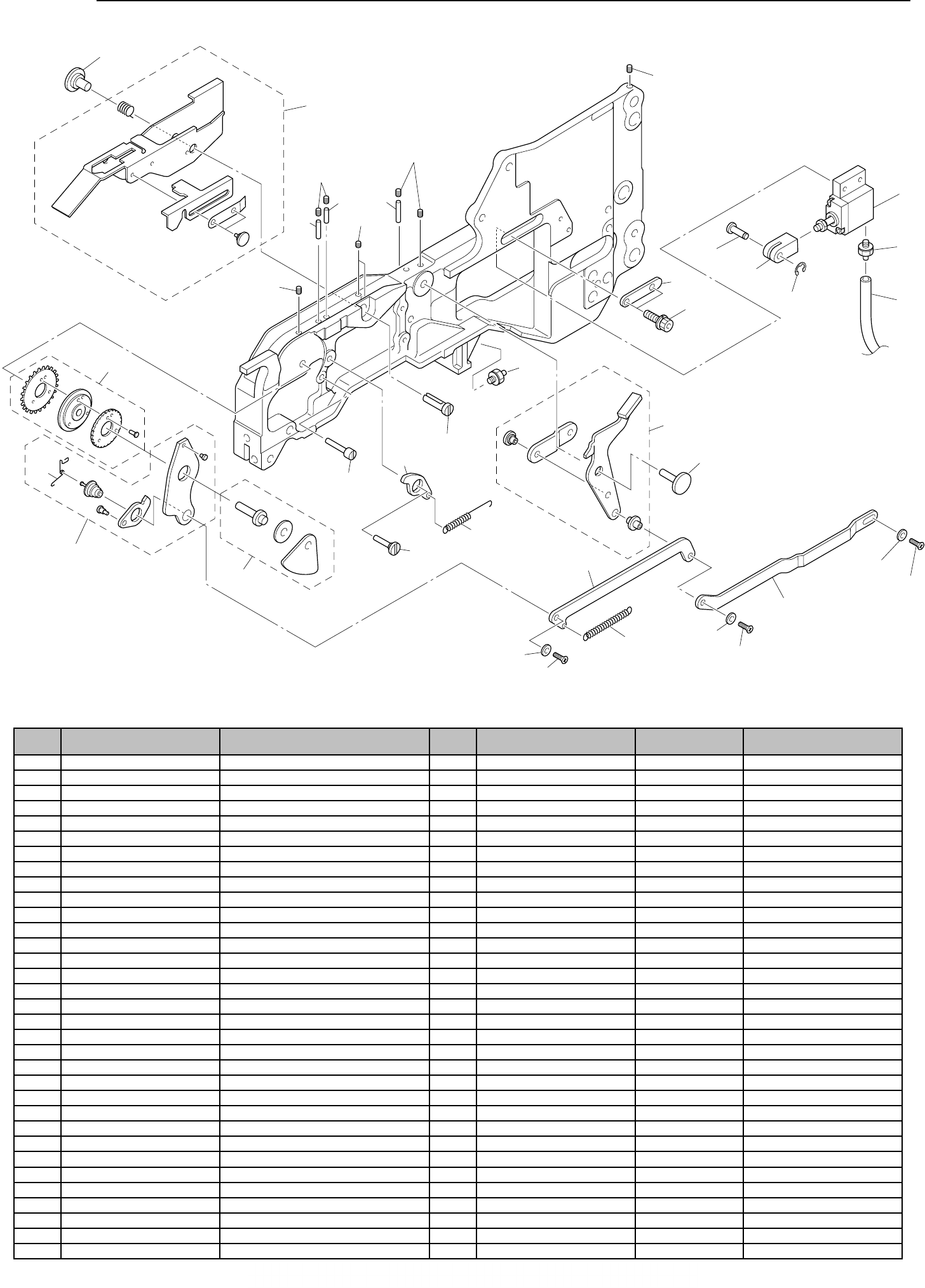

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M111H-20X BACK STOPPER 1
2 K87-M211B-00X BACK STOPPER AXIS 1
3 KW1-M111A-00X SPRING 1
4 K87-M111G-00X PUSH PIN 1
5 K87-M111C-00X PLANE WASHER 1
6 K87-M11BF-00X SCREW,FLAT HEAD +IB 1
7 K87-M111D-00X PUSH PIN 1
8 K87-M111G-100 PUSH PIN 1
9 K87-M111T-00X SCREW,SET 2
1 0 K87-M111R-00X SCREW,SET 6
1 1 K87-M212L-10X SPROCKET AXIS ASSY 1
1 2 KW1-M222A-00X RACKING LEVER ASSY 1
1 3 K87-M112D-10X COIL SPRING 1
1 4 KW1-M221F-10X STOPPER PIN 1
1 5 K87-M1181-00X ROD CONNECT 1
1 6 K87-M1184-00X CONNECT PIN 1
1 7 KW1-M2285-00X MULTI CYLINDER 1
1 8 K87-M56C1-00X BARB CONNECTOR 2
1 9 KW1-M22B1-00X AIR HOSE 1 L60
2 0 K87-M11B9-00X CIRCLIP E 1
2 1 KW1-M22B6-00X BOLT,SOCKET HEAD SW 2
2 2 KW1-M2284-00X CYLINDER ADJ PLATE 1
2 3 KW1-M224A-00X HAND LEVER ASSY 1
2 4 KW1-M116K-00X LEVER AXIS 1
2 5 KW1-M2277-00X MAIN ARM 1
2 6 KW1-M221E-00X SPRING 1
2 7 KW1-M224D-00X SUB ARM 1
2 8 K87-M111C-00X PLANE WASHER 2
2 9 K87-M11BF-00X SCREW,FLAT HEAD +IB 2
3 0 K87-M214N-00X GUIDE AXIS 1
3 1 K87-M214P-00X GUIDE PIN 1
3 2 K87-M1120-10X SPROCKET ASSY 1
3 3 KW1-M2240-00X TAPE GUIDE ASSY 1
