Yamaha_CL_Feeder_Part_List.pdf - 第29页
KW1-0105 CL16B CL16B ; 1 No . Part No. Part Name Q' t y Remar ks D a t e Revis ed No. 1 K8 7 -M 1 11 H- 2 0X B A C K S T O P P E R 1 2 K8 7 - M 21 1 B - 0 0X B A C K S T O P P E R A X I S 1 3 KW1 -M1 11A -00 X SP RI…
KW1-0105
CL12B
CL12B
93

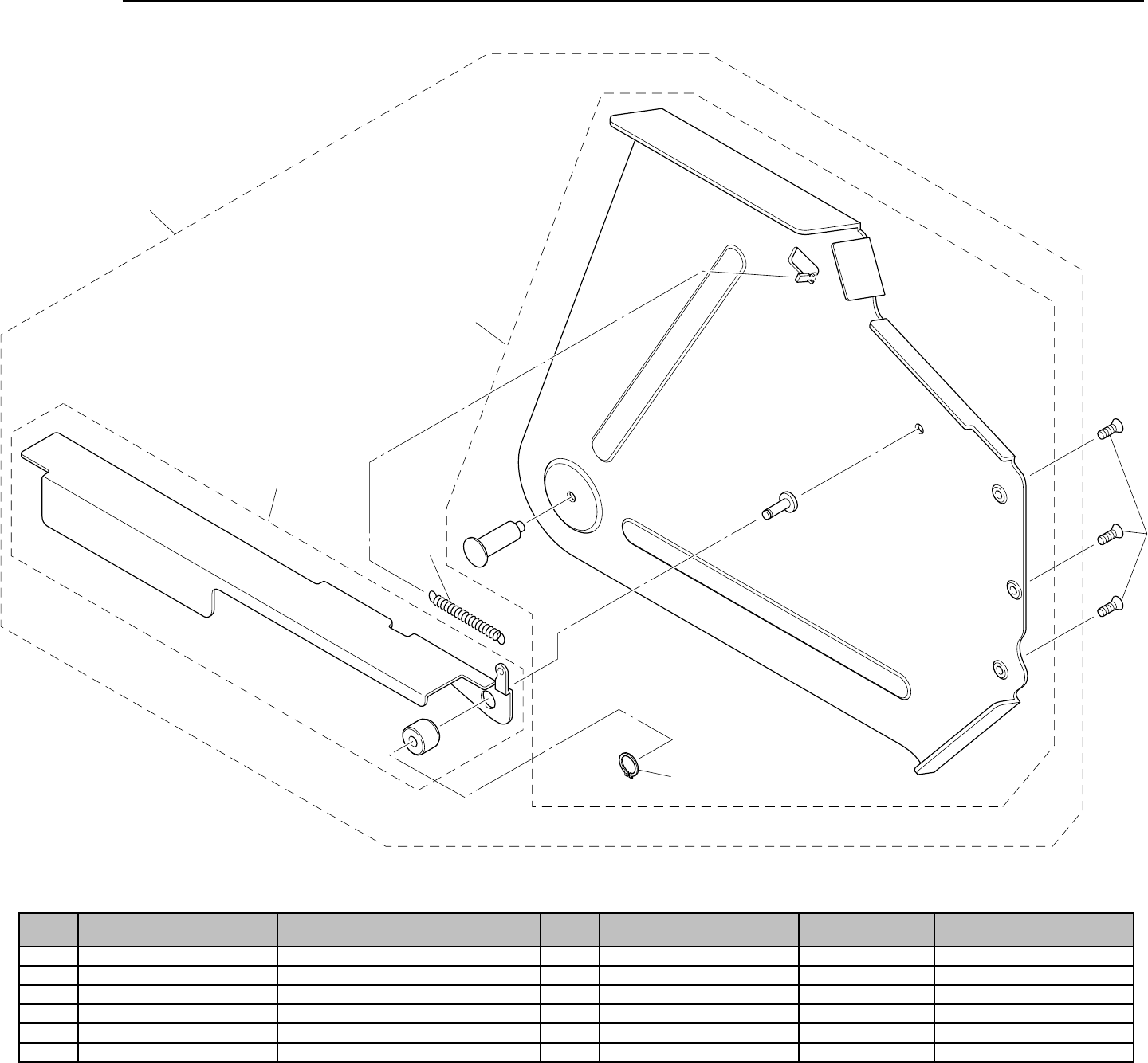

No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KW1-M22D0-10X REEL HOLDER ASSY 1
2 KW1-M22D1-10X REEL PLATE ASSY 1
3 K87-M11D7-20X CIRCLIP C 1
4 KW1-M22DA-10X TENSION LEVER ASSY 1
5 K87-M22DL-00X SPRING 1
6 K87-M55BN-00X SCREW,FLAT HEAD + 3
1
2
4
5
6
3
KW1-0105
CL16B
CL16B
;1
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 K87-M111H-20X BACK STOPPER 1
2 K87-M211B-00X BACK STOPPER AXIS 1
3 KW1-M111A-00X SPRING 1
4 K87-M111C-00X PLANE WASHER 1
5 K87-M11BF-00X SCREW,FLAT HEAD +IB 1
6 K87-M111D-00X PUSH PIN 1
7 K87-M111G-10X PUSH PIN 1
8 K87-M212L-10X SPROCKET AXIS ASSY 1
9 KW1-M222A-00X RACKING LEVER ASSY 1
1 0 K87-M112D-10X COIL SPRING 1
1 1 KW1-M221F-10X STOPPER PIN 1
1 2 K87-M1181-00X ROD CONNECT 1
1 3 K87-M1184-00X CONNECT PIN 1
1 4 KW1-M2285-00X MULTI CYLINDER 1
1 5 K87-M56C1-00X BARB CONNECTOR 2
1 6 KW1-M22B1-00X AIR HOSE 1 L60
1 7 K87-M11B9-00X CIRCLIP E 1
1 8 KW1-M22B6-00X BOLT,SOCKET HEAD SW 2
1 9 KW1-M3284-00X CYLINDER ADJ PLATE 1
2 0 KW1-M324A-00X HAND LEVER ASSY 1
2 1 KW1-M116K-00X LEVER AXIS 1
2 2 KW1-M3277-00X MAIN ARM 1
2 3 KW1-M321E-00X SPRING 1
2 4 KW1-M324D-00X SUB ARM 1
2 5 K87-M111C-00X PLANE WASHER 2
2 6 K87-M11BF-00X SCREW,FLAT HEAD +IB 2
2 7 K87-M214N-00X GUIDE AXIS 1
2 8 K87-M214P-00X GUIDE PIN 1
2 9 K87-M111T-00X SCREW,SET 2
3 0 K87-M111R-00X SCREW,SET 6
3 1 K87-M1120-10X SPROCKET ASSY 1
3 2 KW1-M3240-00X TAPE GUIDE ASSY 1
11
2
24
22
21
19
18
13
12
17
14
15
16
1
27
15
3
30
7
30
32
6
30
29
8
9
10
31
23
4
5
25
26
20
28
KW1-0105
CL16B
CL16B
;2
18
16
3
4
24
2
21
22
15
19
33
32
31
40
39
11
10
34
12
30
26
29
28
27
25
35
36
38
37
1
22
20
13
14
16
17
23
6
9
8
5
7
No. Part No. Part Name Q'ty Remarks Date Revised No.
1 KW1-M3210-00X BODY ASSY 1
2 K87-M1112-10X KNOCK PIN 1 FRONT
3 KW1-M1113-00X KNOCK PIN 1 REAR
4 K87-M1115-00X CIRCULAR RIVET 2
5 KW1-M226F-00X LEVER METAL 1
6 KW1-M326H-00X METAL AXIS 1
7 KW1-M236V-00X ROLLER 1
8 KW1-M3250-00X HANDLE LEVER ASSY 1
9 KW1-M116K-00X LEVER AXIS 1
1 0 KW1-M226D-00X TENSION LEVER ASSY 1
1 1 KW1-M116F-00X LEVER AXIS PIN 1
1 2 K87-M1115-00X CIRCULAR RIVET 2
1 3 KW1-M2231-00X CLAMP LEVER UNIT 1
1 4 KW1-M2232-00X CLAMP LEVER ASSY 1
1 5 K87-M213A-00X CLANK ARM ASSY 1
1 6 K87-M113D-00X ARM 2
1 7 K87-M113E-00X HINGE PIN 2 1
1 8 K87-M11D7-00X CIRCLIP E 2
1 9 K87-M213L-10X CLAMP LEVER AXIS 1
2 0 K87-M213M-00X AXIS PIN 1
2 1 K87-M113H-00X PUSH PIN 1
2 2 K87-M111V-00X SCREW,SET 2
2 3 KW1-M326J-00X METAL SHAFT 1
2 4 KW1-M22B5-00X BOLT,HEX SOCKET HEAD 3
2 5 KW1-M3291-00X DRIVE ROLLER UNIT 1
2 6 KW1-M3292-00X INDENTATION LVR ASSY 1
2 7 KW1-M329F-00X DRIVE ROLLER ASSY 1
2 8 K87-M117B-00X PLANE WASHER 1
2 9 K87-M11BB-00X SCREW,FLAT HEAD + IB 1
3 0 KW1-M229K-00X SPRING 1
3 1 KW1-M329L-00X IDLE ROLLER ASSY 1
3 2 KW1-M229R-00X COLLAR 1
3 3 K87-M21BB-00X SCREW,TRUSS HEAD 1
3 4 KW1-M119P-00X SPRING 1
3 5 KW1-M32A1-00X LOWER GUIDE PLATE R 1
3 6 K87-M53BS-00X SCREW,PAN HEAD +2
3 7 KW1-M32A3-00X LOVER GUIDE PLATE L 1
3 8 K87-M111N-00X SCREW,PAN HEAD +2
3 9 KW1-M325L-10X HOLD ARM 1 BLACK
4 0 KW1-M325M-00X ARM AXIS 1
