AIR IONIZER MODULE
REPLACEMENT PROCEDURE
25.6 Technical Reference Manual Chapter Issue 2 Oct 06
Electrode Cleaning 1. Ensure that the machine is isolated from mains electrical supply and the air
supply is disconnected.
2. Remove the left hand side safety cover from the machine to gain access to
the air ionizer.

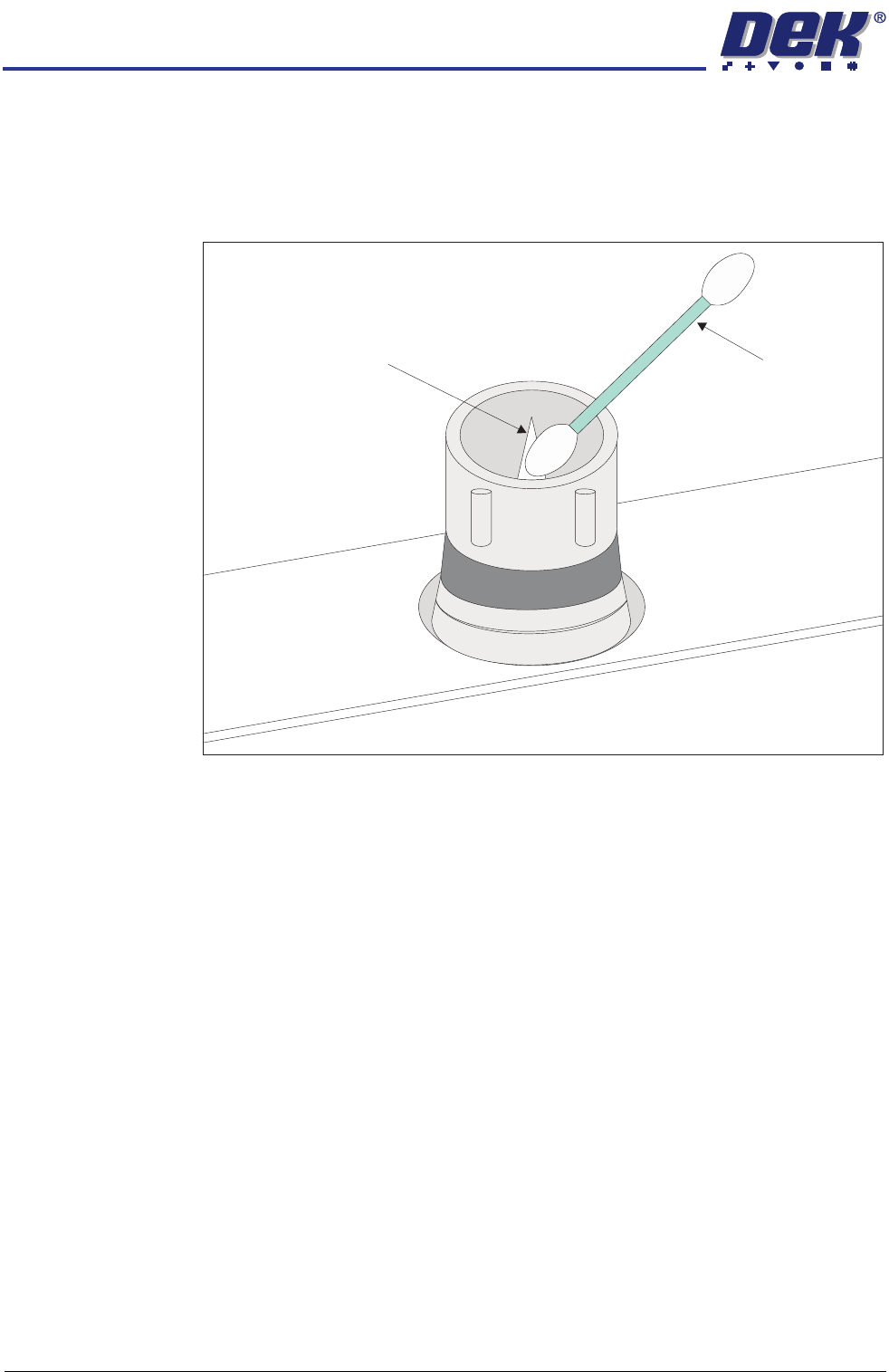

3. Using a suitable cotton bud moistened with alcohol, clean the first electrode.
4. Repeat for the rest of the electrodes, moistening the cotton bud between
each electrode.
5. Refit the left hand side safety cover.
Electrode
Replacement
When replacing an electrode due to wear, all the electrodes must be changed
at the same time for the air ionizer to work efficiently. To change the electrodes,
use the following procedure:
1. Ensure that the machine is isolated from mains electrical supply and the air
supply is disconnected.
2. Remove the left hand side safety cover to gain access to the air ionizer.
Electrode Cotton Bud
AIR IONIZER MODULE
REPLACEMENT PROCEDURE
Chapter Issue 2 Oct 06 Technical Reference Manual 25.7

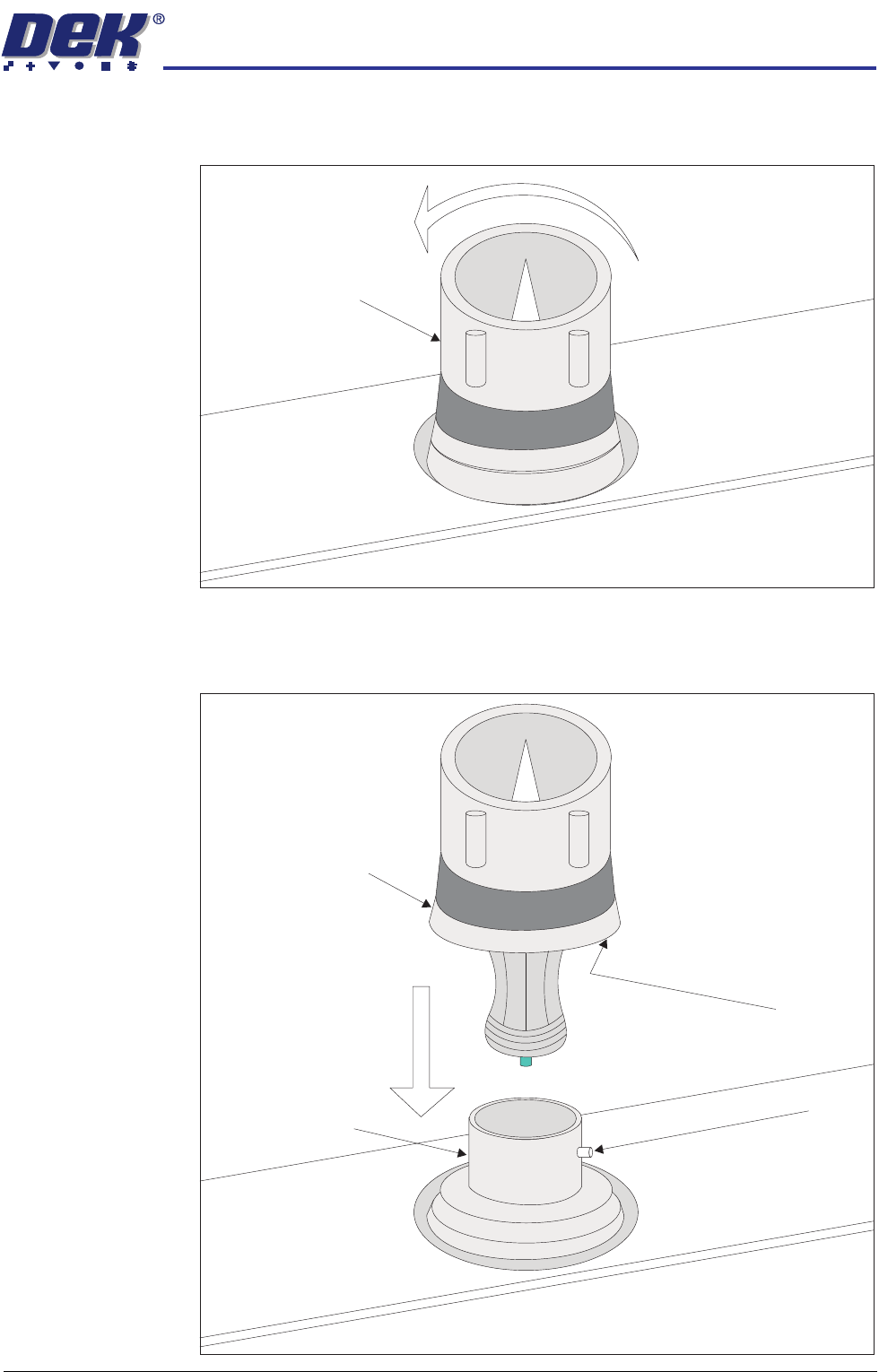

3. To remove the electrode, turn the electrode assembly counterclockwise and
lift upwards from the ionizer.
4. Discard the electrode assembly.
5. Place the new electrode assembly into the electrode socket ensuring that
the key and keyway are aligned.
Electrode Assembly
Electrode Assembly
Electrode Socket
Key
Keyway
AIR IONIZER MODULE
REPLACEMENT PROCEDURE
25.8 Technical Reference Manual Chapter Issue 2 Oct 06
6. Turn the electrode assembly clockwise to secure in position.
7. Repeat Steps 3 to 6 for all the remaining electrodes.
8. Refit the left hand side safety cover.
