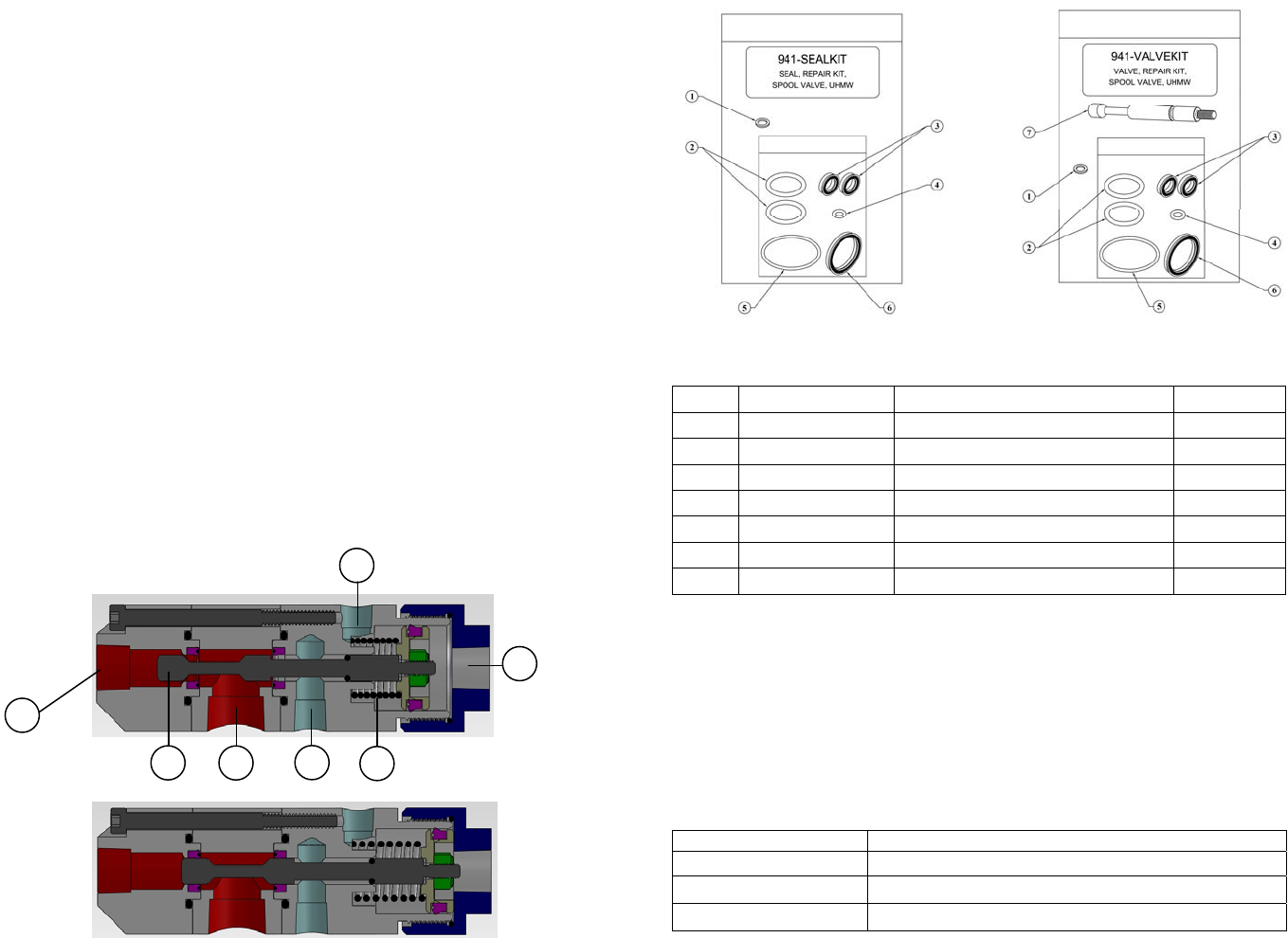

TS934-TS941-user-guide.pdf - 第3页

10 10. STANDARD ACCESSORIES 10.1 OPTIONAL ACCESSORIES 10.2 FITTINGS AND TUBINGS 10.3 BRACKETS PART NUMBER DESCRIPTION TSD700-1 Oiler Cup TSD931-15 ¼'' NPT X Female Luer Lock Fitting TSD918-3 Elbow, ¼-18 NPT X ¼…

CONTENTS

Page number

1. Specifications……………..…………………………………………………...3

2. Unpacking and Inspection…….…. ………………………………………..…4

3. Description……..…………………………………………………………..…4

4. Theory of Operation…………………………………………………….….…4

5. Setup Instructions……………………………………………………….….…5

6. Typical System Set-Up..…..…………………………………………….….…5

7. Maintenance and Cleaning……………...…………………………………….6

8. Spare Parts……………….……….…………………………………….…...7-8

9. Repair Kits and Seals…………………………………………………...…….9

10. Accessories…......……………………………………………………………10

11. Troubleshooting..……………………...……………….……….……............11

12. Warranty…………………………………………………….……………….12

11. TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE CORRECTION

No fluid flow

Fluid pressure too low Increase fluid pressure

Operating pressure too low

Increase air pressure to 70 psi

(4.8bar)

Dispense tip clogged or

damaged

Replace tip

Fluid cured in valve chamber Clean valve thoroughly

Inconsistent

fluid flow

Fluid pressure fluctuating

Make sure fluid pressure is

constant

Valve operating pressure is too

low

Increased valve pressure to 70

psi (4.8bar)

Valve open time is not

consistent

Check to make sure the valve

controller is providing a

consistent output

Air trapped in fluid housing Purge valve

Fluid drools

after the valve

closes,

eventually

stopping

Air trapped in fluid housing Purge valve

Steady drip

Lower seal damaged or worn Replace lower seal

Spool damaged Replace spool

Inlet air fitting is too long,

pushing the spool opened

Replace air fitting

Valve re-assembled incorrectly

Re-assemble valve, follow re-

assembly instructions

10. STANDARD ACCESSORIES

10.1 OPTIONAL ACCESSORIES

10.2 FITTINGS AND TUBINGS

10.3 BRACKETS

PART NUMBER DESCRIPTION

TSD700-1 Oiler Cup

TSD931-15 ¼'' NPT X Female Luer Lock Fitting

TSD918-3 Elbow, ¼-18 NPT X ¼-18 NPT

TSD931-7 Tip Adaptor ¼'' NPT

TSD912-15 Reducer, ⅜'' NPT X ¼'' NPT

TS60C-CON Cleaning Gel, 6oz (177ml)

PART NUMBER DESCRIPTION

918-006-000 Tip adapter, Metal (Nickel Plated Brass)

934-003-000 Adjustable Suck Back Cap

PART NUMBER DESCRIPTION

TSD1002-38 ¼'' NPT to ¼'' O.D. Tube

TSD1566-5 ¼'' NPT to ⅜'' O.D. Tube

TSD1099-22 ⅜'' O.D. X ¼'' I.D. Tube, Black, Polyethylene

TSD1099-23 ⅜'' O.D. X ¼'' I.D. Tube, Clear, Polyethylene

TSD1099-24 ¼'' O.D. X ⅛'' I.D. Tube, Clear, Polyethylene

TSD1099-25 ¼'' O.D. X ⅛'' I.D. Tube, Black, Polyethylene

TSD1099-45 6mm O.D. X 4mm I.D, Clear, Polyethylene

TSD1099-46 6mm O.D. X 4mm I.D, Black, Polyethylene

PART NUMBER DESCRIPTION

918-033-000 Productions Master Stand (Base & Support)

918-000-012 Rod Clamp Assembly

918-000-013 TS934/TS941 Series Spool Valve Bracket

918-000-009 6'' Non-Threaded Mounting Rod

1. SPECIFICATIONS

TS934/TS941 TS934A/TS941A

Size

4.7'' length X 1.5'' diameter

(119.4mm X 38.1mm)

4.7'' length X 1.5'' diameter

(119.4mm X 38.1mm)

Weight

TS934 = 1.15lb (522g)

TS941 = 1.6lb (728g)

TS934A = 1.16lb (526g)

TS941A = 1.61lb (731g)

Fluid Inlet

Port

⅜'' NPT female ¼'' NPT female

Fluid Outlet

Port

¼'' NPT female ¼'' NPT female

Air Inlet Port ¼'' NPT female ¼'' NPT female

Auxiliary Air

Inlet Port

⅛'' NPT ⅛'' NPT

Minimum

Air Pressure

70 psi (4.8bar)

Maximum

Fluid

Pressure

2,500 psi (172.4bar) 2,500 psi (172.4bar)

Operating

Frequency

Exceeds 400 cycles/min. Exceeds 400 cycles/min.

Wetted Parts

TS941 Fluid housing = Type 303 SS

TS934 Fluid Housing =Aluminum

Hard Chrome plated Stainless Steel,

UHWPE Seal with EPR O-Ring

TS941A Fluid housing = Type 303 SS

TS934A Fluid Housing = Aluminum

Hard Chrome plated Stainless Steel,

UHMWPE Seal with EPR O-Ring

ure 1.0

Dimensions are in inches [mm]

2. UNPACKING AND INSPECTION

Carefully unpack the valve and examine the items contained in the carton.

These will include:

• Valve assembly

• User guide

• Fitting and Valve Air Hose

Inspect the unit for any damaged which may have occurred in transit. If such

damage has occurred, notify the carrier at once. Claim for damage must be made

by the consignee to the carrier, and should be reported to the manufacturer.

3. DESCRIPTION

The TS934/TS941 Series Spool Valve is based on a balanced spool design for a

fast “ON/OFF” dispensing action. The hardened spool slides in reinforced

UHMWPE seals and it suitable for use with fluids having a viscosity of 100 to

over 3,000,000 cps, at a pressure up to 2,500 psi (172.4bar). An internal spring

return makes the valve fully adaptable for use with Techcon Systems time/pressure

controllers.

4. THEORY OF OPERATION

The TS934/TS941 Series Spool Valve is normally closed. When air pressure is

applied at air inlet port (1), the spool assembly (2) moves forward to the open

position, allowing the fluid to flow from the fluid inlet port (3) to the fluid outlet

port (4). Relieving the input air pressure allows the return spring (5) to pull the

spool assembly back in the close position, stopping the fluid flow. During the

closing position, the spool movement creates a “suck-back” anti-drip feature.

An Oil chamber (6) is provided, above the upper seal, to create an additional liquid

seal that will prevent moisture from being carried on the spool. The auxiliary air

inlet port (7) is provided so that the valve may be connected for air closing with or

without the spring.

Open Position

Closed Position

Figure 2.0

9. REPAIR KITS

*These kits fit all variations of Techcon Systems High Pressure Spool Valves

9.1 Alternative Seals

Techcon Systems offers alternative seal materials for different applications. The

standard seals installed in the valve are made of UHMWPE with an EPR o-ring.

Part number = TSD400-69

The following alternative seals are available:

PART NUMBER DESCRIPTION

TSD400-56

Teflon® seal with EPR expander O-ring

TSD400-58

Teflon® seal with Viton expander O-ring

TSD400-49

Teflon® seal with stainless steel expander spring

ITEM PART NUMBER DESCRIPTION QTY

1 TSD1145-1 Fiber Washer 1

2 TSD1400-115C Chamber O-Ring, EPR 2

3 TSD400-69 U-Cup Seal 2

4 TSD1400-008B Spool Shaft O-Ring, Viton 1

5 TSD1400-025A Cap O-Ring, Buna 1

6 TSD1399-2 Piston U-Cup Seal 1

7 934-000-005 Spool Shaft 1
