4 2. UNPACKING AND INSPECTION Carefully unpack the valve and examine the items contained in the carton . These will inclu de: • Valve asse mbly • User guide • Fitting and Valve Air Hose Inspect the unit for any damaged w…

10. STANDARD ACCESSORIES

10.1 OPTIONAL ACCESSORIES

10.2 FITTINGS AND TUBINGS

10.3 BRACKETS

PART NUMBER DESCRIPTION

TSD700-1 Oiler Cup

TSD931-15 ¼'' NPT X Female Luer Lock Fitting

TSD918-3 Elbow, ¼-18 NPT X ¼-18 NPT

TSD931-7 Tip Adaptor ¼'' NPT

TSD912-15 Reducer, ⅜'' NPT X ¼'' NPT

TS60C-CON Cleaning Gel, 6oz (177ml)

PART NUMBER DESCRIPTION

918-006-000 Tip adapter, Metal (Nickel Plated Brass)

934-003-000 Adjustable Suck Back Cap

PART NUMBER DESCRIPTION

TSD1002-38 ¼'' NPT to ¼'' O.D. Tube

TSD1566-5 ¼'' NPT to ⅜'' O.D. Tube

TSD1099-22 ⅜'' O.D. X ¼'' I.D. Tube, Black, Polyethylene

TSD1099-23 ⅜'' O.D. X ¼'' I.D. Tube, Clear, Polyethylene

TSD1099-24 ¼'' O.D. X ⅛'' I.D. Tube, Clear, Polyethylene

TSD1099-25 ¼'' O.D. X ⅛'' I.D. Tube, Black, Polyethylene

TSD1099-45 6mm O.D. X 4mm I.D, Clear, Polyethylene

TSD1099-46 6mm O.D. X 4mm I.D, Black, Polyethylene

PART NUMBER DESCRIPTION

918-033-000 Productions Master Stand (Base & Support)

918-000-012 Rod Clamp Assembly

918-000-013 TS934/TS941 Series Spool Valve Bracket

918-000-009 6'' Non-Threaded Mounting Rod

1. SPECIFICATIONS

TS934/TS941 TS934A/TS941A

Size

4.7'' length X 1.5'' diameter

(119.4mm X 38.1mm)

4.7'' length X 1.5'' diameter

(119.4mm X 38.1mm)

Weight

TS934 = 1.15lb (522g)

TS941 = 1.6lb (728g)

TS934A = 1.16lb (526g)

TS941A = 1.61lb (731g)

Fluid Inlet

Port

⅜'' NPT female ¼'' NPT female

Fluid Outlet

Port

¼'' NPT female ¼'' NPT female

Air Inlet Port ¼'' NPT female ¼'' NPT female

Auxiliary Air

Inlet Port

⅛'' NPT ⅛'' NPT

Minimum

Air Pressure

70 psi (4.8bar)

Maximum

Fluid

Pressure

2,500 psi (172.4bar) 2,500 psi (172.4bar)

Operating

Frequency

Exceeds 400 cycles/min. Exceeds 400 cycles/min.

Wetted Parts

TS941 Fluid housing = Type 303 SS

TS934 Fluid Housing =Aluminum

Hard Chrome plated Stainless Steel,

UHWPE Seal with EPR O-Ring

TS941A Fluid housing = Type 303 SS

TS934A Fluid Housing = Aluminum

Hard Chrome plated Stainless Steel,

UHMWPE Seal with EPR O-Ring

ure 1.0

Dimensions are in inches [mm]

2. UNPACKING AND INSPECTION

Carefully unpack the valve and examine the items contained in the carton.

These will include:

• Valve assembly

• User guide

• Fitting and Valve Air Hose

Inspect the unit for any damaged which may have occurred in transit. If such

damage has occurred, notify the carrier at once. Claim for damage must be made

by the consignee to the carrier, and should be reported to the manufacturer.

3. DESCRIPTION

The TS934/TS941 Series Spool Valve is based on a balanced spool design for a

fast “ON/OFF” dispensing action. The hardened spool slides in reinforced

UHMWPE seals and it suitable for use with fluids having a viscosity of 100 to

over 3,000,000 cps, at a pressure up to 2,500 psi (172.4bar). An internal spring

return makes the valve fully adaptable for use with Techcon Systems time/pressure

controllers.

4. THEORY OF OPERATION

The TS934/TS941 Series Spool Valve is normally closed. When air pressure is

applied at air inlet port (1), the spool assembly (2) moves forward to the open

position, allowing the fluid to flow from the fluid inlet port (3) to the fluid outlet

port (4). Relieving the input air pressure allows the return spring (5) to pull the

spool assembly back in the close position, stopping the fluid flow. During the

closing position, the spool movement creates a “suck-back” anti-drip feature.

An Oil chamber (6) is provided, above the upper seal, to create an additional liquid

seal that will prevent moisture from being carried on the spool. The auxiliary air

inlet port (7) is provided so that the valve may be connected for air closing with or

without the spring.

Open Position

Closed Position

Figure 2.0

9. REPAIR KITS

*These kits fit all variations of Techcon Systems High Pressure Spool Valves

9.1 Alternative Seals

Techcon Systems offers alternative seal materials for different applications. The

standard seals installed in the valve are made of UHMWPE with an EPR o-ring.

Part number = TSD400-69

The following alternative seals are available:

PART NUMBER DESCRIPTION

TSD400-56

Teflon® seal with EPR expander O-ring

TSD400-58

Teflon® seal with Viton expander O-ring

TSD400-49

Teflon® seal with stainless steel expander spring

ITEM PART NUMBER DESCRIPTION QTY

1 TSD1145-1 Fiber Washer 1

2 TSD1400-115C Chamber O-Ring, EPR 2

3 TSD400-69 U-Cup Seal 2

4 TSD1400-008B Spool Shaft O-Ring, Viton 1

5 TSD1400-025A Cap O-Ring, Buna 1

6 TSD1399-2 Piston U-Cup Seal 1

7 934-000-005 Spool Shaft 1

SPARE PARTS, CONT.

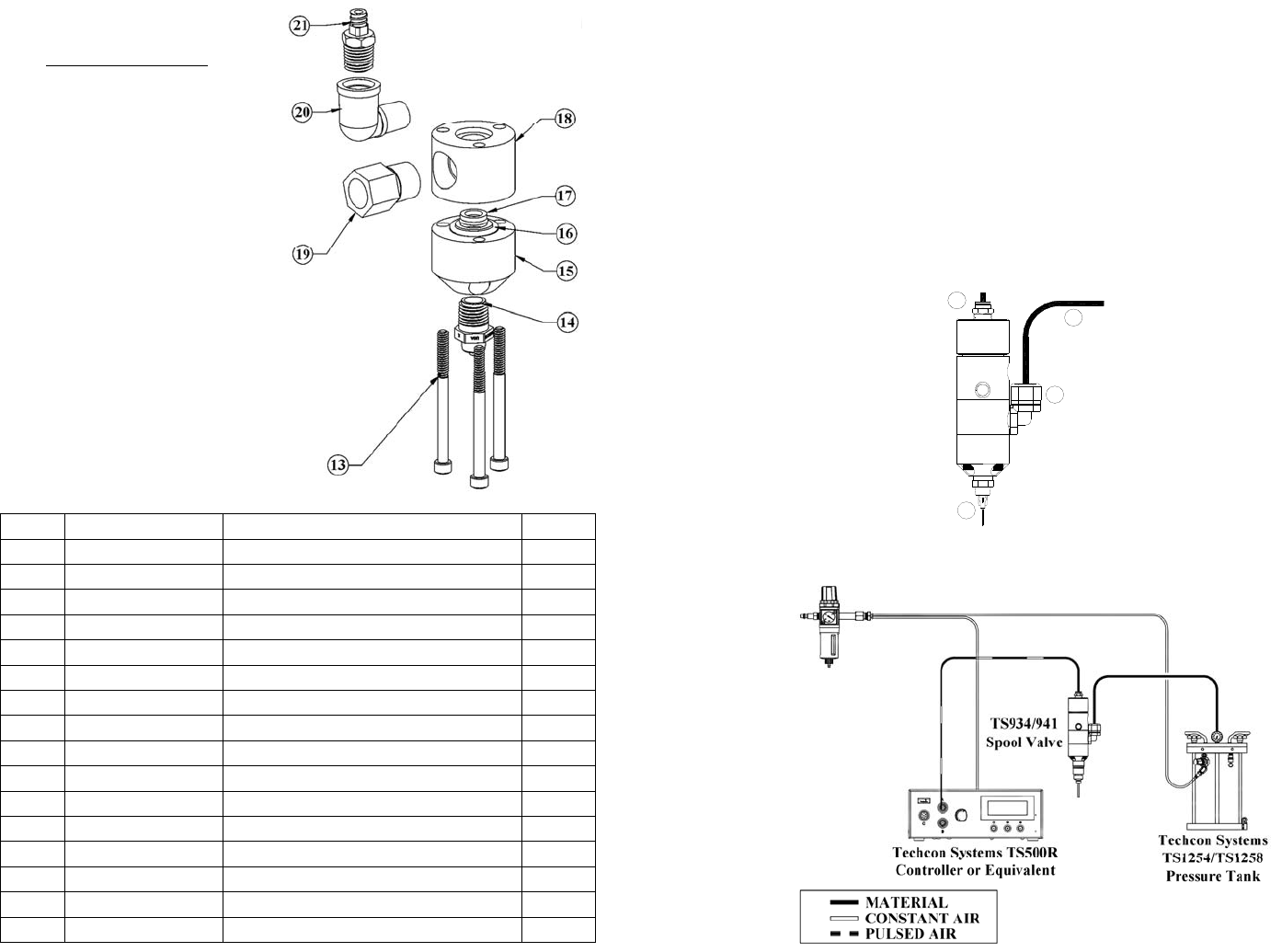

Valve Front Section

ITEM PART NUMBER DESCRIPTION QTY

13 TSD1103-323 Valve Assembly Screw 3/4

14 TSD931-7 Tip Adaptor ¼'' NPT 1

15* 934-000-003 Material Outlet Block (Al) For TS934 1

15* 934A-000-003 Material Outlet Block (Al) For TS934A 1

15* 941-000-002 Material Outlet Block (SS) For TS941 1

15* 941A-000-002 Material Outlet Block (SS) For TS941A 1

16 TSD1400-115C Chamber O-Ring, EPR 2

17 TSD400-69 U-Cup Seal 2

18* 934-000-002 Material Inlet Block (Al) For TS934 1

18* 934A-000-002 Material Inlet Block (Al) For TS934A 1

18* 941-000-001 Material Inlet Block (SS) For TS941 1

18* 941A-000-001 Material Inlet Block (SS) For TS941A 1

19 TSD912-15 Reducer, ⅜'' NPT X ¼'' NPT 1

20 TSD918-3 Elbow, ¼-18 NPT X ¼-18 NPT 1

21 TSD931-15 ¼'' NPT X Female Luer Lock Fitting 1

TSD700-1 Oiler Cup, (NOT SHOWN) 1

Recommended lubricant:

“Parker -O-Lube”, or equivalent.

All O-Rings & seals must be

lubricated with the exception of

TSD400-69, which must remain

dry.

5. SETUP INSTRUCTIONS

1. Connect the fluid reservoir feed tube (1) to the valve inlet port (2).

2. Connect the valve air line (3) to the valve controller or other pneumatic

device that is used to control the valve.

3. Connect appropriate nozzle or dispensing tip (4) to the fluid outlet port.

4. Set the valve controller pressure at 70 psi (4.8bar).

5. Set the fluid reservoir pressure. Do not exceed 2,500 psi (172.4bar).

(Strengthened hoses are required with pressures exceeding 100 psi (6.9bar).

6. Make sure all connections are correctly tightened.

7. Place container under the valve outlet and activate the valve until the fluid

flows steady.

The amount of fluid that flows through the valve is determined by:

• Valve open time

• Fluid reservoir pressure

• Dispensing tip size

NOTE: An adjustable “suck-back” cap part number 934-003-000 is available.

6. TYPICAL SYSTEM SETUP

Figure 3.0

Figure 4.0
