193-5100 CUKYX 2.3 传送部 1 1-14 2.3 传送部 1 No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty 7 Fixed Chute Unit 1 7-1 Universal T ee 7-2 Barb Fitting 7-3 Barb Elbow 8 Movable Chute Unit 8-1 Universal T ee 1 8-2 Barb F…
193-5100
CUKYX

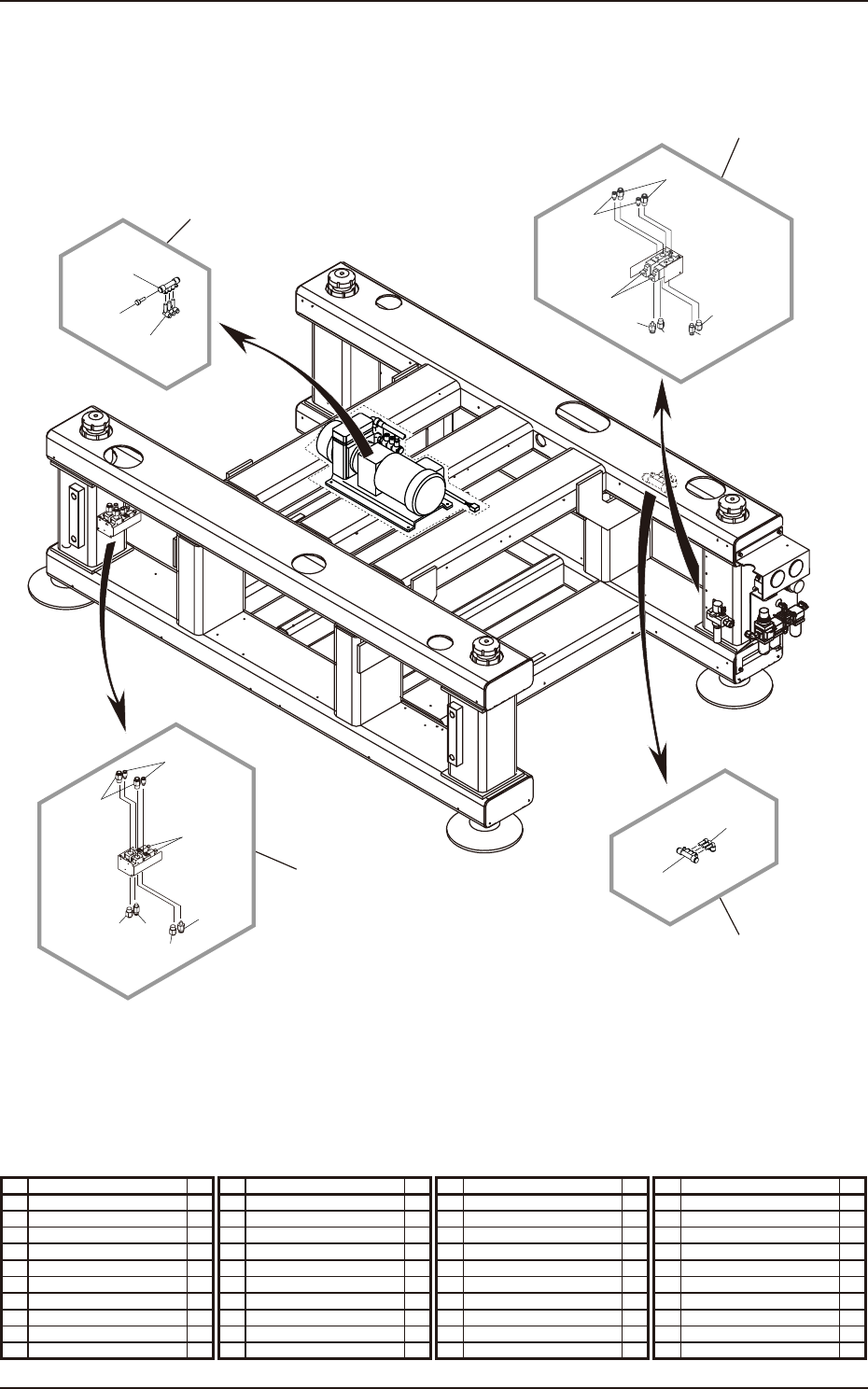

2.2 主机 2
1-13
2.2 主机 2
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
4 Solenoid Valve Unit 1 5-3 Half Union 2 7-3 Plug 2
4-1 Solenoid Valve 2 5-4 Half Union 2
4-2 Half Union 2 5-5 Half Union 1
4-3 Half Union 2 5-6 Half Union 1
4-4 Half Union 2 6 Manifold Unit 1
4-5 Half Union 1 6-1 Manifold 1
4-6 Half Union 1 6-2 Straight Elbow 1
5 Solenoid Valve Unit 1 7 Manifold Unit 1
5-1 Solenoid Valve 2 7-1 Manifold 1
5-2 Half Union 2 7-2 Straight Elbow 1
7-1
7-3
7-2
7
4
6-1
6-2
6
5-1
5-5
5-4
5-4
5
5-6
5-2
5-3
4-1
4-2
4-3
4-4
4-4
4-6
4-5
Fig_1-5S
193-5100
CUKYX

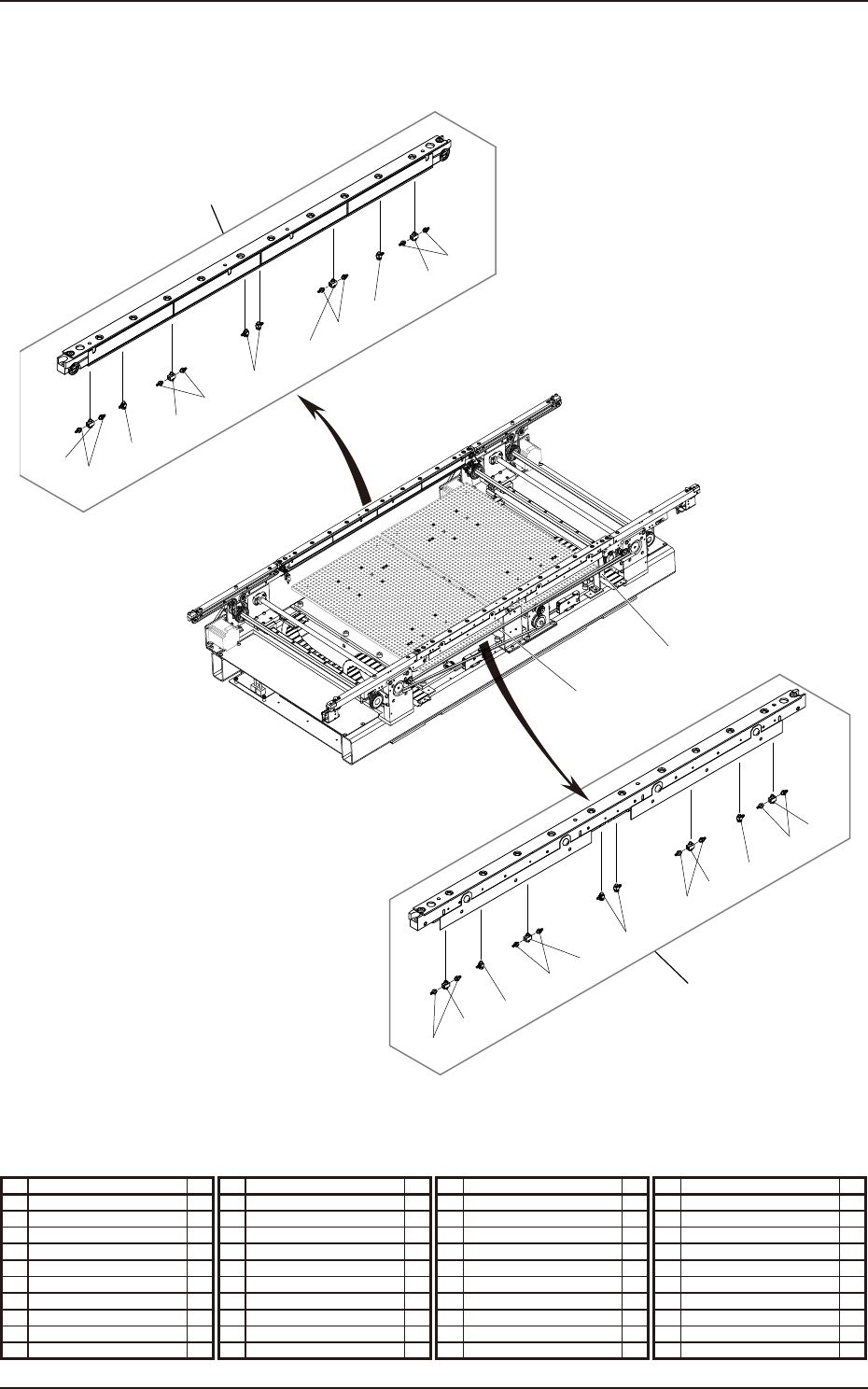

2.3 传送部 1
1-14
2.3 传送部 1
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
7 Fixed Chute Unit 1
7-1 Universal Tee
7-2 Barb Fitting
7-3 Barb Elbow
8 Movable Chute Unit
8-1 Universal Tee 1
8-2 Barb Fitting
8-3 Barb Elbow
9 PCB Stopper 1
10 PCB Stopper 1
8
7
8-2
8-2
8-3
8-2
8-2
8-1
8-1
8-1
8-1
7-1
7-1
7-1
7-3
7-2
7-2
7-2
7-2
7-1
7-3
7-3
8-3
8-3
9
10
Fig_1-7SA
193-5100
CUKYX

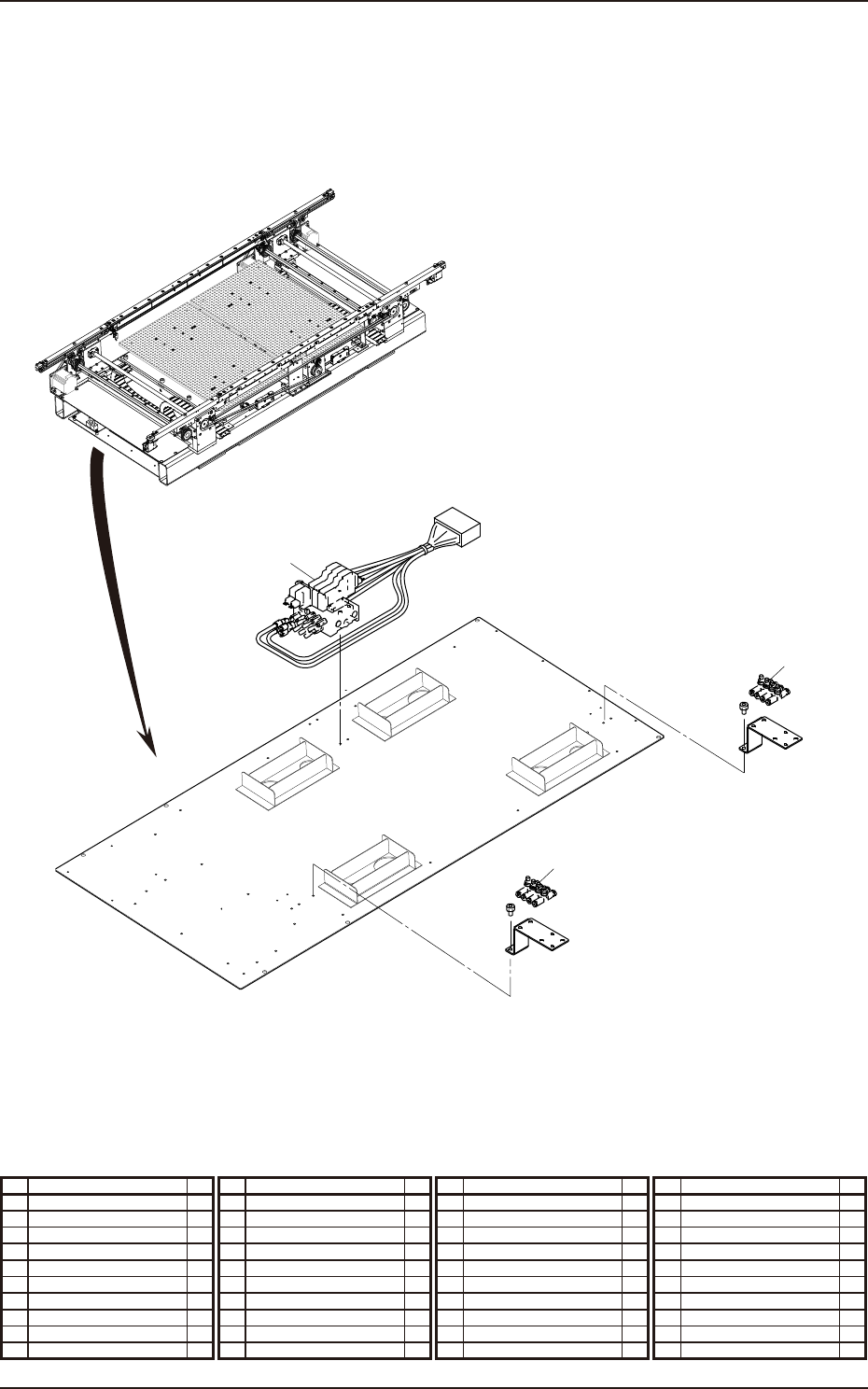

2.4 传送部
1-15
2.4 传送部
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
6 Solenoid Valve 1
11 Speed Controller 4
12 Speed Controller 4
6
11
12
Fig_1-8SA
