2
Packing List
The following items are included:
Flexible Arm ................................................ 1 unit
Manual ............................ 1 unit
Ref. 0035523
Clamp .......................................................... 2 units
Screws* ........................ 2 units
DIN-965 M4x20
Washers* ...................... 2 units
DIN-9021 ø4.3mm
This manual corresponds to the following reference:
FAE072
- Total length (tube comressed): 1.20m / 47.24in
- Max. operating distance: 1.00m / 39.37in (see page 4)
* As an alternative to the clamp, the screws and washers can be used to fix the flexible arm to the workbench.
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - negro plano
200 mm
300 mm
www.jbctools.com
STATION 1
Filter
STATION 2
PORT 1
PEDAL 1 PEDAL 2
FAE2
FUME EXTRACTOR
PORT 2
STATION 3 STATION 4
OK
70 cm / 27.6 in max.
www.jbctools.com
STATION 1
Filter
STATION 2
PORT 1
PEDAL 1 PEDAL 2
FAE2
FUME EXTRACTOR
PORT 2
STATION 3 STATION 4
OK
3
Assembly Example
Clamp for mounting
the flexible arm. The
clamp is suitable for
a table thickness of
approx. 60 mm or
less.
* The flexible arm can also
be fixed onto the workbench
with the supplied screws and
washers.
FAE 072
Flexible Arm with
Clamp - ø50mm
Bear in mind the installation
dimensions (see page 5
below)
FAE2*
Fume Extractor
FAE010*
Flexible Hose ø50mm
Total length: ~1.6m / ~63in
Connect the flexible hose to the
flexible arm
* Not included, sold separately.
100 cm / 39.4 in max.
4

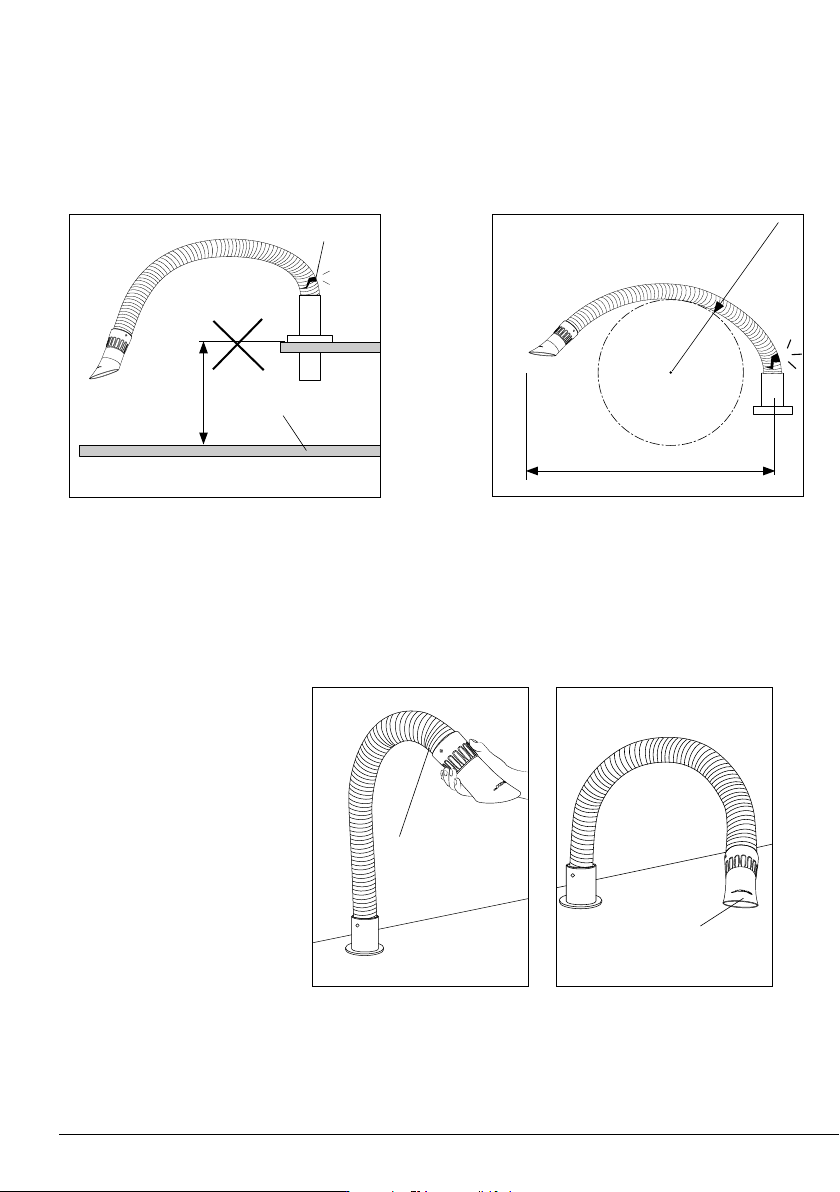

Hanging arm
no distance
To avoid breaking the arm, do not extend the
arm more than 100 cm / 39.37 in from the
center of its base and do not go below the
minimum bend radius of 20 cm / 7.87 in.
workbench
breakage
Do not install the flexible arm on shelves or
higher levels than the work bench. Forced
bending radii can cause the arm to break.
How to use
min. bending
radius
20cm
7.87in
Max. operating distance
1.00m / 39.37in
Arm Installation
Arm Positioning
Thanks to the flexibility of
the arm, its position can be
adapted to the particular
working environment and
conditions.
... or with the nozzle resting on
the workbench.
The arm can be used in an
upright position with the nozzle
hanging over the workplace ...
Nozzle resting
on the workbench
