Pneumatic timer PZVT
Dimensions

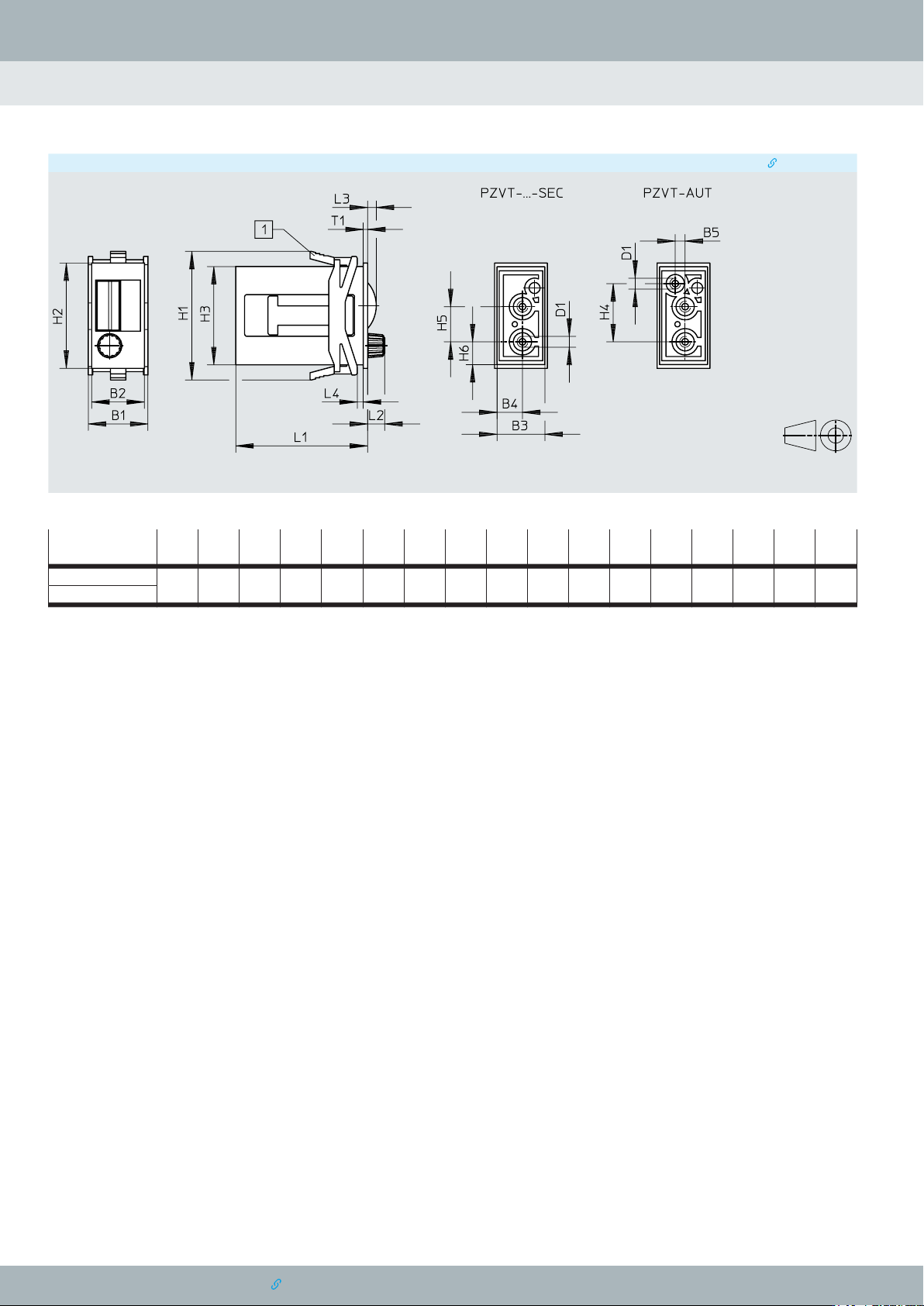

Dimensions – Timer PZVT Download CAD data www.festo.com
[1] Clamping frame included in the scope of delivery
B1 B2 B3 B4 B5 D1 H1 H2 H3 H4 H5 H6 L1 L2 L3 L4 T1
max.
PVZT-...-SEC
27,2 24 21,8 11,6 4,5 M5 58,6 48 44,6 26,5 16 10,4 60 7,8 3,9 14 2,5
PVZT-AUT
5
2024/08 www.festo.com/catalogue/...
537824956 | | 19.08.2024
Pneumatic timer PZVT
Dimensions
Dimensions – Protective cap with rotary knob PZ-SK-2 Download CAD data www.festo.com
B1 B2 D1 D2 H1 H2 H3 H4 H5 H6 L1 L2
⌀ ⌀
PZ-SK-2 27,5 18,5 12 4,3 80 63 51 14 8 5 64,5 51
6
www.festo.com/catalogue/... 2024/08
537824956 | | 19.08.2024
Pneumatic timer PZVT
Dimensions
Dimensions – Protective cap with lock PZ-SS-2 Download CAD data www.festo.com
B1 D1 H1 H2 H3 H4 H5 L1 L2
⌀
PZ-SS-2 18,5 4,3 80 63 51 14 8 64,5 51
