5
2024/08 www.festo.com/catalogue/...
537824956 | | 19.08.2024
Pneumatic timer PZVT
Dimensions

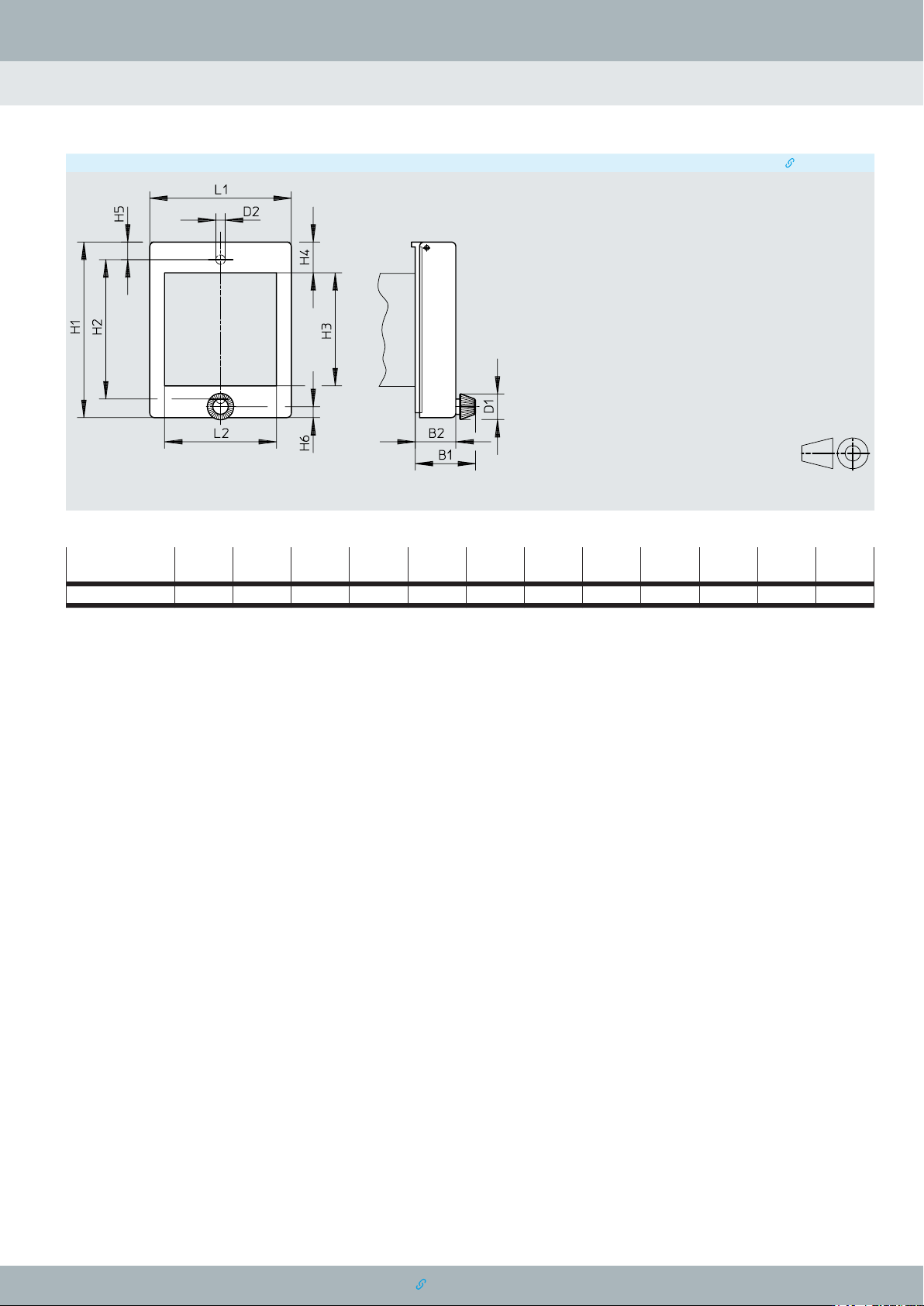

Dimensions – Protective cap with rotary knob PZ-SK-2 Download CAD data www.festo.com
B1 B2 D1 D2 H1 H2 H3 H4 H5 H6 L1 L2
⌀ ⌀
PZ-SK-2 27,5 18,5 12 4,3 80 63 51 14 8 5 64,5 51
6
www.festo.com/catalogue/... 2024/08
537824956 | | 19.08.2024
Pneumatic timer PZVT
Dimensions

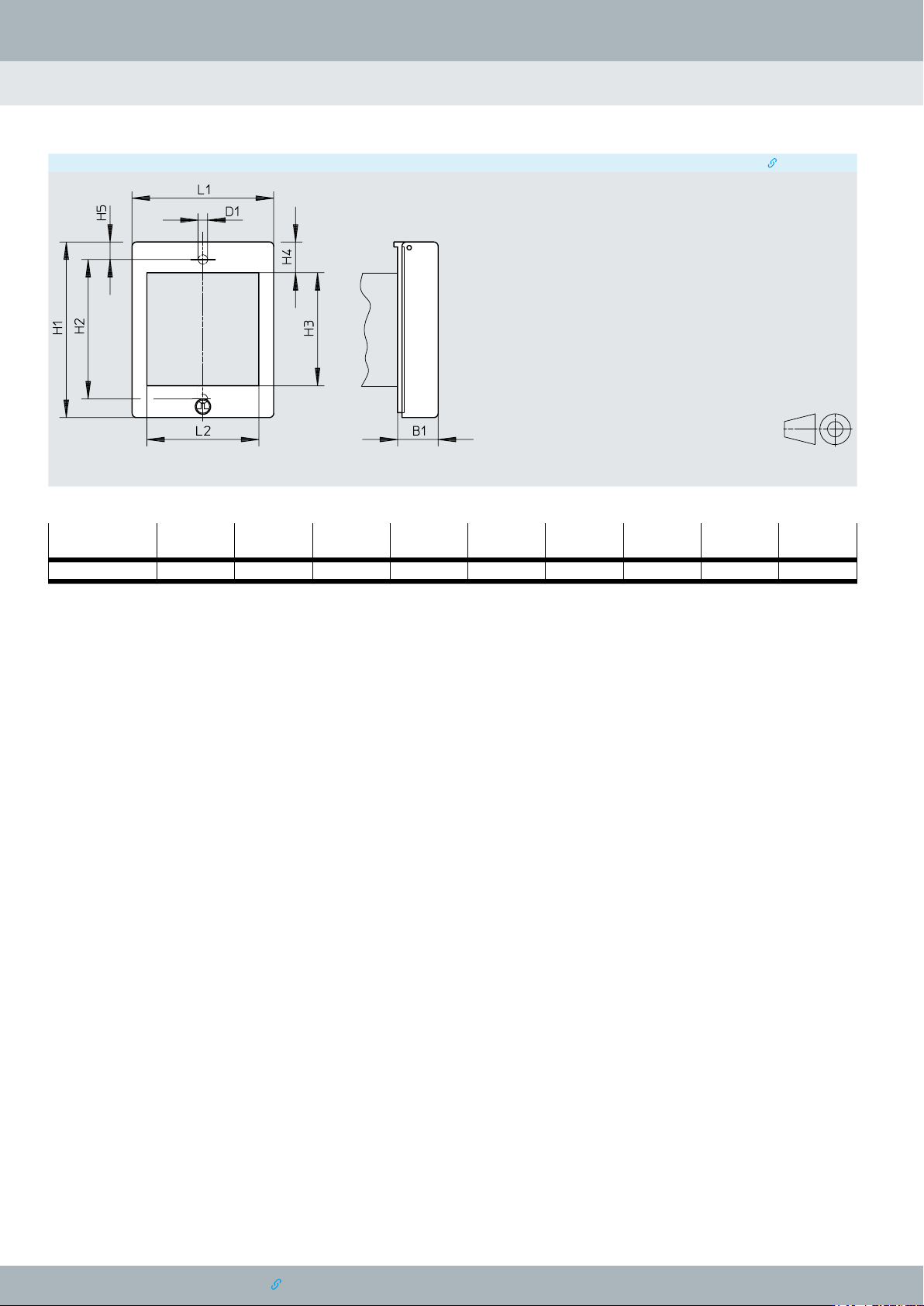

Dimensions – Protective cap with lock PZ-SS-2 Download CAD data www.festo.com
B1 D1 H1 H2 H3 H4 H5 L1 L2
⌀
PZ-SS-2 18,5 4,3 80 63 51 14 8 64,5 51
7
2024/08 www.festo.com/catalogue/...
537824956 | | 19.08.2024
Pneumatic timer PZVT
Dimensions

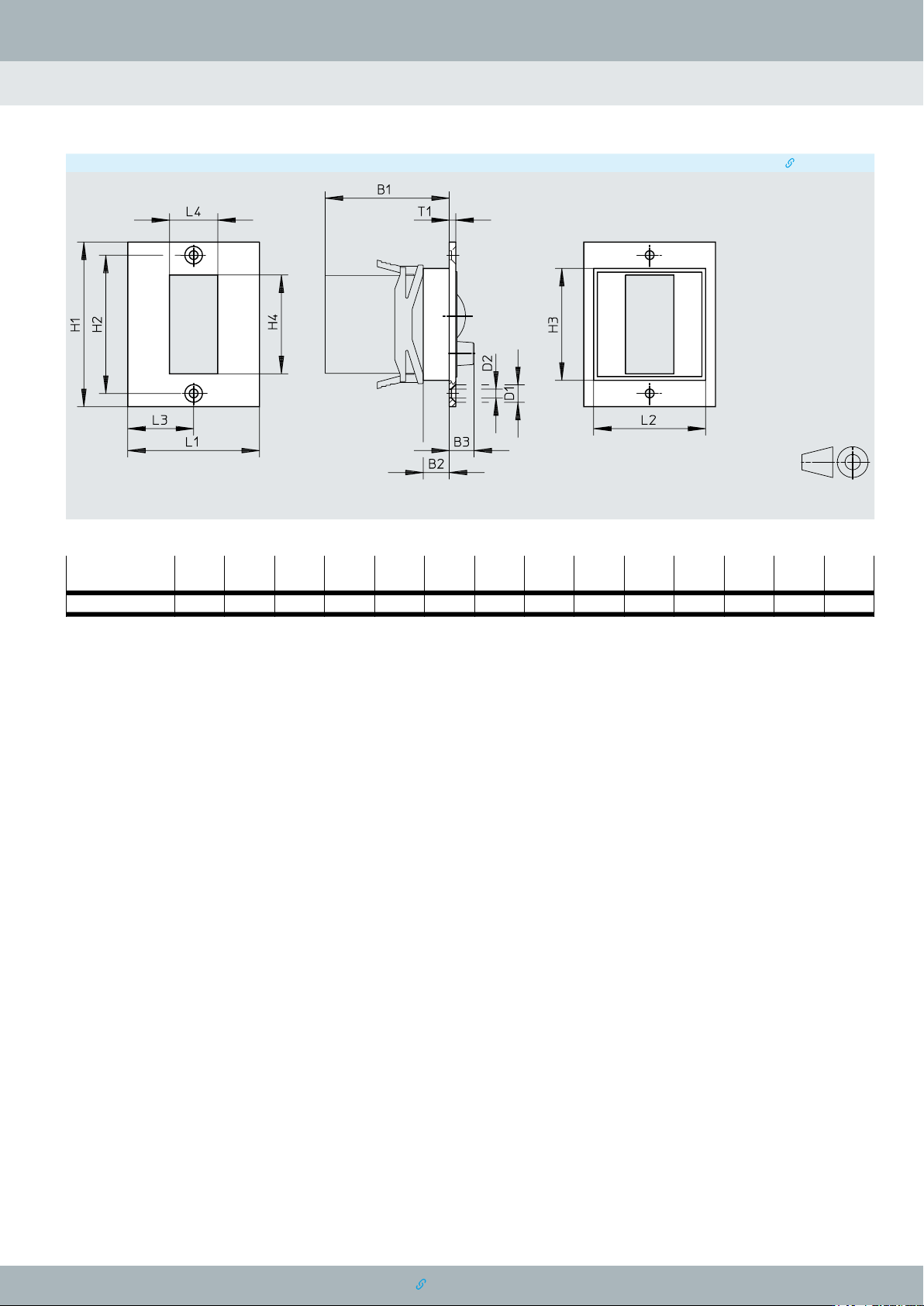

Dimensions – Panel frame Download CAD data www.festo.com
B1 B2 B3 D1 D2 H1 H2 H3 H4 L1 L2 L3 L4 T1
⌀ ⌀
PZVT-FR 56,5 12 11,3 8,2 4,3 75 63 51 45 60 51 30 22 3
