8
www.festo.com/catalogue/... 2024/08
537824956 | | 19.08.2024
Pneumatic timer PZVT
Dimensions
Dimensions – Mounting base PZVT-S-DIN Download CAD data www.festo.com
[1] Mounting plate MPL-MUS/PZ-H
[2] H-rail to EN60715
B1 B2 B3 D1 H1 H2 H3 H4 H5 H6 H7 L1 L2 L3 L4
PZVT-S-DIN 24 12,7 12 M5 68,5 27,3 ~20 20 16 5,3 4 ~84 ~94 28 14,5
9
2024/08 www.festo.com/catalogue/...
537824956 | | 19.08.2024
Pneumatic timer PZVT

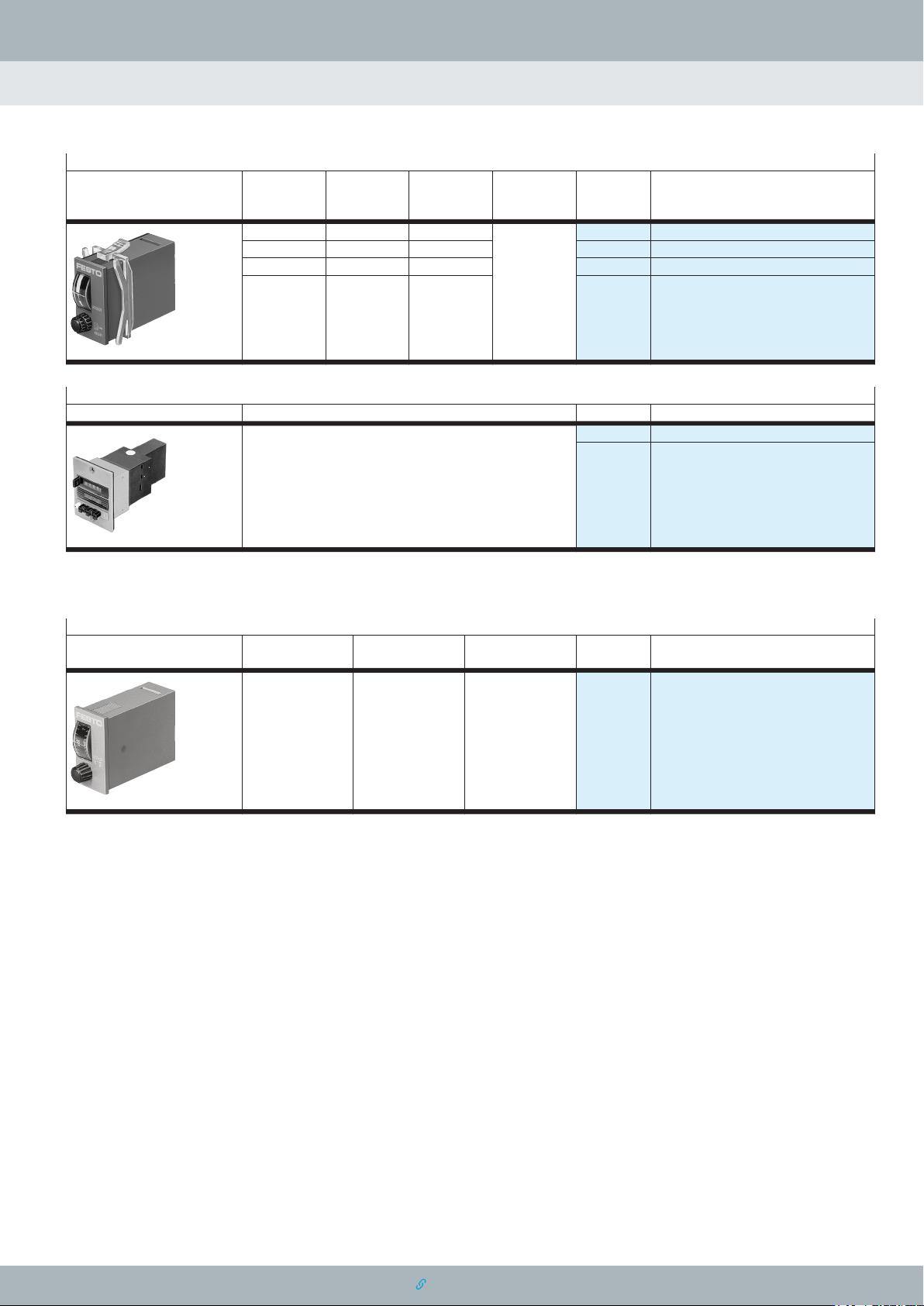

Ordering data
Ordering data – Timer
Adjustable delay
time
Repetition accu-
racy of time set-
ting
Adjustment accu-
racy
Product weight Part no. Type
0.2 ... 3 s ± 0.1 s ± 0.3 s 45 g 158495 PZVT-3-SEC
2 ... 30 s ± 0.3 s ± 0.6 s 150238 PZVT-30-SEC
8 ... 120 s ± 1.2 s ± 3 s 177616 PZVT-120-SEC
20 ... 300 s ± 3 s ± 6 s 150239 PZVT-300-SEC
Ordering data – Long-term timer
Short type code
1)
Part no. Type
PZVT 13988 PZVT-999-SEC-B
13989 PZVT-99999-MIN-B
1) Adjustable delay time:
PZVT-999-SEC-B: max. 16.6 min
PZVT-99999-MIN-B: max. 69.4 days
Ordering data – Reset module
Adjustable delay time Repetition accuracy of
time setting
Product weight Part no. Type
0.2 ... 2 s ± 0.3 s 50 g 158496 PZVT-AUT
