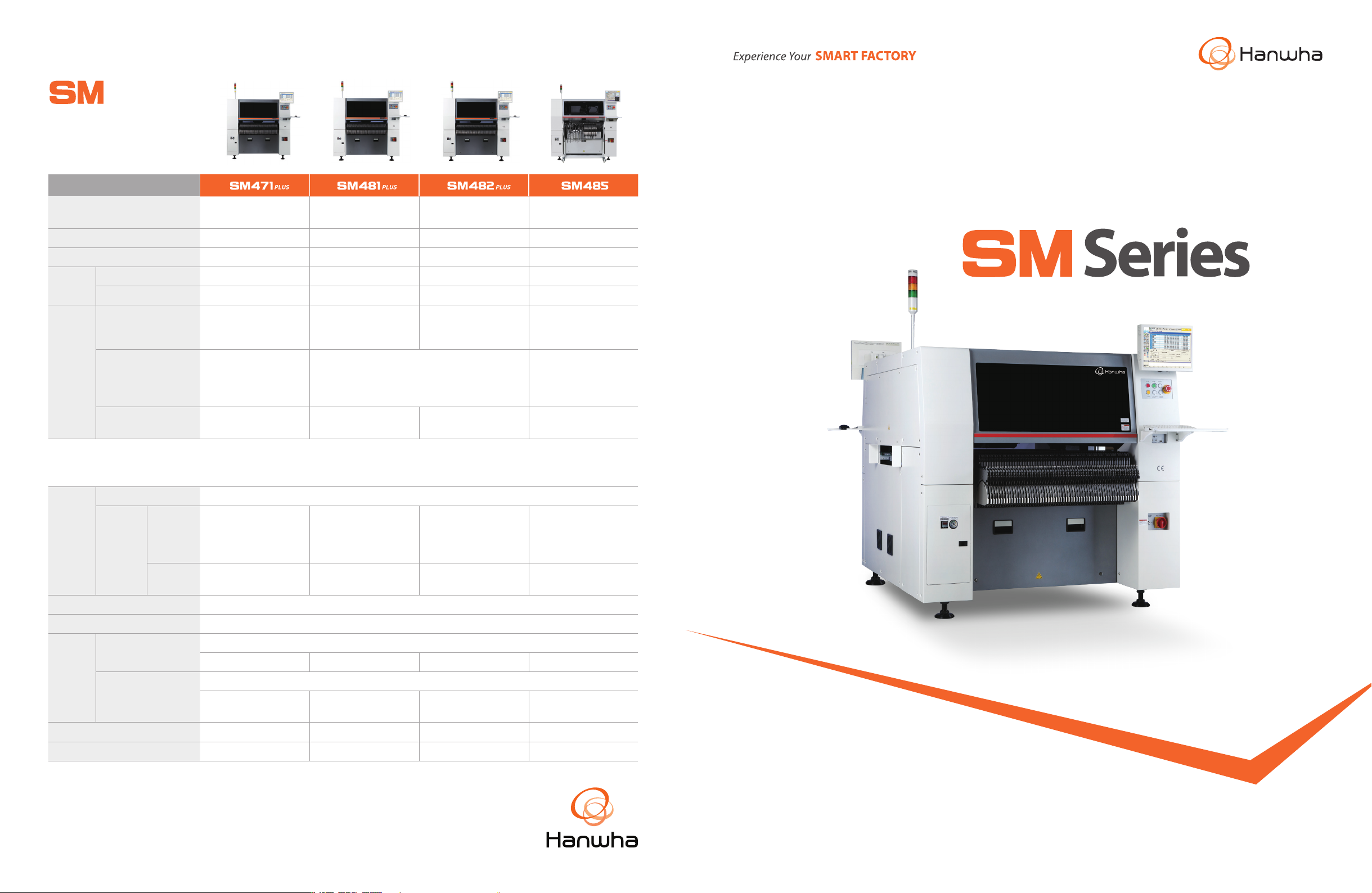

S tandard of Mid-class Model Name Alignment Fly Camera Fly Camera + Fix Camer a (Option) Fly Camera + Fix Camer a Fly Camera + Fix Camer a The number of spindles 10 spindles x 2 Gantry 10 spindles x 1 Gantry 6 spindles x…
Standard of Mid-class
Model Name
Alignment Fly Camera
Fly Camera
+ Fix Camera (Option)
Fly Camera
+ Fix Camera
Fly Camera
+ Fix Camera
The number of spindles 10 spindles x 2 Gantry 10 spindles x 1 Gantry 6 spindles x 1 Gantry 4 spindles x 1 Gantry
Placement Speed (Optimum) 78,000 CPH 40,000 CPH 30,000 CPH 22,000 CPH
Placement
Accuracy
Chip ±40μm @ Cpk≥ 1.0 ±40μm @ Cpk≥ 1.0 ±40μm @ Cpk≥ 1.0 ±40μm @ Cpk≥ 1.0
QFP ±50μm @ Cpk≥ 1.0 ±30μm @ Cpk≥ 1.0 ±30μm @ Cpk≥ 1.0 ±30μm @ Cpk≥ 1.0
Component
Range
* Fly Camera 0402 ~ □14mm 0402 ~ □16mm
0603 ~ □22mm
(*** 0402 ~ □14mm)
0402 ~ □21mm
** Fix Camera -
□16mm ~□42mm (Standard)
□42mm ~□55mm (MFOV)
L55mm ~ L75mm Connector (MFOV)
□16mm ~□42mm (Standard)
□42mm ~□55mm (MFOV)
L75mm ~ L150mm
Connector (MFOV)
Max. Height 12mm (Fly)
10mm (Fly)
15mm (Fix)
12mm (Fly)
15mm (Fix)
15mm (Fly)
26mm (Fix)
*
SM471
PLUS, SM481PLUS , SM485 Fly Camera
Spec. : Based on Mega FOV 24mm (
SM482 PLUS
Fly Camera Spec. : Based on Mega FOV 25mm)
**
SM481
PLUS, SM482 PLUS , SM485 Fix Camera
Spec. : Based on Mega FOV 45mm (Mega FOV 35mm : Option)
***
SM482
PLUS
can mount 0402 ~ □14mm when Fly Camera Maga FOV 16mm is applied.
PCB Size
(mm)
Min. 50(L) x 40(W)
Max.
Single Lane
510(L) x 460(W) (Standard)
610(L) x 460(W) (Option)
460(L) x 400(W)(Standard)
510(L) x 460(W) (Option)
610(L) x 510(W) (Option)
1,500(L) x 460(W) (Option)
460(L) x 400(W) (Standard)
510(L) x 460(W) (Option)
610(L) x 510(W) (Option)
1,200(L) x 510(W) (Option)
460(L) x 400(W) (Standard)
740(L) x 460(W) (Option)
Dual Lane
460(L) x 250(W) (Standard)
610(L) x 250(W) (Option)
- - -
PCB Thickness (mm) 0.38 ~ 4.2
Feeder Capacity (8mm standard) 120ea/112ea (Docking Cart)
Utility
Power
3Phase AC200 / 208 / 220 / 240 / 380 / 415V ±10% (50/60Hz)
Max. 5.0kVA Max. 3.5kVA Max. 3.5kVA Max. 3.5kVA
Air Consumption
5.0~7.0kgf/cm
2
350Nℓ/min
50Nℓ/min (Vacuum Pump)
160Nℓ/min
50Nℓ/min (Vacuum Pump)
180Nℓ/min
50Nℓ/min (Vacuum Pump)
180Nℓ/min
50Nℓ/min (Vacuum Pump)
Mass (kg) Approx. 1,820 Approx. 1,655 Approx. 1,600 Approx. 1,600
External Dimension (mm) 1,650(L) x 1,690(D) x 1,485(H) 1,650(L) x 1,680(D) x 1,530(H) 1,650(L) x 1,680(D) x 1,530(H) 1,650(L) x 1,680(D) x 1,530(H)
Specications
Standard of Mid-class
Series
• USA 6000 Phyllis Dr. Cypress, CA 90630, USA Tel: +1-714-373-4200
• Europe Tel +82-70-7147-6322,6311 Fax : +82-31-8018-3721
• Asia Tel +82-70-7147-6320,6323 Fax : +82-31-8018-3721
• Korea (Head Office) 6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do 13488, Korea
•
Please note that specifications and product information in this catalog are subject to change without notice.
21%

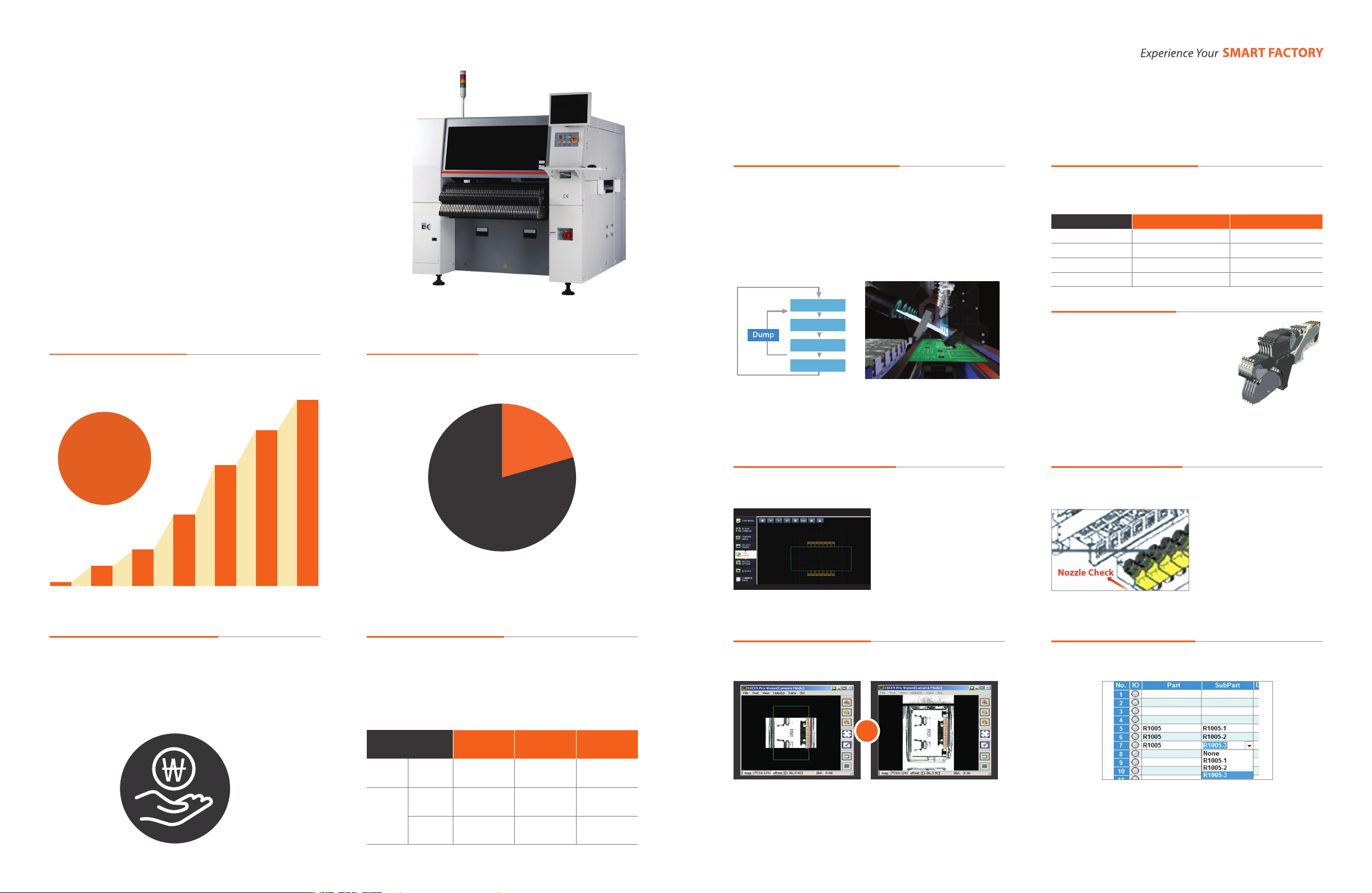

SM Series Common Feature
Added a new function maximizing the operational
convenience of customers
Know-how Accumulated over 30 Years!
With 17,000 sets having been sold since its market launch in
2005, the SM series component placers Hanwha's best selling
products. Please experience Hanwha's know-how with the SM
series component placers veried by many customers worldwide.
Convenient in-line operation through unication of main modules and in-line platform
As a standard of medium speed component placers, SM series
component placers provide all essential functions necessary
for PCB production at a reasonable price, allowing investment
to be returned in a short period of time.
Since large-sized components are not viewed in one screen, it
is hard to adjust their pickup or placement positions. In order
to remove such inconvenience, the panorama view function is
added to allow large components to be viewed within the FOV of a
camera.
When the same components are supplied from dierent component
supply devices, this function allows components to be used without
changing a PCB le and downloading a new PCB le.
Optimized to various production environments with a line-up of the
highest speed/accuracy among component placers of the same class.
Panorama View Function Multi-Vendor Component Management Function
Outstanding Cost Performance The highest performance among the
component placers of the same class
Description
SM471PLUS SM481PLUS SM482PLUS
Speed
Optimum 78,000 CPH 40,000 CPH 30,000 CPH
Accuracy
0402 ±40
㎛
±40
㎛
±40
㎛
BGA/QFP ±50
㎛
±30
㎛
±30
㎛
Description Single Lane Dual Lane
SM471PLUS Max.610(L)x460(W) Max.610(L)x250(W)
SM481PLUS Max.1,500(L)x460(W) -
SM482PLUS
Max.1,200(L)x510(W)
-
SM485
Max.740(L)x460(W)
-
21% of medium speed component placers are
SM series component placers
No. 1 in the industry
" "
A Drag & Drop component
registration system, allowing
registration of component
information through
automatic recognition and
rotation by simply clicking the
mouse. (When applying Elite2)
In addition, user convenience is further reinforced by unifying the
on-line/o-line component registration systems.
Owing to Hanwha's own On-the-y image recognition technology
which allows component recognition without stopping while
moving after component pickup, placement speed is maximized
by minimizing the moving time between the pickup position and
placement position and reducing the recognition time to zero.
Mixed use of electric and pneumatic
feeders in the same feeder base is available
for SM series component placers.
The investment in production can be
minimized by using these feeders along
with existing feeders.
※
When applying an option for a large PCB
Checks for nozzle contamination
during production to prevent
non-insertion and dumping of a
large number of components in
advance, ensuring high quality
production.
Time of inspection - Before/after ANC; before/after component
placement; and after component dumping
▶
Accumulated production of 17,000 sets
17,000
No. 1 in the industry of medium speed
component placers
Easy Component Registration
New Part Editor
On-the-y Placement Method
Component Monitoring before/after Placement
The highest applicability to long and large
PCBs among machines of the same class
Mixed Use of Electric Feeder and
Pneumatic Feeder
Component Pickup
Vision Check
Component Placement
Move to the
placement position
Hanwha Bestseller
2005 2007 2009 2011 2013 2015 2017
Fast Chip Shooter Flexible Placer
Supports for various production modes
according to production characteristics
One-side operation
1,500mm long board

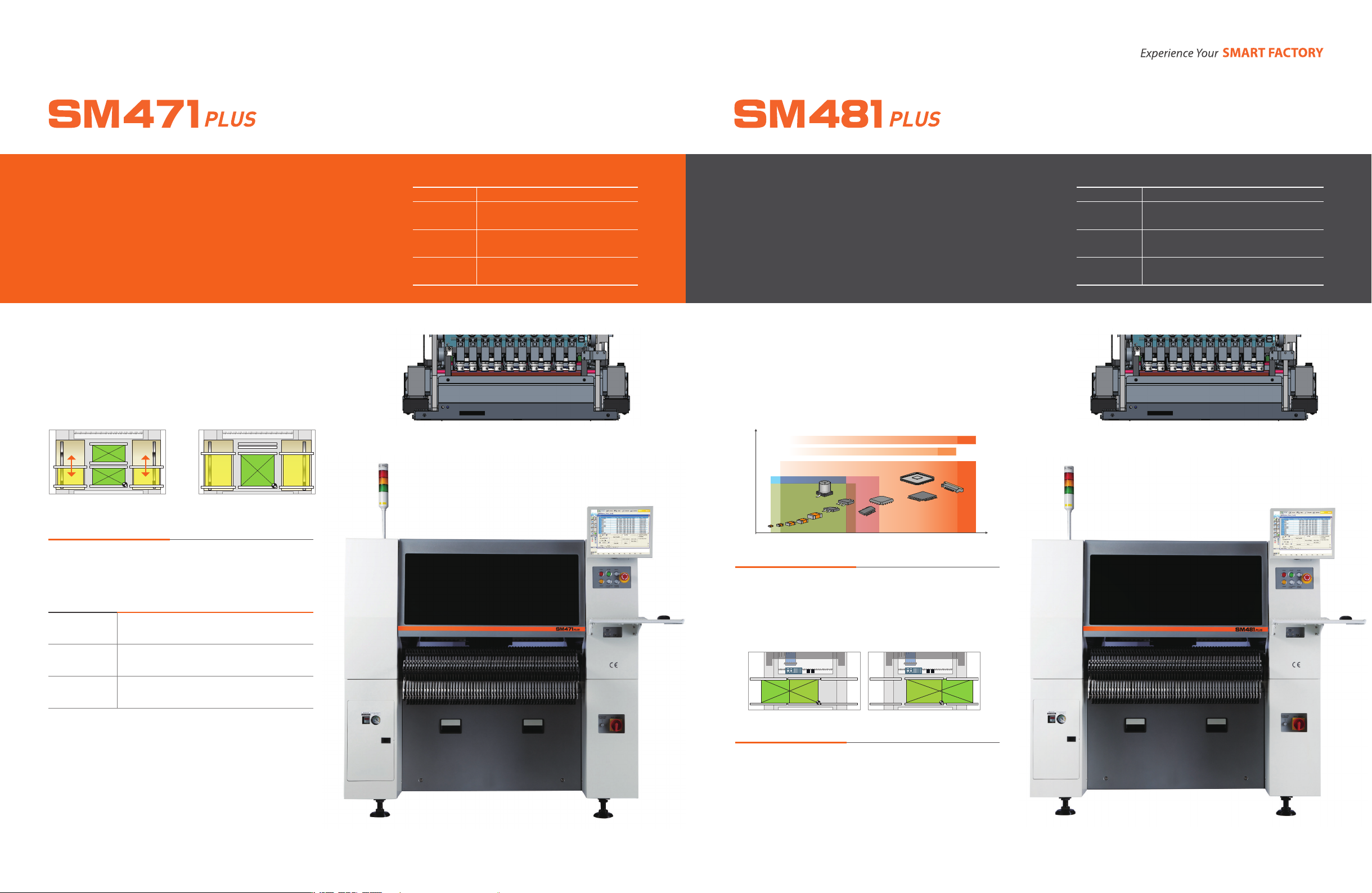

The SM471PLUS is a high performance chip shooter which applies two gantries
equipped with 10 spindles per head as well as a new Fly Camera system.
Compared to the existing SM471 model, its placement speed is increased
further to 78,000CPH, which is the highest in the world among chip shooters of
the same class. In addition, it is basically applicable to components from 0402
(01005inch) chips to maximum
□
14mm IC components. Its actual productivity
and placement quality is improved by applying high-speed and high precision
electrical feeders. With two gantries and dual lane, the SM471PLUS supports
various production modes to maximize the productivity of SM series machines.
The SM481PLUS can perform high-speed placement of chips at 40,000CPH
and QFPs at one per 1.1 seconds, respectively (each at optimum speed)
by applying the on-the-fly recognition technology patented by Hanwha,
which enables component placement at the highest speed among all
medium speed component placers. With one-gantry structure having a
high-speed piano head with 10 nozzles, the machine can be operated with
minimum manpower using one side of the machine. Being able to produce
long boards with lengths of up to 1,500mm, the machine boasts of its
applicability to the largest PCBs among SM series component placers.
Features Features
Join Mode
Common use of front and rear feeders
(less than D 250mm)
Single Mode
Production of medium- and large-sized boards
(greater than D 250mm)
Twin Mode
Separate placement at front and rear sides
(less than D 250mm)
Even when a problem occurs to one placement head or when the
components in the feeder runs short, another head can help place
components, allowing continuous production without stopping the
machine
Placement Speed
Chip 78,000CPH (Optimal)
Applicable
Component
0402(01005inch)
~ Max.
□
14mm (h12mm)
Placement
Accuracy
±40
㎛
@ Cpk ≥ 1.0 /Chip,
±50
㎛
@ Cpk ≥ 1.0 /QFP
Applicable PCB
L510xW460 (Standard)
L610xW460 (Option)
Placement Speed
Chip 40,000CPH (Optimal)
Applicable
Component
0402 ~
□
16mm (h10mm) (Fly)
~ Max.
□
55mm,L75 (h15mm) (Fix)
Placement
Accuracy
±40
㎛
@ Cpk ≥ 1.0 /Chip,
±30
㎛
@ Cpk ≥ 1.0 /QFP
Applicable PCB
L460xW400x1Lane (Standard)
L1,500xW460x1Lane (Option)
Dual lane and shuttle conveyor maximizes the
productivity of SM series component placers
10Spindle x 2Gantry 10Spindle x 1Gantry
Production speed and component coverage
suitable for general-purpose high-speed placement
General-purpose high-speed machine among SM series component
placers, which applies a high-speed piano head with 10 nozzles and an
option for an upward camera.
Dual lane production maximizes the productivity of small boards and
the shuttle conveyor ensures extensibility to the production of large
boards.
With single gantry and single lane structures optimized for machine
operation using only one side of the machine, the production area
and manpower can be utilized eciently.
Two-staged placement using an extended conveyor allows
production of long boards with lengths of up to 1,500mm.
(The SM482PLUS can produce boards with lengths of up to 1,200mm)
1,690mm
1,500mm 1,500mm
25
SM485
SM481
PLUS SM482PLUS
SM471PLUS
15
12
0402(01005inch)
□ 42 □ 55 L150
Width
(mm)
Height
(mm)
□ 14 □ 16 □ 22 □ 32 □ 42 □ 55(L75)
(MFOV)
25
15
12
10
Width
(mm)
0402 0603
1005
1608
Tantal
Transistor
Diode
ALC
471(Fly)
481(Fly)
482(Fly)
SOP
CSP
QFP
BGA
Connector
SM481/482 (Fix)
35 mm Fix Camera
45 mm Fix Camera
