NETWORKING
COMMS PROTOCOL OPTIONS
32.4 Technical Reference Manual Chapter Issue 6 Oct 06
NET_FILES Net_Files is used where remote control applications are not needed, at a
networked PC, DEK’s Off-line Editor software can be used to modify product
files, QC-Calc software can be used to access SPC data in the ‘READ-
INGS.DEK’ file and the Event Log can be read with a text editor or Remote
Event Monitor (REM).
NOTE
To set up a specific software package refer to the product manuals ‘Software
Tools for Productivity’ that are supplied with the application.
Figure 32-2 Net_Files - Typical Configuration
Net Files - File Re-direction Using TCP/IP
Networked PC
TCP/IP Network
Server
Directory Containing:
Product Files
Event Log
SPC Data
Management Information
*.Pr1, *.ISD and *.ISP
Event.dat
READINGS.DEK
DEK Printer
NETWORKING
CONNECTION TO A NETWORK SERVICE
Chapter Issue 6 Oct 06 Technical Reference Manual 32.5
CONNECTION TO A NETWORK SERVICE
Important Safety
Considerations
Whenever a machine is indirectly controlled eg, when using a network to control
its movements, there may be safety issues to consider. DEK printing machines
are fitted with several safety interlocks to protect operators and maintainers.
WARNING
SAFETY DEVICES. THE SAFETY FEATURES DESIGNED IN TO THE MACHINE
ARE FOR THE PROTECTION OF ALL OPERATOR AND MAINTENANCE
PERSONNEL. DEK STRONGLY RECOMMEND SAFETY DEVICES ARE NEVER
OVERRIDDEN.
In addition to the above warning and before operating the machinery remotely,
DEK recommend that adequate safety systems are in place to ensure that all
personnel are clear of the moving parts in the printer and any external machin-
ery which may be in partial or full control of the networked host.
Minimum System
Requirement
The minimum system requirement for the host PC is as follows:
• IBM Compatible PC (running Windows NT4 minimum)
• VDU with 800 x 600 Pixels (256 colours)
• LAN connection for GEM or Net_Files
Operating
Environment
The operating system of the host computer must be capable of communicating
with a DEK printer running Windows XP.
NOTE
Where DEK Software for Productivity Tools eg, Remote Product Changeover,
Off-Line editor etc are to be used, the installer must be logged on with Admin-
istrator level access in order for the security key device driver software to be
installed.
NETWORKING
CONNECTION TO A NETWORK SERVICE
32.6 Technical Reference Manual Chapter Issue 6 Oct 06
Hardware
Installation
A LAN RJ45 connector is available at the external services rear panel, this
connector provides the interface to the customer’s network.

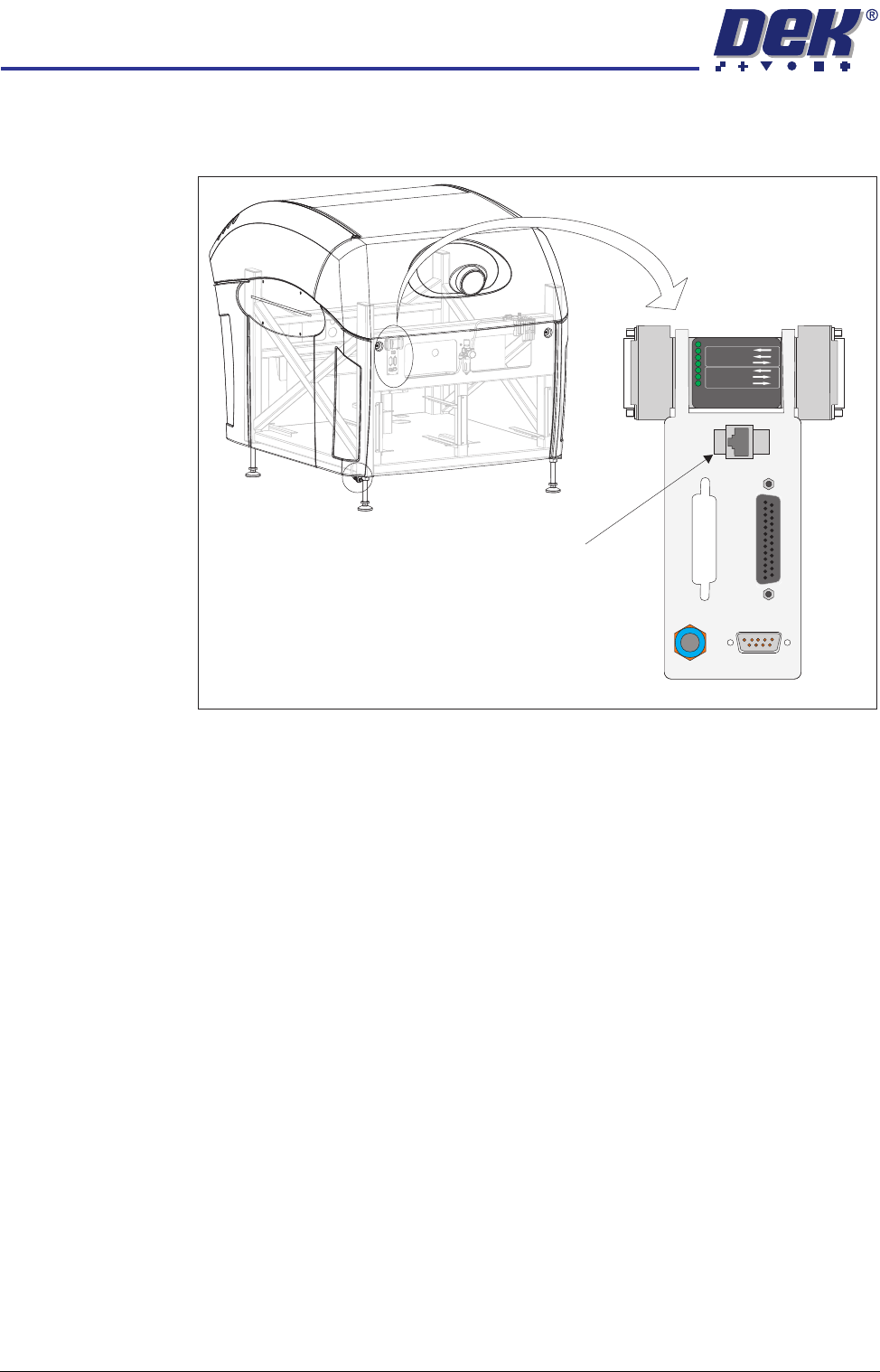

Figure 32-3 External Services (rear panel removed)
POWER ON
PART No. 160740
M/C AVAILABLE
BOARD AVAILABLE
BOARD PASS
DOW
NLINE
BOARD AVAILABLE
BOARD PASS
M/C AVAILABLE
UPLINE
FMI POD
View on Rear of Machine
Host Comms
LAN RJ45
