NETWORKING
CONNECTION TO A NETWORK SERVICE
32.6 Technical Reference Manual Chapter Issue 6 Oct 06
Hardware
Installation
A LAN RJ45 connector is available at the external services rear panel, this
connector provides the interface to the customer’s network.
Figure 32-3 External Services (rear panel removed)
POWER ON
PART No. 160740
M/C AVAILABLE
BOARD AVAILABLE
BOARD PASS
DOW
NLINE
BOARD AVAILABLE
BOARD PASS
M/C AVAILABLE
UPLINE
FMI POD
View on Rear of Machine
Host Comms
LAN RJ45
NETWORKING
CONNECTION TO A NETWORK SERVICE
Chapter Issue 6 Oct 06 Technical Reference Manual 32.7
8 Way RJ45
Connector
Internally the LAN RJ45 connection is routed to 3SK02 (card slot ISA 3) of the

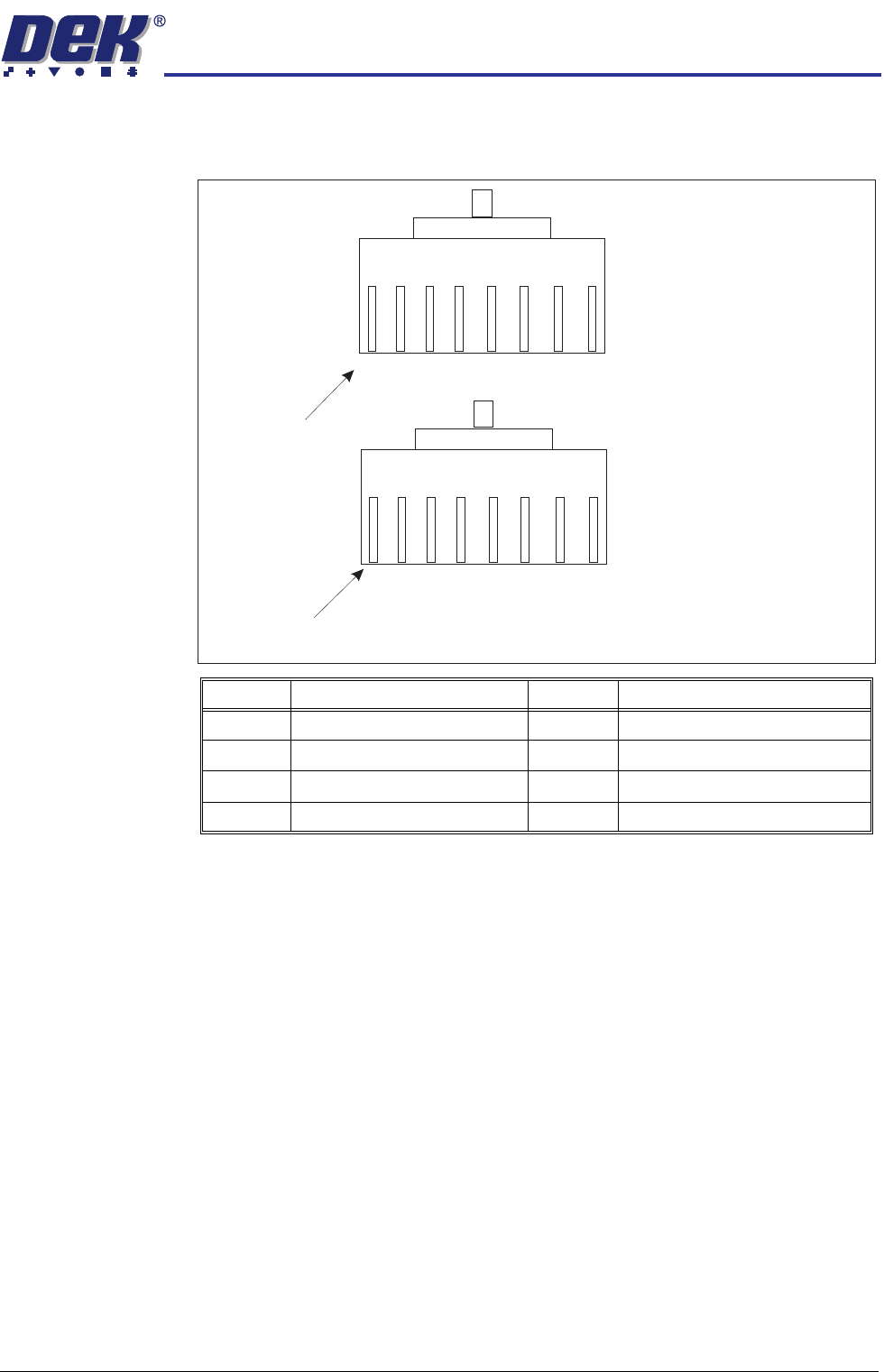

PC enclosure rear panel. The connections (to connector A) are shown below:
NOTE
The connection above is wired as DEK would recommend. It is possible that a
customer network connection may differ from the one shown, if a problem exists
in installation the connection at the customer network end of the cable may need
to be configured accordingly.
IP Address Configuration
To set the IP Address, use the following procedure:
1. On the Windows desktop, right mouse click the My Network Places icon
and select Properties.
2. Right mouse click Local Area Connection and select Properties.
3. Highlight Internet Protocol (TCP/IP) and select the Properties button.
4. Select the Obtain an IP address automatically radio button if the server
supports this capability. Go to Step 6.
5. Select the Use the following IP address: radio button and enter the details
supplied by the network administrator.
6. Select OK - OK and close the Networks Connections window.
Pin No. Signal Pin No. Signal
1 +ve Transmit 5 Not Used
2 -ve Transmit 6 -ve Receive
3 +ve Receive 7 Not Used
4 Not Used 8 Not Used
BN
BN
W/
BN
W/
BN
O
O
W/
O
W/
O
G
G
W/
G
W/
G
BL
BL
W/
BL
Pin 1
Connector A (pin view)
Connector B (pin view)
Connection Diagram for Reverse RJ45 Cable
Pin 1
W/
BL
NETWORKING
CONNECTION TO A NETWORK SERVICE
32.8 Technical Reference Manual Chapter Issue 6 Oct 06
7. If any changes were made, the machine needs to be rebooted before the
changes take effect.
NOTE
The network administrator should be instructed to create two working
directories for the product and data fields to be stored. These directories
must have read/write capabilities.
Selecting and
Editing Comms
Protocol Options
To select a Comms Protocol option carry out the following:
1. From the Start menu select Setup Machine.
2. Select Network Parameters.
3. From the Comms Protocol down drop menu, select one of the following
protocol options:
•No Comms
•GEM
• NET_FILE
NOTE
Selecting GEM or NET_FILE prompts an Enable/Disable Comms window to
be displayed allowing the user to enable or disable comms protocol.
4. If NET_FILE has been selected before comms is enabled, the following
parameters can be accessed and edited:
• Remote Drive (previously mapped)
• User ID
• Products Path
• Data Path
• Local Copies
• Reconnect Period
• Timeout
NOTE
The NET_FILE option may display a further window requesting the Network
Password.
IP Address (GEM
Only)
The GEM - IP Address for the machine must be set up in the DekSECSII.cfg
file, this can be checked and edited if necessary in the configuration file
D:\Program Files\DEK\Machine Control\Printer\DekSECSII.cfg.
Set the PASSIVE ENTITY IP ADDRESS to the printers’ ‘IP Address’.
If there is more than one printer communicating with the GEM Host, set the
DEVICEID differently for each printer. The default value is 0x109 (265).
Alternative DEVICEID values should be chosen within the range 0x0000 -
0x7FFF (0 - 32767).
