4 Machine - Calibrations
144 Service Manual Process Lens PL - 03/2025

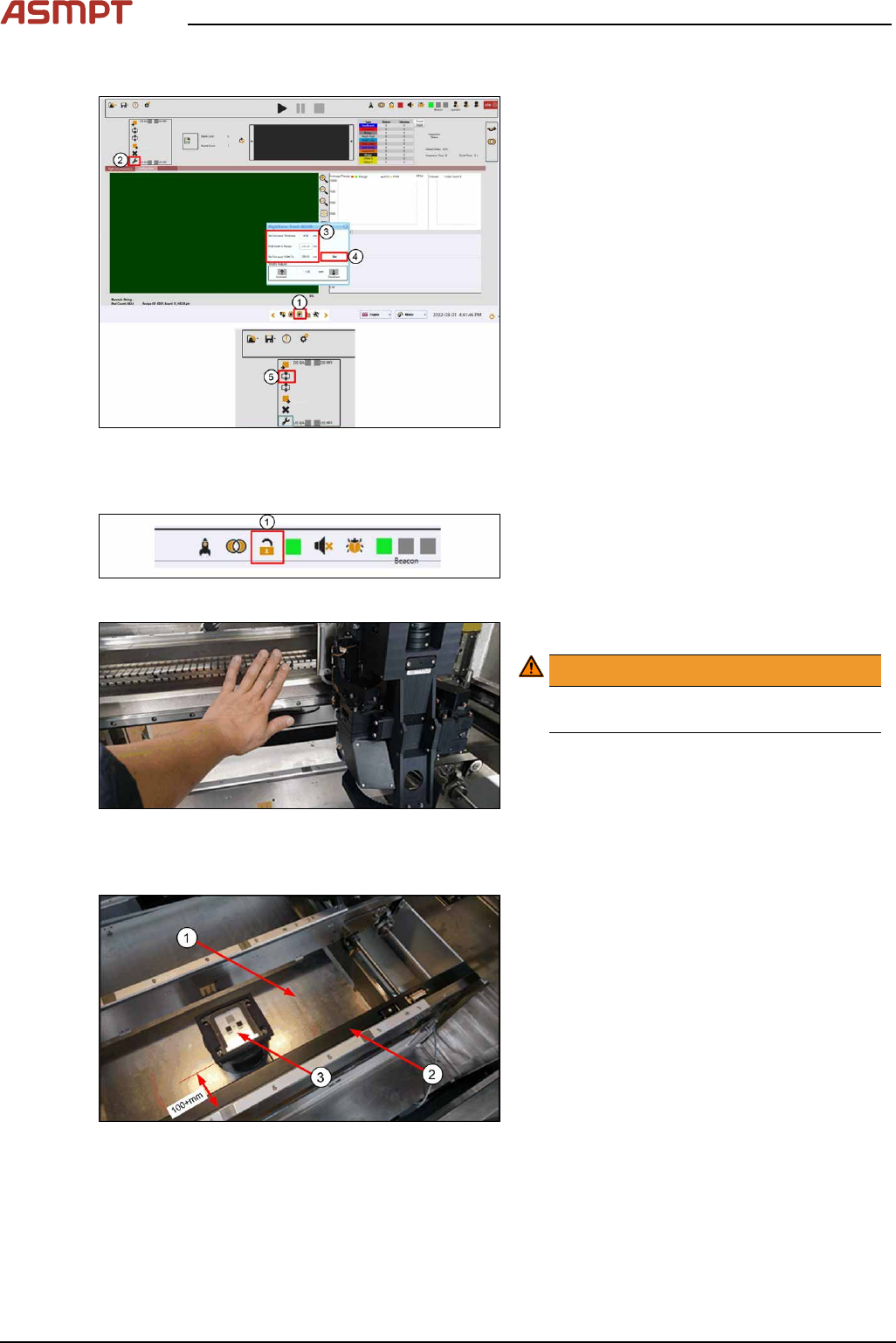

Step 2
Fig.209: Inspection oage
► Go to Inspection Page (1).
► Click Adjust Conveyor (2).
► Set the following:
ð Thickness, 4mm (3)
ð Width, 250mm (3)
► Click Set (4).
► Click Lift Up (5) to lift up lifting table.
Step 3
Fig.210: Opening door
► Click Lock to open door (1).
Fig.211: Pushing the gantry
► Push the gantry to the back.
WARNING!
Do not push on the camera module.
Remove all supporting pins.
.
Step 4
Fig.212: Placing the target
► (1) Clean the lift table of any debris.
► (2) Pull the sensor bar towards the front
conveyor.
► (3) Place the target on the table in the
middle of the conveyor about 100+mm
away from the front conveyor´s edge.
Align the target parallel to the conveyor.
4 Machine - Calibrations
Service Manual Process Lens PL - 03/2025 145
Fig.213: Connecting the cables
► (4) Loop the lighting cable from the right of
the lift table through the gap and over the
conveyor ball screw as shown. This will
prevent the cable from getting crushed
when the lift table is raised.
► (5) Connect the lighting cable from the
machine to the target.
Step 5
Fig.214: “System test” tab
► Click System Test (1).
► At Utility, select One Point Dynamic Test
(3).
► Click on Jogging (2).
► Click on the directional arrows (4) to jog
the camera over to the target until the
square target comes into view.
Fig.215: Setting the lighting
► At the Lighting Box menu (1), set 2D
Back lighting (2) to 25 and all other light-
ing values to0.
► Click the centre (3) of the square target.
The camera centres the FOV to the
square target.
Step 6
Fig.216: Focus
► Click on Focus icon (1).
► Set value between 50~60 till image is
clear.
► Click Continue (3) to proceed calibration.
4 Machine - Calibrations
146 Service Manual Process Lens PL - 03/2025
Step 7
Fig.217: Results displayed
► Click Ok (1).
ð The results are displayed (2). The off-
set from the target should be ≤ 10μm in
both X and Y directions.
► Click Ok (3).
► Click Lift Down (4) to lower down lifting
table.
► Click Open Door.
► Disconnect the lighting cable and remove
the target.
4.4 Calibrations - Table Mapping
NOTICE
Mapping procedures for Single-lane Conveyor (ONLY) with option Left-Right or Right-Left has the
same procedures.
Left-Right Transport - input mapping plate from left
Right-Left Transport - input mapping plate from right
Preparation
This procedure compares the positions of the camera across the table (work area) against a target
glass plate mapped at a higher level of accuracy and compensates for the positional differences.
Fig.218: Process Lens PL [03139348S01]
