EUKYX
2-14199-2100
3.1 Common SET

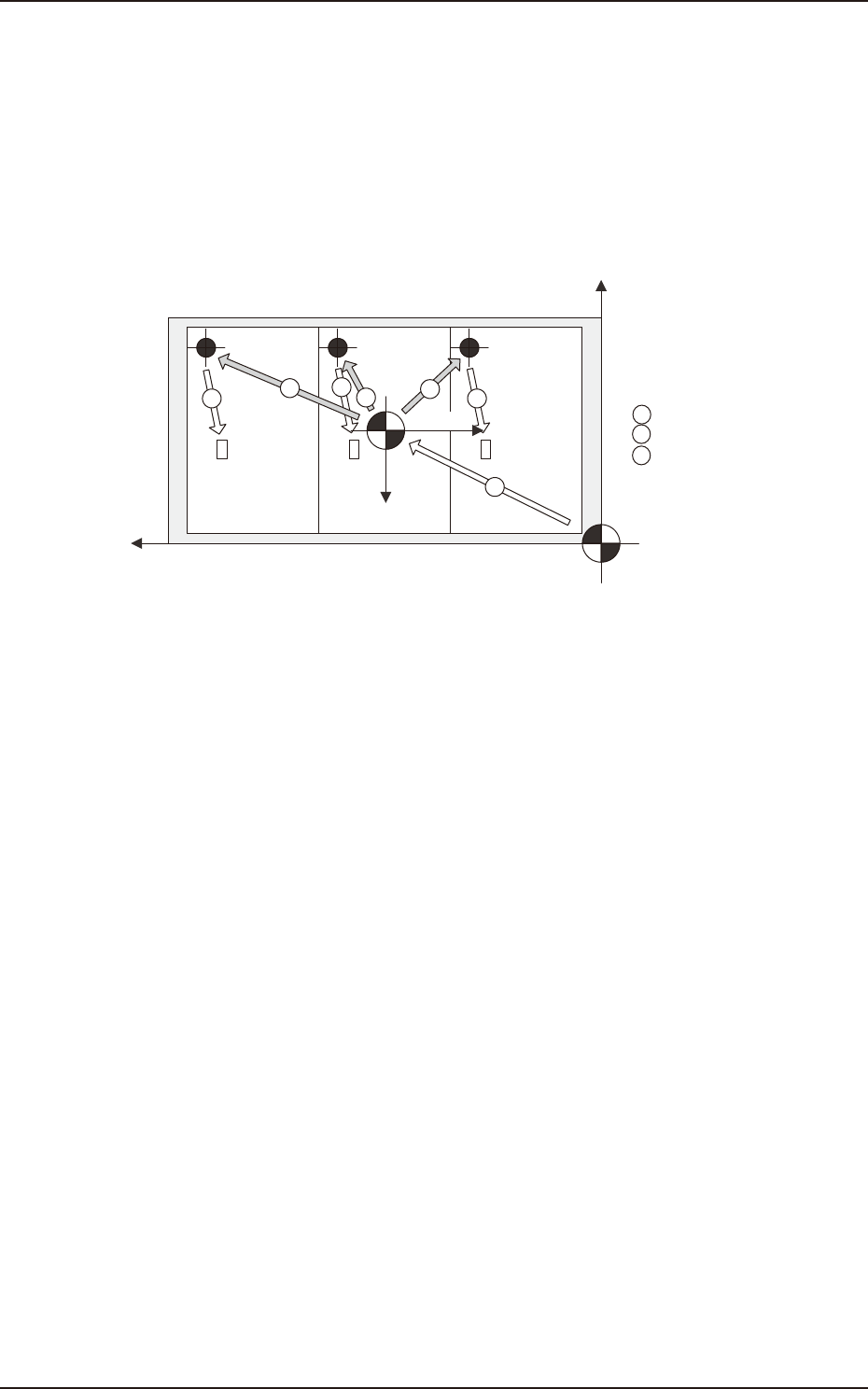

X-Direction and Y-Direction
"Same" or "Opposite" can be selected as the X and Y directions in the placement reference
coordinate system.
Same : Select this when the direction of the coordinates is the same as that of the
machine coordinates.
Opposite : Select this when the direction of the coordinates is opposite, compared with the
direction of the machine coordinates.
Y+
X+
X+
Y+
1
2
3
2
2
3
3
1 : PCB Origin Offset
2 : Unit PCB Origin
3 : Placement Coordinates
Machine Origin
PCB Origin
Machine Coordinate System
Placement
Coordinate
Reference
Machine Coordinate System
F2B8
Z-Direction
Select one of the following options to determine the Z angular orientation of the placement
coordinate reference point.
Same : Select this when the angular orientation is the same as that of the machine
coordinates.
Opposite : Select this when the angular orientation is opposite, compared with the direction
of the machine coordinates.
EUKYX
2-15199-2100
3.1 Common SET
(B01_03)
PCB height offset [mm]
Set an offset value as a nozzle descending distance based on the upper surface of the PCB in the
component placement section. This offset value applies to all components in the pattern program.
Normal Cases
Set "+0.000" (zero) in the text box. The figure below shows that the upper surface of a PCB is
maintained by the PCB support pins at the PCB upper surface reference.
PCB
PCB Upper Surface
Reference
Chute
Backup Pin
Backup Table
F2B9
Example of Jig PCB Usage
The figure below shows that the upper surface of a PCB is lower than the PCB upper surface
reference. If "PCB Upper Surface Reference + a" is set as an offset value at this time, components
can be placed correctly on the PCB.
a
T (Thickness)
Jig PCB
PCB
PCB Upper Surface
Reference
Chute
F2B10
EUKYX
2-16199-2100
3.1 Common SET
(B01_04)
PCB Positioning Reference
Set the PCB positioning reference in this text box. The reference must be specified according to the
input and output machines.
Rear Left : The placement coordinate reference is based on the rear left side and specified as
follows.
X +
Y +
Placement Coordinate Reference (No)
PCB
F2B11
Front Left : The placement coordinate reference is based on the front left side and specified as
follows.
X +
Y +
Placement Coordinate Reference (No)
PCB
F2B12
