’Display trays and change component levels’ menu
In this menu you can display the component levels of flatpack magazines
and update the component levels of individual trays.
Update component levels
Click on this button and the current status of all flatpack magazines will be
displayed.
NOTE
During the placement process itself the component levels are not updated.
New component level ...Mark the desired track in the list by moving the cyan bar over it. Click on
the New component level ... button.
Enter the current number of components into the New level field of the dia-
log box. The maximum permissible value for the number of components is
displayed in the Max. level field.
Click on the OK button to confirm your entry.
Magazine full Confirms that the selected magazine has been filled.
34
’Display linear feeder and vibrate’ menu
When you have filled a linear feeder, you can use this menu to select it
and turn vibration on.
Select the linear feeder from the list.
Click on the Vibrate on button. The arrow in the Vibrate column shows that
the module is being vibrated.
You can stop vibration by clicking on the Vibrate off button.
’Single functions - Gantries 1/2’ menu
The Single function menu for gantries 1 to 2 are identical.
Only personnel with the corresponding training and qualifi-
cations are permitted to access the Single functions Gantry X (X = 1 or 2)
menu since improper treatment of the machine may result in serious phys-
ical injury and considerable damage to property.
The Single functions Gantry X menu has the following submenus:
– Gantry functions
– Revolver head functions
– Vacuum test revolver head
– Nozzle offset revolver head
– Nozzle configuration
– Nozzle-changer configuration revolver head (if this option has been
installed and configured)
35
’Gantry functions’ menu
NOTE
All movement functions of the X and Y-gantry axes have to be initiated
with the Start button. You will be requested to do so by the on-screen dis-
play ’Press start key’.
If protective covers are still open, you will be asked to close them.

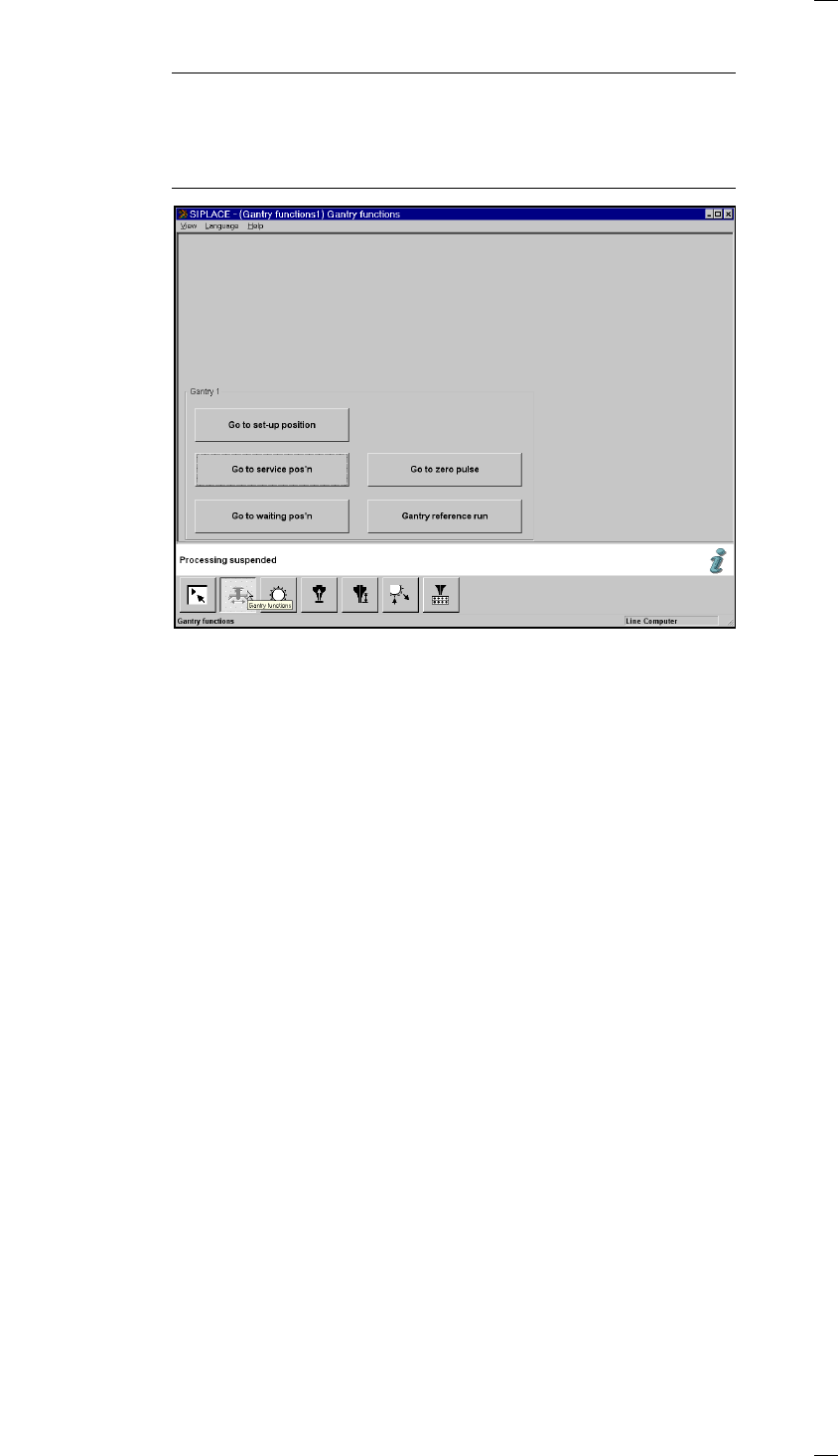

Go to set-up position Go to this position if you wish to refill or replace feeder modules.
Go to service pos’n Go to this position when you want to carry out servicing of the placement
head or gantry.
Go to waiting pos’n Move the gantry to this position if the gantry is not required.
Go to zero pulse The gantry travels until it reaches the zero pulse.
Gantry reference run The gantry carries out a reference run.
