www.asm-smt.com

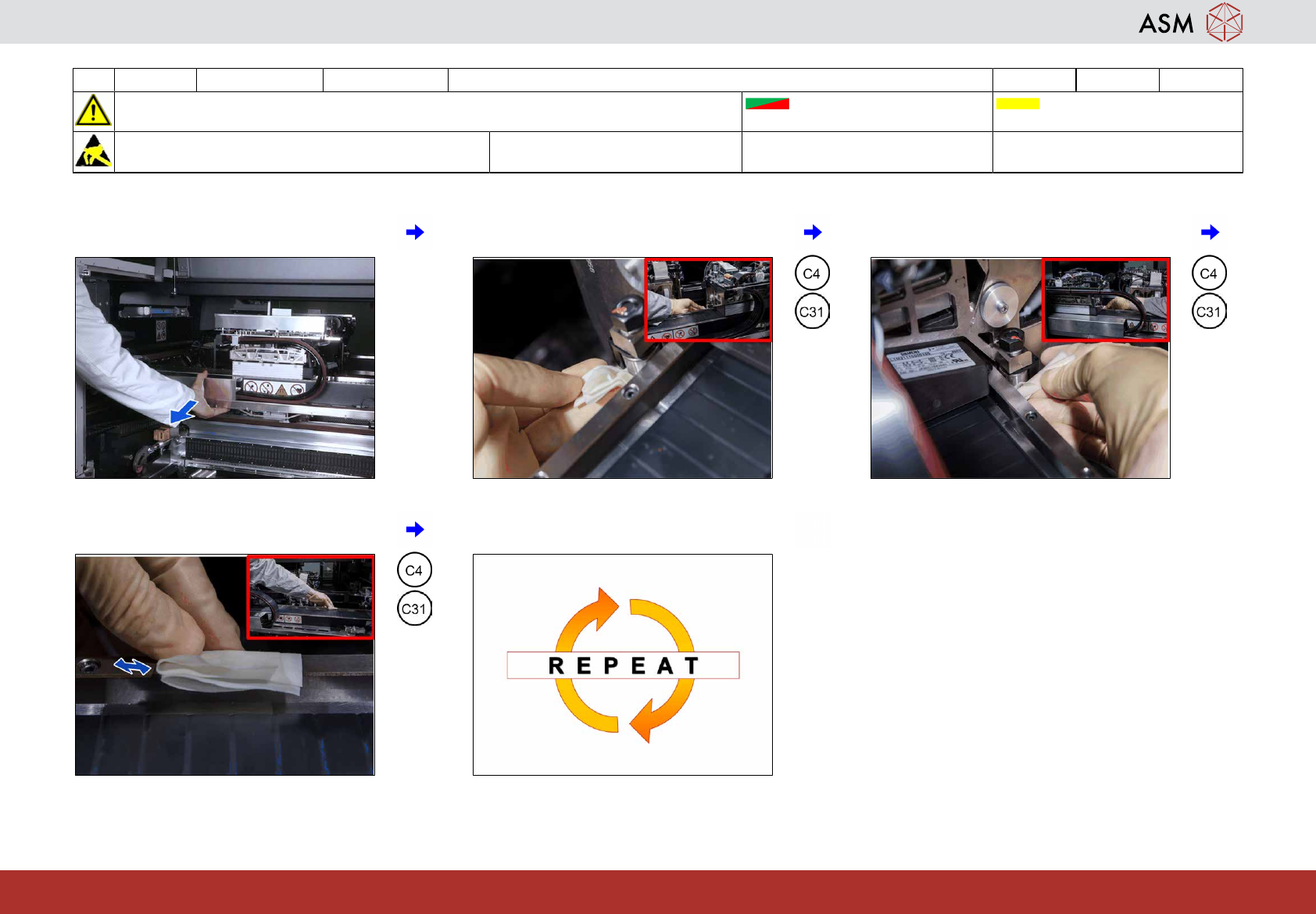

7 WF1 SX1/2 Clean the X-Axis loose bearing and contact surface. 1 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON (OFF) Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C4, C31
www.asm-smt.com
1 Move all gantries to the end limit. 2 Clean the loose bearing at the left side of
the head.
3 Clean the loose bearing at the right side of
the head.
4 Clean the contact surface over the entire
length.
5 Repeat all steps at the other gantry.
www.asm-smt.com
8 WF1 SX1/2 Clean the Y-Axis loose bearing and contact surface. 1 min 1 / 1
CAUTION! Refer to safety instructions in user manual before commencing Maintenance
Machine Status ON (OFF) Transport Empty
NOTICE! ESD guidelines are to be followed Tool: Wear Part: Consumables:
C3
www.asm-smt.com
1 Move all gantries to the end limit. 2 Clean the outer loose bearing at the left
side of gantry.
3 Clean the inner loose bearing at the right
side of gantry.
4 Clean the contact surface over the entire
length.
5 Repeat all steps at the other gantry.
