Page HANWHA TECHWIN 52 SM471 Head Ass’y (1/5)
Page
HANWHA TECHWIN
51
SM471
Base Frame Ass’y
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70511046A VIDEO_SPLITER_BKT J70511046A 1
2 FC15-000983A COVER BOTTOM FR 2
3 FC15-001391A COVER BOTTOM RL 1 FC15-000986A
4 FC15-000985A COVER BOTTOM RR 1
5 J7051010D HOUSING-FOOT[J7051010D] 4
6 FC28-000176 FOOT-MFPU-98 4
7 FC18-903496 SPRING WASHER [M8 (BL/ZN)] 16
Page
HANWHA TECHWIN
52
SM471

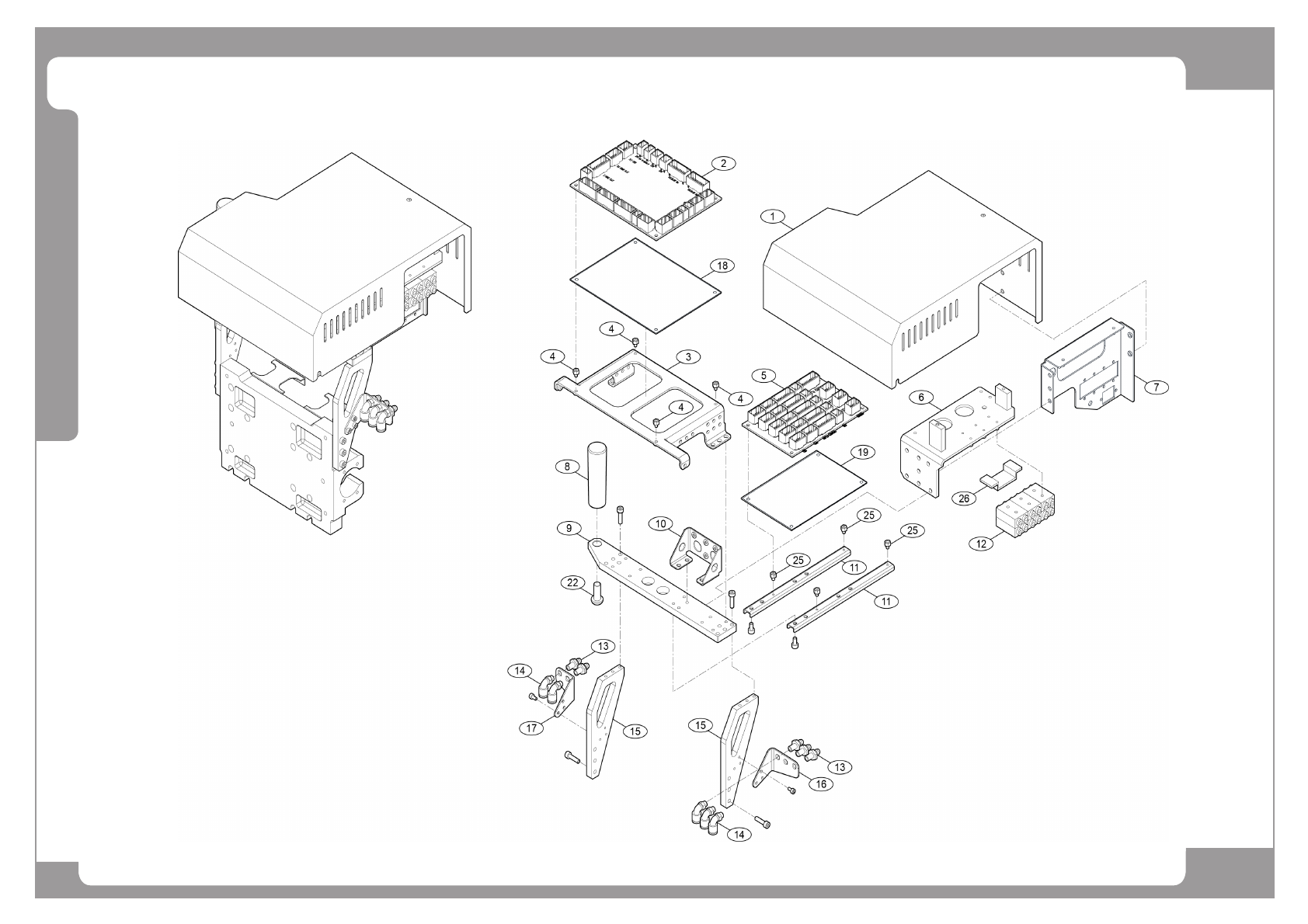

Head Ass’y (1/5)
Page
HANWHA TECHWIN
53
SM471
Head Ass’y (1/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 FC15-000963B COVER-HEAD_TOP_COVER 1 FC15-000963A
2 AM03-005337C ASSY,BOARD-SM471 HEAD IF BOARD VER1.0 1 AM03-005337A/ AM03-005337B
3 FC09-001574B BRACKET-HEAD_BOARD_BRACKET 1 FC09-001574A
4 FC29-900610 HEX SUPPORT 8
5 AM03-005341B ASSY,BOARD-SM471 MOTOR IF BOARD VER1.0 1 AM03-005341A
6 FC09-001568A BRACKET-FLAT_CABLE_BKT 1
7 FC09-003535B BRACKET-HEAD_BKT_PANEL 1 FC09-001573A
8 FC29-900148 HANDLE BG-10 1
9 FC09-001575A BRACKET-HARNESS_PLATE 1
10 FC09-001690A BRACKET-HEAD_BKT_FIX 1
11 FC09-001576A MOTOR_IF_BOARD_BKT 2
12 J1301070 STRAIGHT_CONNETOR_FITTING 6
13 FC28-900369 GREASE NIPPLE [M6*1.0-STRAIGHT] 5
14 HP06-900079 ELBOW_UNION_FEMALE KQ2LF04-M6 5
15 J71541016A HARNESS_SUPPORT 2
16 J70541016A 3-NIPPLE_BRACKET J70541016A 1
17 FC09-004665A 2-NIPPLE_BRACKET 1 J70541017A
18 FC36-000186A PLATE-IO_BOARD_SHEET 1 FC30-000990A
19 FC36-000187A PLATE-MOTOR_IF_BOARD_SHEET 1 FC30-000991A
22 FC18-902795 BUTTON_HEAD_CAP_SCREW M10*20 (NI/ZN) 1
25 FC29-900610 HEX_MOTOR IF BOARD SHEET 4
26 FC09-001847A BRACKET-FITTING_BKT 1
