Page HANWHA TECHWIN 59 SM471 Head Ass’y (3/5) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 AM03-005340A ASSY ,BOARD-SM471 V ACUUM SENSOR B D VER1.0 1 2 HP04-900036 SUCTION_FIL TER VYF…
Page
HANWHA TECHWIN
58
SM471
Head Ass’y (3/5)
Page
HANWHA TECHWIN
59
SM471
Head Ass’y (3/5)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 AM03-005340A ASSY,BOARD-SM471 VACUUM SENSOR BD VER1.0 1
2 HP04-900036 SUCTION_FILTER VYF44-M-50M 10
3 HP06-000074 FITTING-STRAIGHT FITTING;KQ2S04-M5N 10
4 HP09-000328A MANIFOLD-P_SENSOR_BLOCK 1
5 HP06-900059 BOB ELBOW FITTING M-5ALU-4 12
6 FC09-001523A BRACKET-MANIFOLD_PLATE_2 1
7 FC18-902704 SOCKET HEAD CAP SCREW [M2*5 (BL/ZN)] 14
8 FC09-001522A BRACKET-MANIFOLD_PLATE_1 1
9 HP14-000344 VALVE-OVER_BLOW_VALVE 1
10 FC14-900638 PLUG FITTING[M-5P] 1
11 HP06-900194 ELBOW_FITTING SQL04-M5A-W 1
12 HP09-000129 MANIFOLD-SM411+ HEAD_AIR_MODULE 1
13 HP06-900021 BOB FITTING [M-5ALU-4] 11
14 FC14-900638 DUMY PLUG 1
15 HP14-000173 VALVE,SOLENOID-SOLENOID_VALVE 10
16 HP14-000206 VALVE-BLOW_VALVE 10

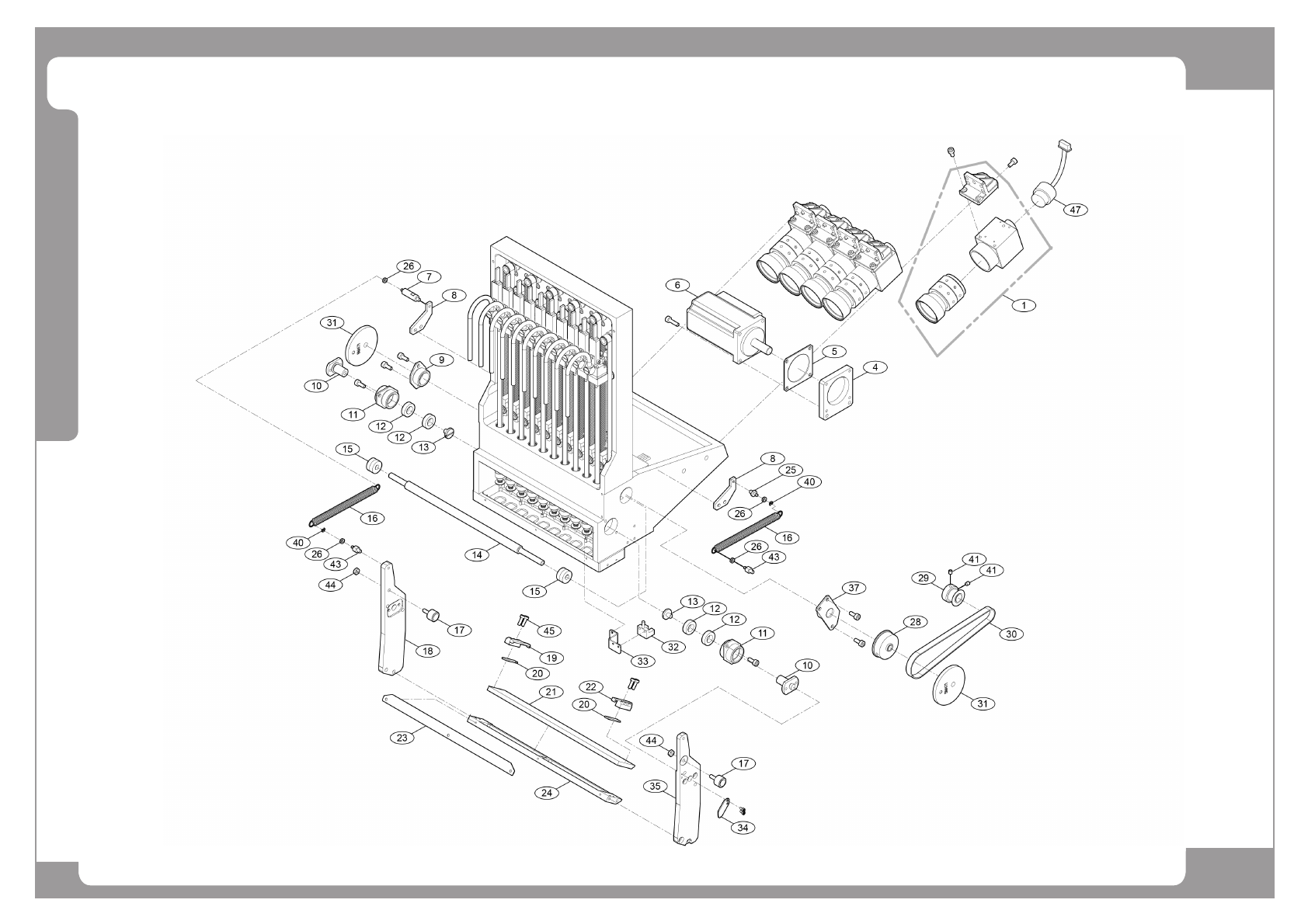

Page
HANWHA TECHWIN
60
SM471
Head Ass’y (4/5)
