Page HANWHA TECHWIN 85 SM471 X-Y Frame Ass’y (3/4) NO. Lev . PA R T N O . P ART NAME Q'TY Old No. Supply Supply L T Reference 1 MC13-900160 Y -BALL_SCREW SBK2030ZS-3.4GT+9 56LC5-B 2 2 J70541006C BS_REAR_SUPPOR T 2 3…
Page
HANWHA TECHWIN
84
SM471

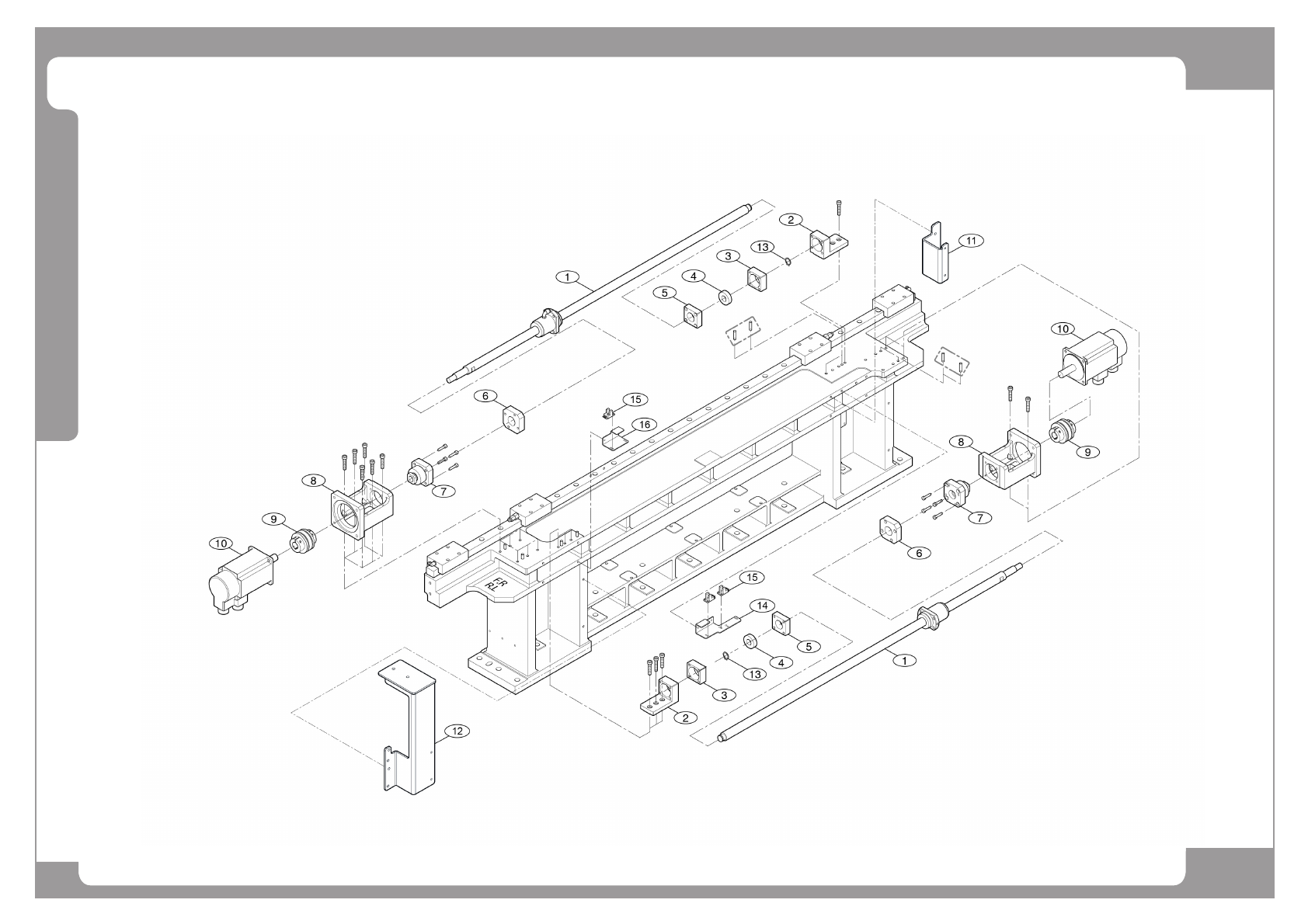

X-Y Frame Ass’y (3/4)
Page
HANWHA TECHWIN
85
SM471
X-Y Frame Ass’y (3/4)
NO. Lev. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 MC13-900160 Y-BALL_SCREW SBK2030ZS-3.4GT+956LC5-B 2
2 J70541006C BS_REAR_SUPPORT 2
3 J70541030A BRG_HOUSING_Y J70541030A 2
4 MC03-900027 BALL BEARING 2
5 FC29-001076B STOPPER-STOPPER Y BS REAR 411PS 2 FC29-001076A
6 FC29-004431A STOPPER_Y_BALL_SCREW_FRONT 2 J72541006A
7 MC04-900028 SUPPORT UNIT[FK-15] 2
8 FC07-000386A BLOCK-SQ80_Y_MOTOR_BLOCK 2 J70541005C
9 FC14-900237 COUPLING[SFC 050DA 12B-19B(TYPE A)] 4
10 EP08-000139 MOTOR,SERVO-MHMD102G2C;1KW_80 4 EP08-900158
11 J70541366A SIDE_COVER_BKT-2 J70541366A 1
12 FC09-001720A BRACKET-SIDE COVER 1 1
13 FC18-901665 C-RING (SHAFT) [DIA15] 1
14 J70541009A SENSOR_BKT_HOME-Y J70541009A 1
15 EP19-900114 LIMIT SENSOR [EE-SX674] 3
16 FC09-001507A BRACKET-BKT SNS Y 411PS 1
Page
HANWHA TECHWIN
86
SM471
X-Y Frame Ass’y (4/4)
6
22
23
8
25
11
12
13
1
24
26
3
2
4
5
9
14
15
21
17
19
18
20
* Option
