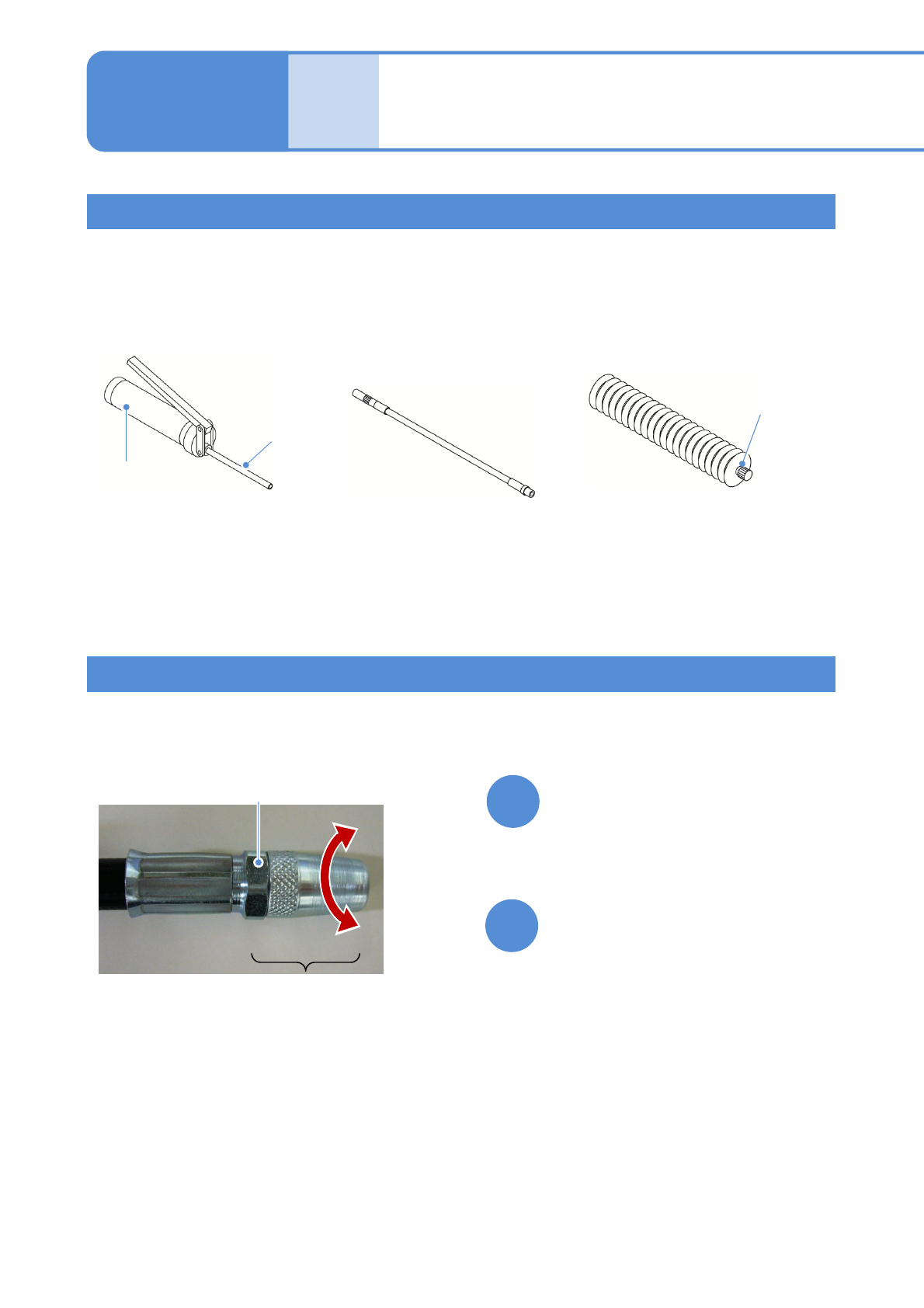

NPM-W 2 EJM7DE-MB-03M-00 Components of grease gun Adjust the nozzle tip if the clamping force is too strong. Hold hexagonal part with a spanner wrench T urn the tip with pliers 1 2 How to adjust the grease gun 3-1 -1 Mai…
3 Tasks related to
maintenance
NPM-W2 EJM7DE-MB-03M-00
Components of grease gun
Adjust the nozzle tip if the clamping force is too strong.
Hold hexagonal part with a
spanner wrench
Turn the tip with pliers
1
2
How to adjust the grease gun
3-1-1
Maintenance
3-1
Tighten
Loosen
Tip section
Hexagonal
section
Greasing 1
The grease gun kit consists of the following 3 pieces.
●Make sure that the nozzle is securely fixed.
●Select a tube nozzle, nozzle that matches the greasing point.
Nozzle
Grease canister
Grease gun
Cartridge (200g)
Tube nozzle
Cap
NPM-W2 EJM7DE-MB-03M-00
How to install cartridge
2
3
4
1
Remove the cap from cartridge
and screw the cartridge into
the main body with the grease
canister removed
●Screw in tight.
(Loose cartridges may cause grease to
leak)
Pull the chain on the grease
canister ( ) and lock it into
the groove ( )
Insert the cartridge into the
grease canister ( ), and screw
the canister into the main body
( )
Release the chain from the groove
( ) and house it in the canister
( )
●Check if the grease comes out of the nozzle
tip by pumping the lever a few times ( )
3-1-2
Lever
1
2
1
2
Cartridge
1
2
Canister
Chain
Groove
1
2
1
1
2
2
3
3
