Fume Extractor Configurations
Some parameters, features and the performance vary depending on fume extractor configuration,
see the following table:
230V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake
1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 80 m
3
/ h (47.08 cfm) 80 m
3
/h (47.08 cfm)
Preset Aspiration Programs 3 3
Custom Aspiration Programs 10 10
Power Consumption 130 W 300 W
120V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake
1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 80 m
3
/ h (47.08 cfm) 75 m
3
/h (44.14 cfm)
Preset Aspiration Programs 3 3
Custom Aspiration Programs 10 10
Power Consumption 135 W 270 W
100V - 50/60Hz Mode: 1 Workbench Mode: 2 Workbenches
Flexible Arm Aspiration Intake
1 2
Stand Aspiration Intake 1 Not available
Flow per Flexible Arm Intake 80 m
3
/h (47.08 cfm) 65 m
3
/h (38.28 cfm)
Preset Aspiration Programs 3 3
Custom Aspiration Programs 10 10
Power Consumption 135 W 200 W
FRONT

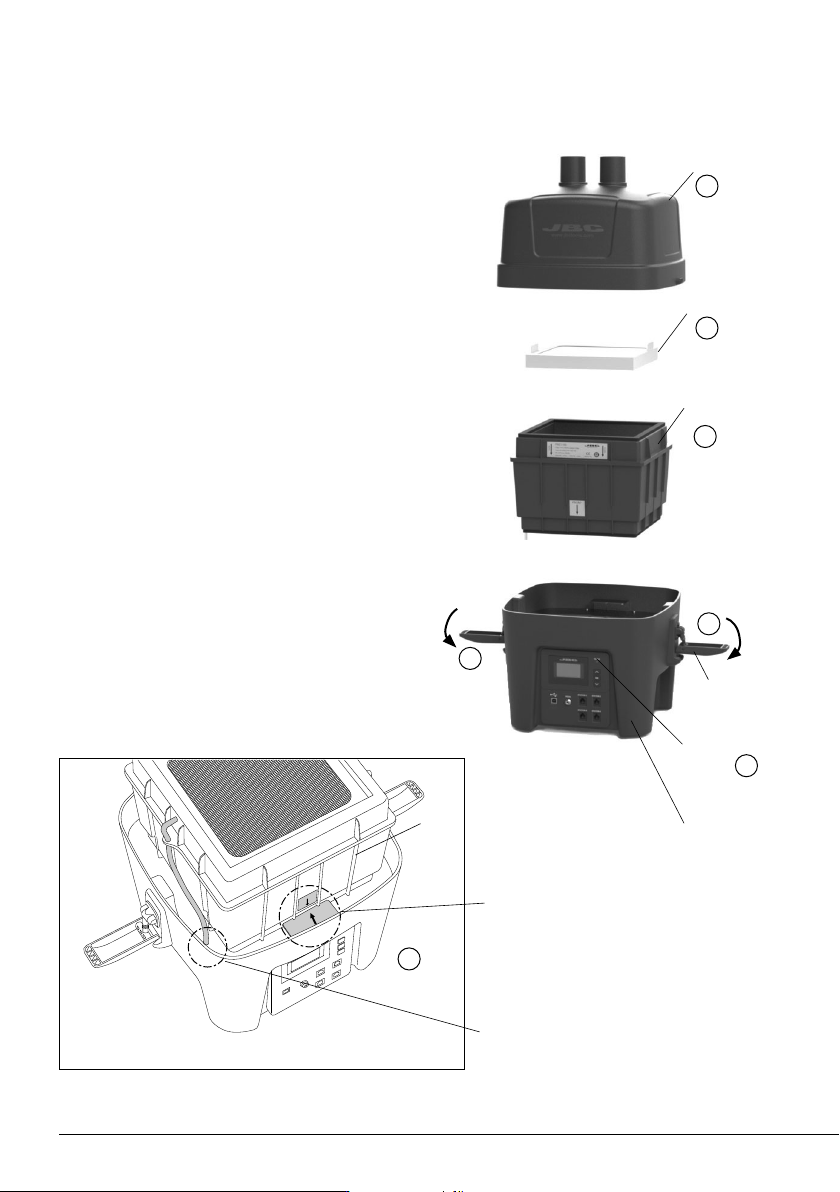

Maintenance and Filter Replacement
- The fume extractor unit indicates by means
of display and LED’s that the fi lters need to
be replaced.
- To replace the fi lters remove the cover (1) by
opening the quick release levers (2), located
on both sides of the casing.
- If the indicator LED (3) remains in red after
replacing the pre-fi lter (4), it means that the
main fi lter (5) is saturated and must also be
replaced (see fi gure below) (6).
- After replacing the main fi lter (5), the carbon
fi lter counter must be reset (Main Menu >
Filter Set > Reset Carbon).
- The service life of the maint fi lter is
a maximum of 1 year after opening its
packaging.
- If the fi lter is changed while the fume
extractor is switched on, the fume extractor
unit automatically starts the fi lter detection
process and activates the aspiration for a few
seconds.
Cover
Indicator LED
Pre-Filter
Main Filter
(carbon + HEPA)
Connect the fi lter tube to the
quick-coupling placed on the metal
sheet
Note: The main fi lter has a given
position. Make sure the fi lter ribs
mate with the corresponding slots.
Quick Release
Lever
Filter
Ribs
Casing
1
2
3
4
5
2
6
14
FRONT
-
+
15
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm

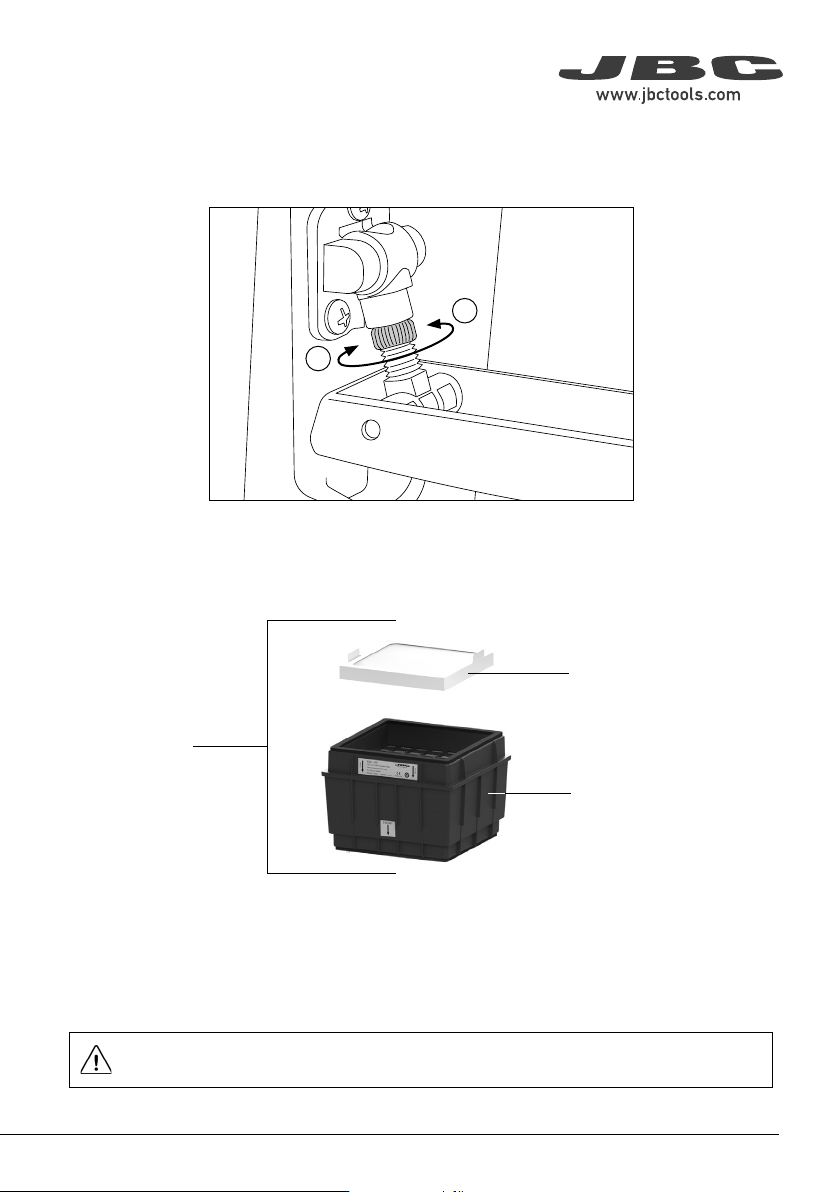

Quick Release Lever Adjustment
- Turn clockwise to loosen and counterclockwise to tighten, in order to adjust the filter airtightness.
Read the safety guidelines to do the equipment maintenance safely.
Accessories
FAE1110
Pre-Filter for FAE1
medium dust filter M5
(EN 779)
FAE1100
Filter for FAE1
Compact Filter
active carbon filter and
particle filter HEPA H13
(EN 1822)
