Flow Flow H M L Saturation 20% Filter Filter Carbon life 90% Aspiration ON Flow Flow Saturation 20% 100% Filter Filter Carbon life 90% Aspiration ON 5 40 mm 50 mm 60 mm 80 mm 100 mm 130 mm 130 mm par a manuales - c olor …
FlowFlow
H M L
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
FlowFlow
Saturation 20%
100%
FilterFilter
Carbon life 90%
Aspiration
ON
4
FAE1
Fume Extractor for 1 Workbench
FAE040
Accessory for Stand
Aspiration with Clamp
- For flexible hose Ø50 mm.
- To be fixed in place with
the included clamp.
- For up to 4 stands.
FAE030
Accessory for Stand
Aspiration
- For flexible hose Ø50 mm.
- To be inserted and
screwed directly onto
the workbench (hole
drilling required).
FAE050
Fume Inlet Duct
for Modular
Stand (stands from
versions Ref. xx-SD
onwards)
FAE060
Fume Inlet Duct
for Compact
Stations (stations
from versions
Ref.xx-xB onwards)
FAE070
Flexible Arm with
Clamp Ø50
- Length: 1 m / 39.37 in
- To be assembled onto
the workbench with the
included clamp.
FAE020
Flexible Arm Ø50
- Length: 1 m / 39.37 in
- To be inserted and
screwed directly onto
the workbench (hole
drilling required).
FAE010
Flexible Hose Ø50
- Length: 1.5 m / 59.05 in
- For connecting either
to a flexible arm or to a
accessory for the stand
aspiration.
- Attention: Avoid
awkward positions
in order to minimize
pressure losses.

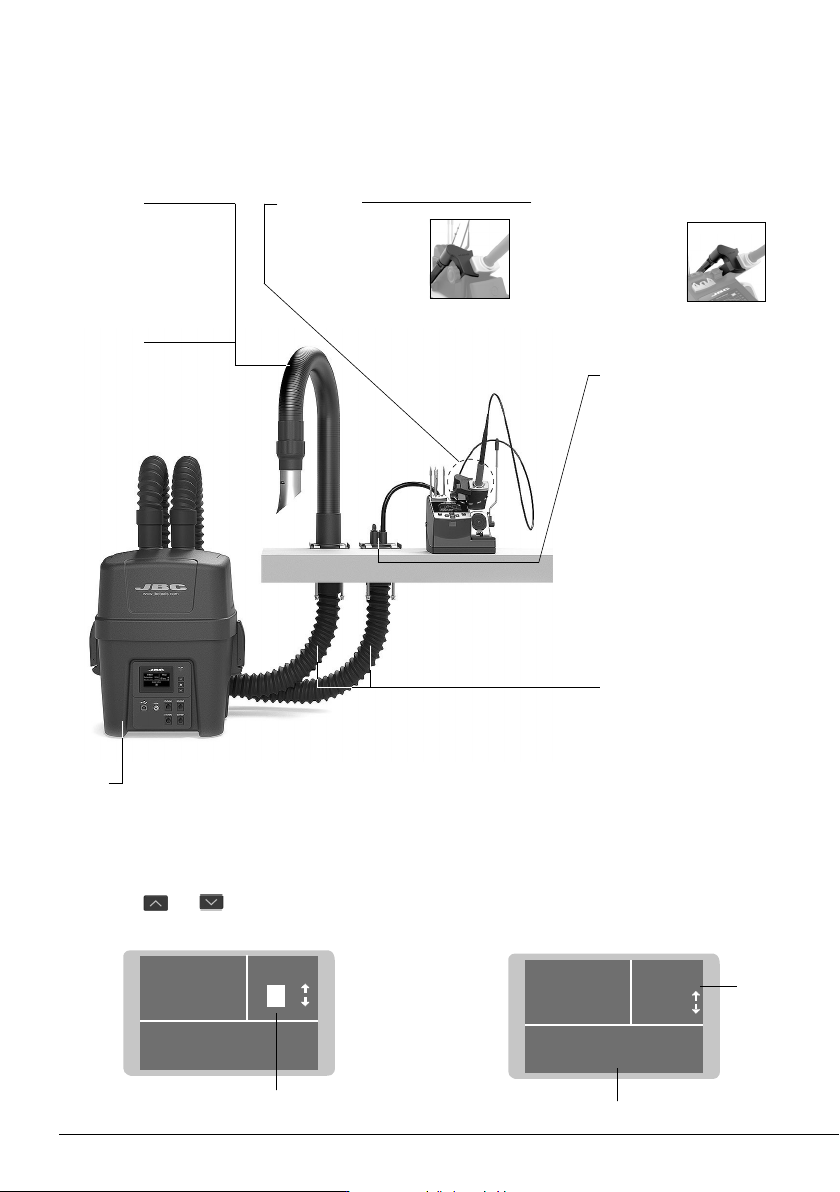

Standard Assembly
Main Screen
Custom program screen
Aspiration Programs:
high, medium and low.
Aspiration Status
Flow Rate
Preset program screen
Configuration for 1 Workbench
Access by and to change the aspiration program.
FlowFlow
H M L
Saturation 20%
FilterFilter
Carbon life 90%
Aspiration
ON
FlowFlow
Saturation 20%
100%
FilterFilter
Carbon life 90%
Aspiration
ON
5
40 mm
50 mm
60 mm
80 mm
100 mm
130 mm
130 mm
para manuales - color gris
200 mm
300 mm
Main Screen
Note: For this configuration stand aspiration is not available.

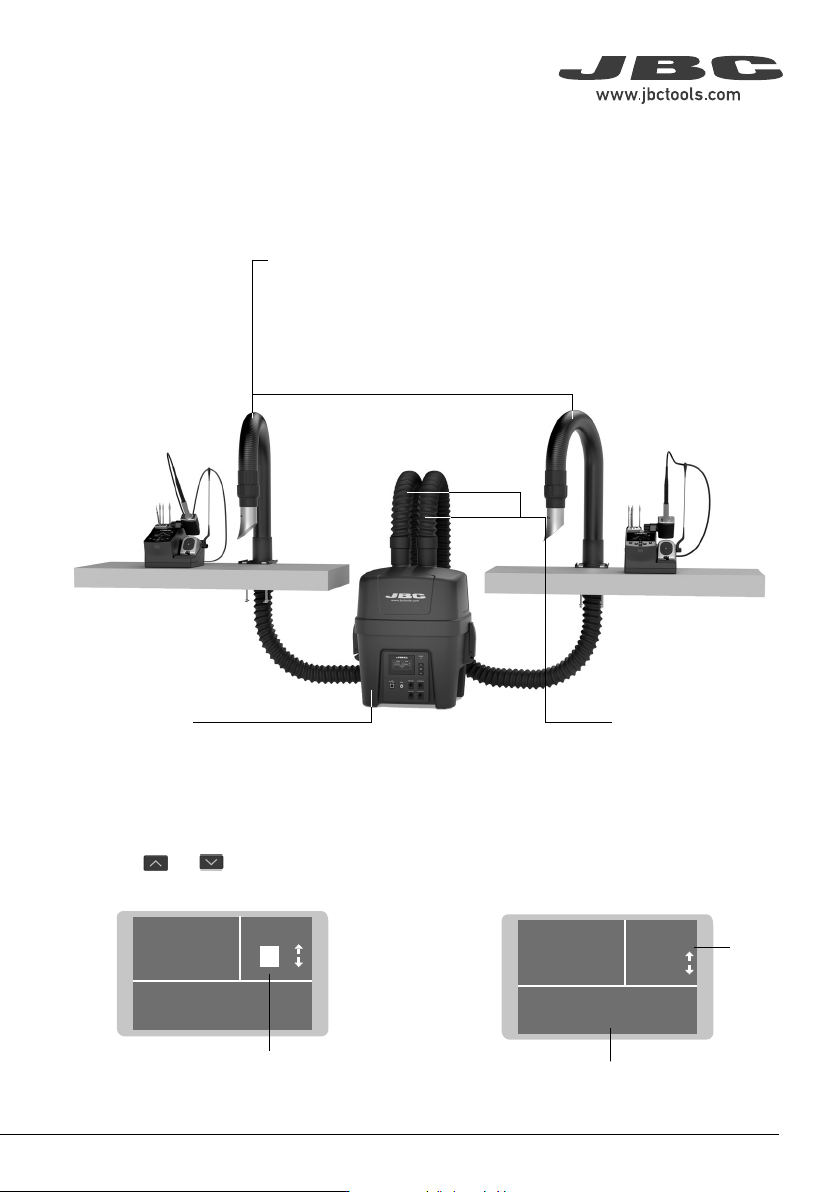

Configuration for 2 Workbenches
This configuration is activated by setting Workbench option to “2” in the FAE1 main menu.
Alternative Assembly Option
FAE070
Flexible Arm with
Clamp Ø50
- Length: 1 m / 39.37 in
- To be assembled onto
the workbench with the
included clamp.
FAE020
Flexible Arm Ø50
- Length: 1 m / 39.37 in
- To be inserted and
screwed directly onto
the workbench (hole
drilling required).
FAE010
Flexible Hose Ø50
- Length: 1.5 m / 59.05 in
- For connecting either
to a flexible arm or to a
accessory for the stand
aspiration.
- Attention: Avoid
awkward positions
in order to minimize
pressure losses.
FAE1
Fume Extractor
for 1 Workbench
Custom program screen
Aspiration Programs:
high, medium and low.
Aspiration Status
Flow Rate
Preset program screen
Access by and to change the aspiration program.
350
ºC
Port
1
Power
45%
Temp levels
T245
250
350 380
19:29
Port
1
T245
19:29
Sleep
Tool in the stand
Actual Temp. 180º
Delay to hibernation: 29:30
Port
1
T245
19:29
Hibernation
Actual Temp. 25ºC
Peripherals
19:29
Pedal PD_a
Module MSE
Pedal
PD_a
PD_b
None
Peripherals
19:29
Pedal PD_a
Module MSE
Peripherals
19:29
Pedal PD_a
Function Extractor
Mode released
Minimum time 0 sec
Back
Peripherals
Port 2-PA
Port 2-PA
Port 2-PA
Port 2-PA
19:29
Pedal None
Module None
Module
MSE_a
None
Peripherals
Port 2-T245
19:29
Pedal None
Module None
Module
MNE_a
None
1:29
Peripherals
Pedal
None
Module
None
Fume extractor
FAE_a
Back
Port 2-PA
6

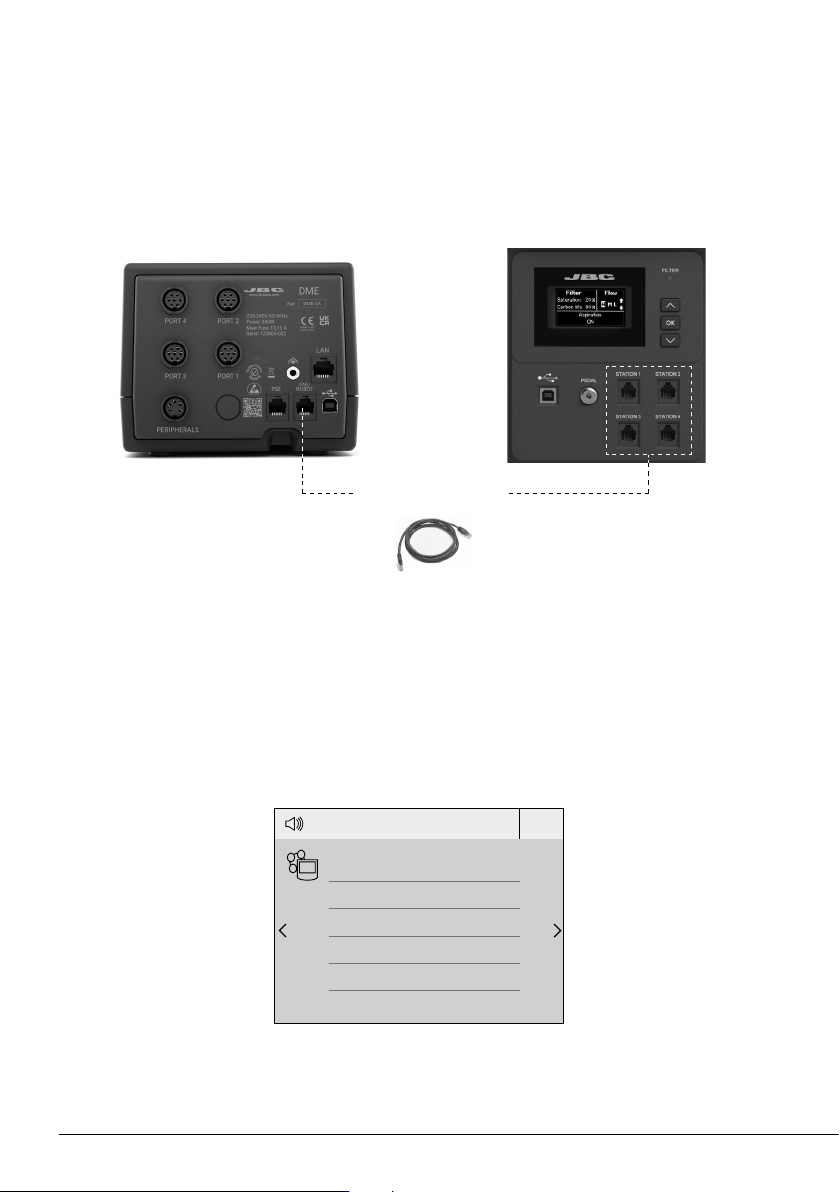

Connection with Modular Control Units
JBC Soldering Stations feature a robot port to the fume extractor in order to automatically activate
the extraction when the tools are in use. Use the RJ12 cable (included) for the connection.
RJ12 Connection
Cable
Connect up to 4 control units directly to a fume extractor port (STATION 1, STATION 2, ...) through
the soldering station port (FAE/ROBOT). Every tool connected to a control unit can control the
aspiration system.
Each control unit detects the fume extractor as “FAE_a”. The tool that should activate the fume
extraction need to be configured through the peripheral menu option on the control unit menu.
Note: For a correct operation always update control units with the latest available software version.
The minimum required version is 8886160 for DDE, HDE and NAE control units and 8886162 for
DME control units.
Modular Control Unit
Fume Extractor
Control Unit Peripheral Menu
