SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT500381/11
Aboardwaitacrossthemachinefunction
Contents
A board wait across the machine function..................................................................................... 1
1. Introduction................................................................................................................................ 2
2. Summary ................................................................................................................................... 2
3. Limitations ................................................................................................................................. 2
4. Basic Specifications................................................................................................................... 3
5. Settings...................................................................................................................................... 4
5.1. Way of Settings................................................................................................................... 4
6. Error messages ......................................................................................................................... 5
7. Appendix.................................................................................................................................... 7
7.1. Automatic settings............................................................................................................... 7
7.2. Manual settings................................................................................................................... 9
7.3. The board dimensions specifications.................................................................................11
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT500382/11
1.Introduction
The target model and the object version are as follows.
Table1TargetmodelandObjectversion
Item Object Remarks
Target Model YS12 Series mounter, YS100, YS88, YS24
YG12 Series mounter
Object version V3.10STD R1.000 or later
2.Summary
A board can stay between the downstream machine and the upstream machine in this version
(Refer to Fig.2.1). By this function, a large size board which could not stay on the waiting
position can stay there because the board can be transferred to the waiting position, and the
transfer cycle time can be improved.

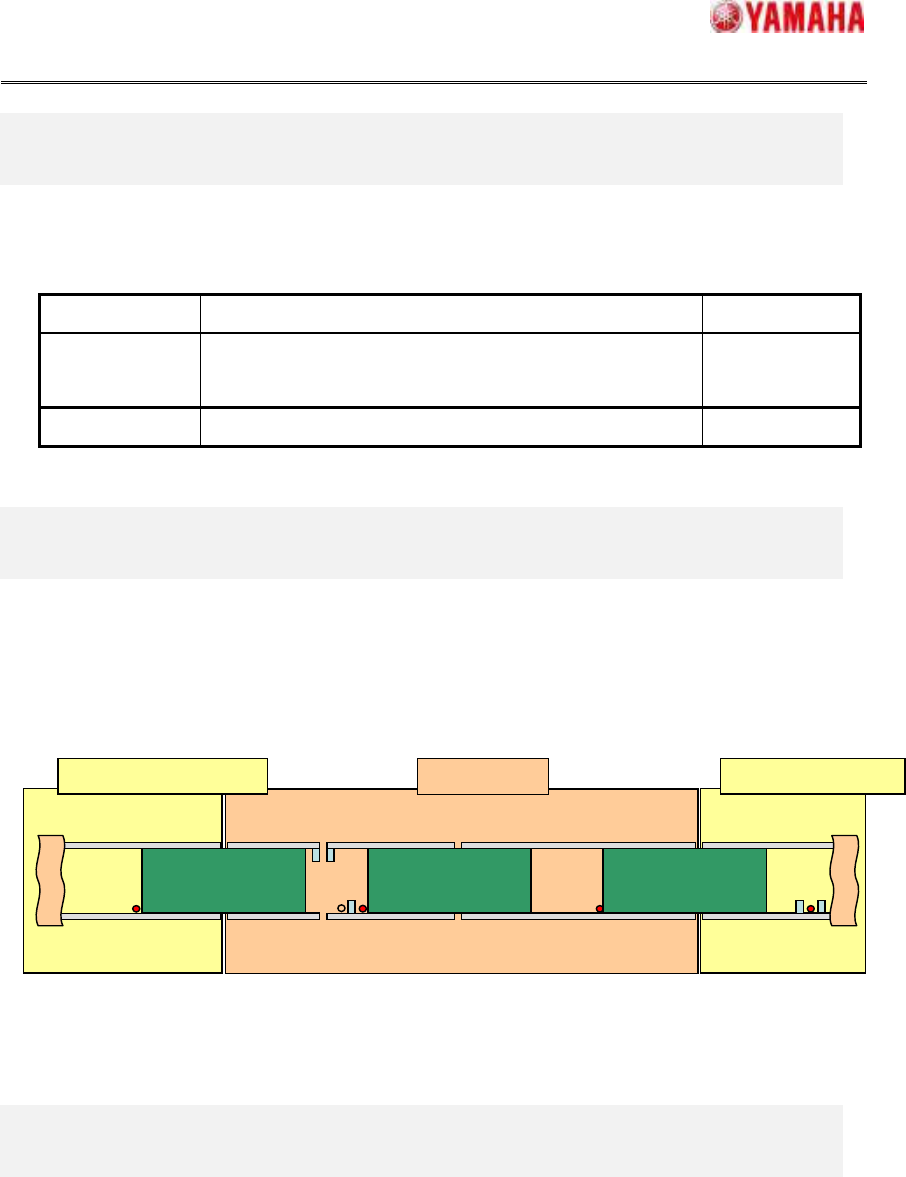

Fig.2.1Aboardwaitacrossthemachine
3.Limitations
This function does not work other than “ADVANCED_GATE".
Only when the “ADVANCED GATE 2” is used as the transfer signal cable, this function
becomes effective. When this function is used other than “ADVANCED GATE 2” as the
transfer signal cable, interlock errors etc occur, and normal operation cannot be done.
When this machine is with the buffer conveyor (include d-YTF) in the downstream side,
“Wait across the machine” function is not available in the downstream side.
This Machine
Upstream
Machine
Board Board Board
Downstream
Machine
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT500383/11
4.BasicSpecifications
A) Abouttheproductionboardcount
The number of producted board is counted up when the board reachs at the exit position as
before. When this function is used, the number of producted board is counted up when the
board reachs at the exit sensor because the board cannot be stopped and be tranferred to
the downstream machine.
B) Aboutthelog
When there is a board between the downstream machine and the upstream machine (“the
baord wait across the machine” state), the board is treated as a board of the downstream
machine. Therefore, the transfer time from the “the baord wait across the machine” state to
the board fixing position, is measured as transfer cycle time of the downstream machine.
The transfer time of the upstream machine is displayed by reaching time to the exit position
as before.
C) Abouttherecoverymethodafterthetransfererror
When the transfer error occurred, according to the instructions of the error message, please
move the board to the transfer destination position and restart auto-running.
When the board is stucked between machines, “Ea7337: BOARD TRANSFER ERROR” is
displayed, please move the board to the wait position of the downstream machine and
restart auto-running (cf. figure 4.1).
About the other transportation errors, please refer to "Chapter.6. Error message."

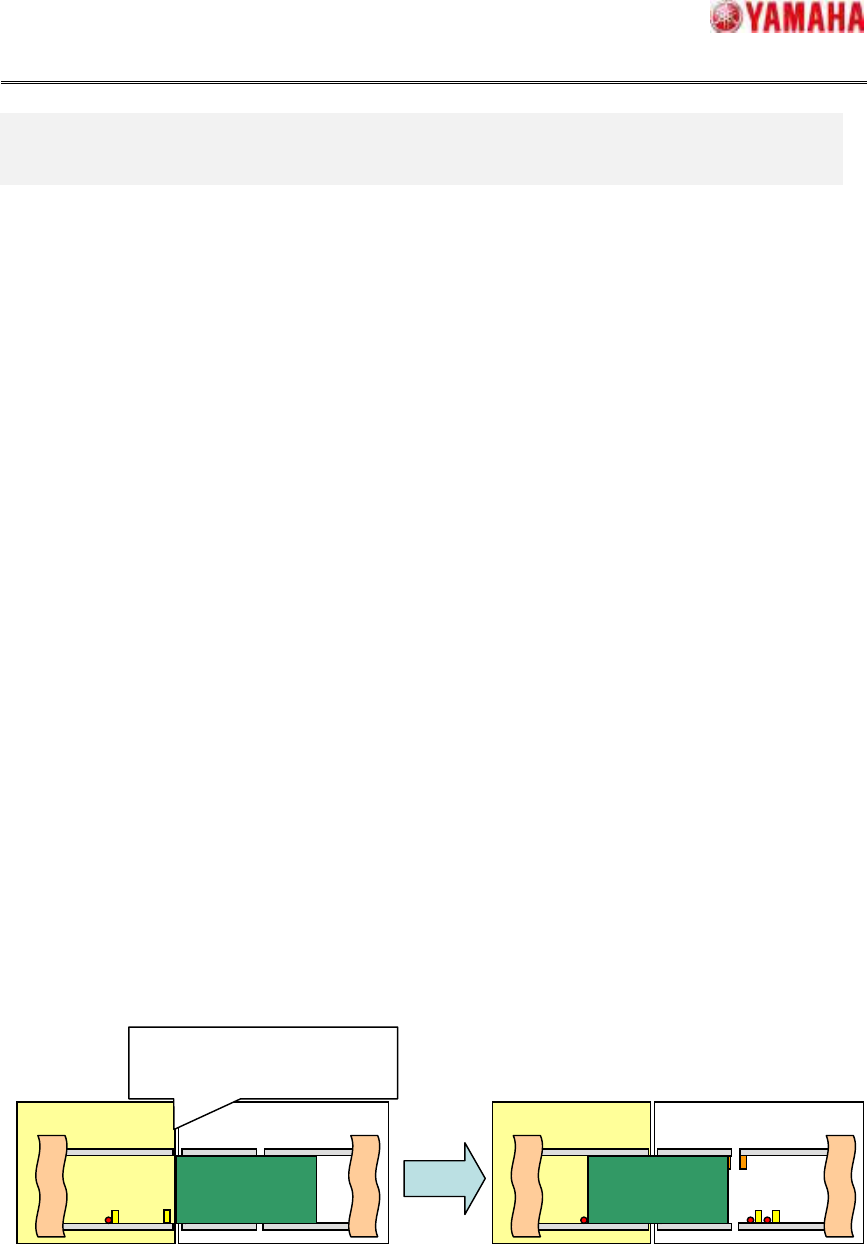

Fig.4.1Recoverymethodafterthetransfererror
This Machine
The board is stucked
between
machines
, and the transfer error
“Ea7337” occurred.
This Machine Upstream Machine
Upstream Machine
