7.Appendix
7.1.Automaticsettings
The work of this chapter is not necessary unless line constitution is changed.
The following setting is necessary when line constitution is changed or when upstream /
downstream machine is changed. However, the mechanical change of the conveyor in
upstream machine or this machine or downstream machine exists, please refer to "Chapter.7.2.
Manual Settings".
Please tap on [VmSpec] – [Toolbar] – [Wait Across Machine Setting] button (See Fig.7.1).
When it is taped, [Wait Across Machine Setting] screen opens.

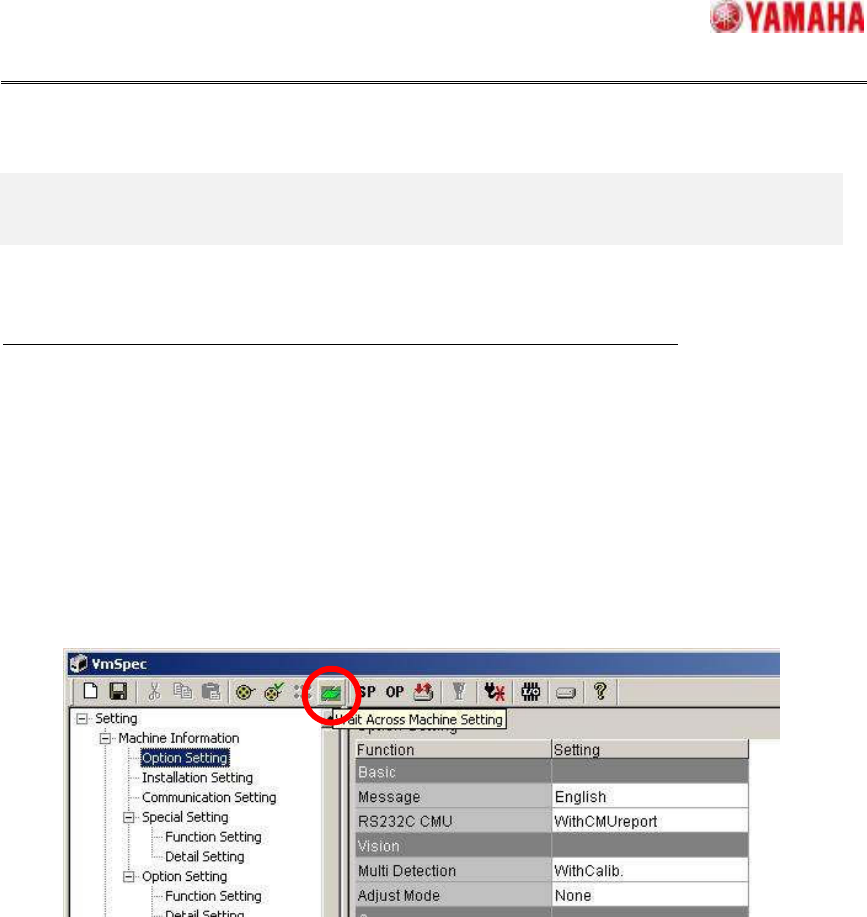

Fig.7.1VmSpecScreen
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT500388/11

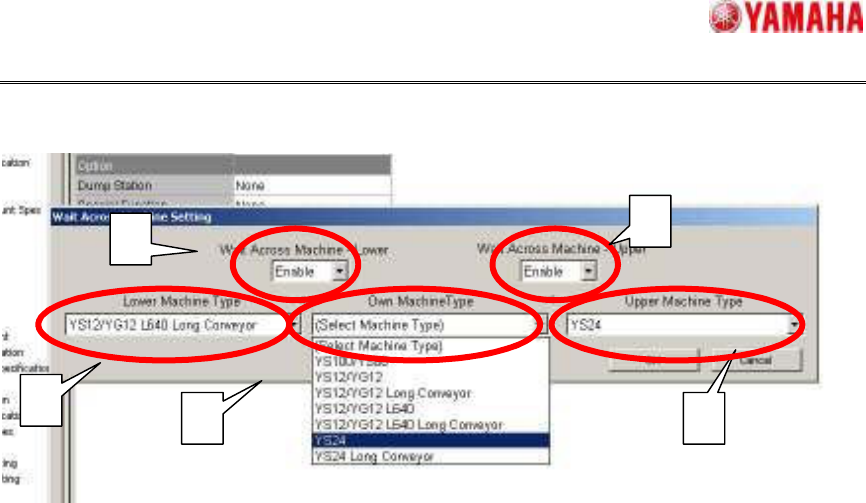

Fig7.2WaitAcrossMachineSetting
Please set it in the following procedures with [Wait Across Machine Setting] screen (See
Fig.7.2).
1. Set “Enable” on [Wait Across Machine – Lower] and [Wait Across Machine – Upper] comb
box.
The following settings are set on [Setting] - [Installation Setting] - [Software].
1) [Wait Across Machine (Upper)] or [Wait Across Machine(Lower)] is set to “Enable”.
2) [Upper Handling] or [Lower Handling] is setto “ADVANCED GATE”.
2. Set the settings on [Lower Machine Type], [Own Machine Type] and [Upper Machine Type].
Please choose the downstream machine, this machine, upstream machine from the combo
box. The following settings at [Machine data] - [Mechanical] - [Position] - [Wait Across
Machine] are set
1) [Upper Machine Max Board Size]
2) [Lower Machine Min Board Size]
3) [Lower Machine Max Board Size]
When the machine type that you want to choose is not displayed at the combo box, please
set “Disable” on [Wait Across Machine –Lower] or [Wait Across Machine – Upper].
1
1
2
2 2
SMT Software Engineering Group
IMOperationsYAMAHAMOTORCO.,LTD.
MDOC-SOFT500389/11
7.2.Manualsettings
The work of this chapter is not necessary unless line constitution is changed.
The following setting is necessary when line constitution is changed or when upstream /
downstream machine is changed. When the mechanical change of the conveyor in upstream
machine or this machine or downstream machine exists, manual setting is needed. If the
mechanical change does not exist, please refer to "Chapter.7.1. Automatic Settings".
●InstallationSettings
To use this function, please set “Enable” on [Wait Across Machine(Lower)] and [Wait Across
Machine(Upper)] (please refer to Chapter.5.1. Way of Settings).
In addition, please set “ADVANCED_GATE” on [Setting] - [Installation Setting] - [Upper
Handling / Lower Handling].
●MechanicalPositionSettings
From this version, the settings [Wait Across Machine] are added on [Machine Information] -
[Installation Setting] - [Software] (See Fig7.3). The conveyor dimensions that is necessary for
this function is able to be set.

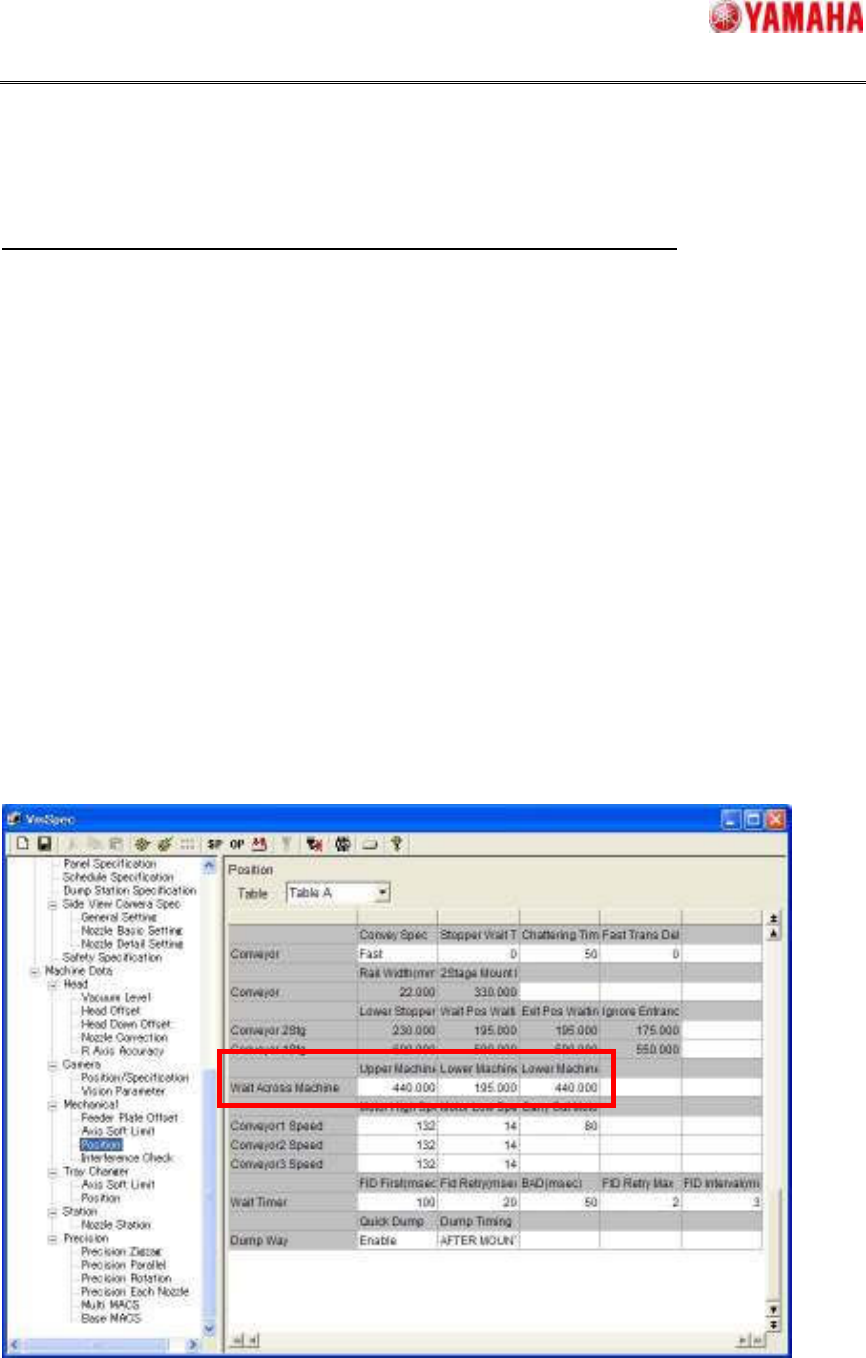

Fig7.3[MechanicalPosition]screen
