Installation of SQL 2008 Express 02/2011 Edition

The following dialog appears:

Fig. 3-4: Support Media Software Launcher

Note:

If the dialog does not appear start your Windows Explorer, browse to the file autorun.cmd on

the DVD and double-click it.

→ Select “Third Party Tools”.

Installation of SQL 2008 Express 02/2011 Edition

An Explorer Window appears.

→ Navigate to the following folder:

<DRIVE>:\TOOLS\SQL 2008\SQL2008EXPRED_WITH_TOOLS

→ Double-click the application SQLEXPRWT_X86_ENU.EXE in the folder.

After some seconds, the following dialog is displayed:

Fig. 3-5: SQL Server Installation Center - Planning

→ Click on Installation on the left side

Installation of SQL 2008 Express 02/2011 Edition

The window should look like this:

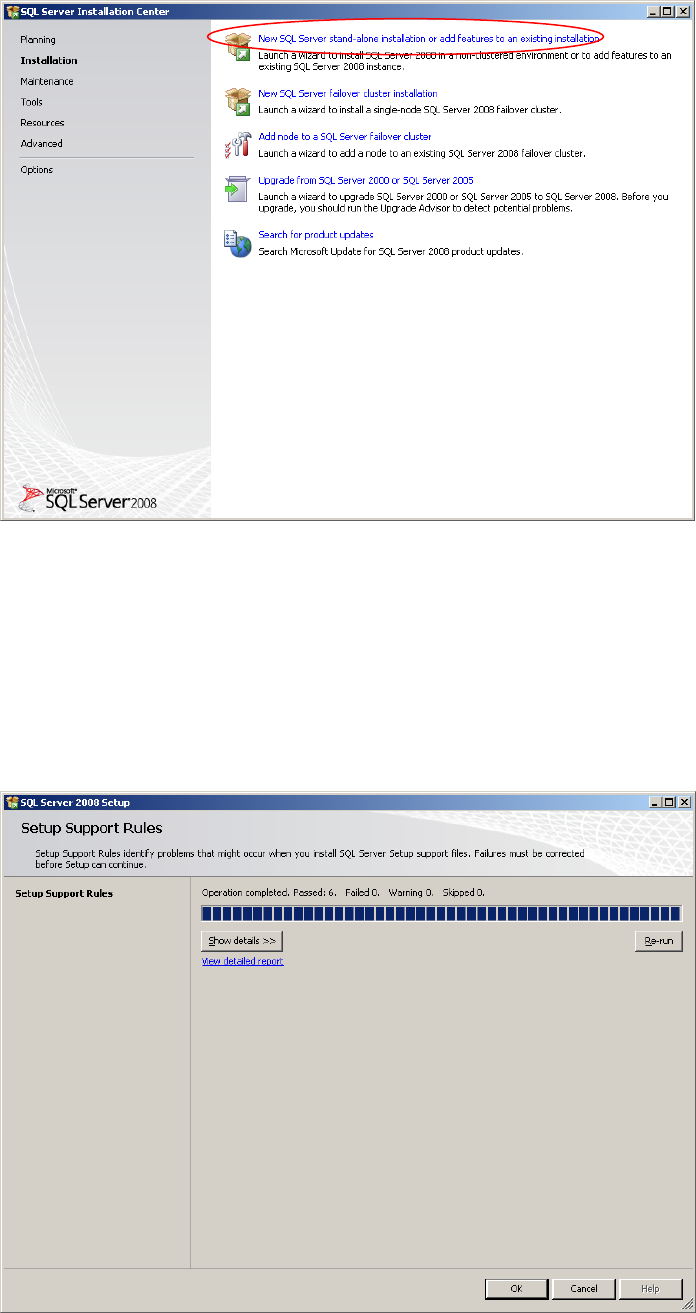

Fig. 3-6: SQL Server Installation Center - Installation

→ Click on New SQL Server stand-alone installation or add features to an existing

installation.

After some seconds, the following window will be displayed:

Fig. 3-7: SQL Server Setup Support Rules
