Installation of SQL Server 2008 R2 02/2011 Edition

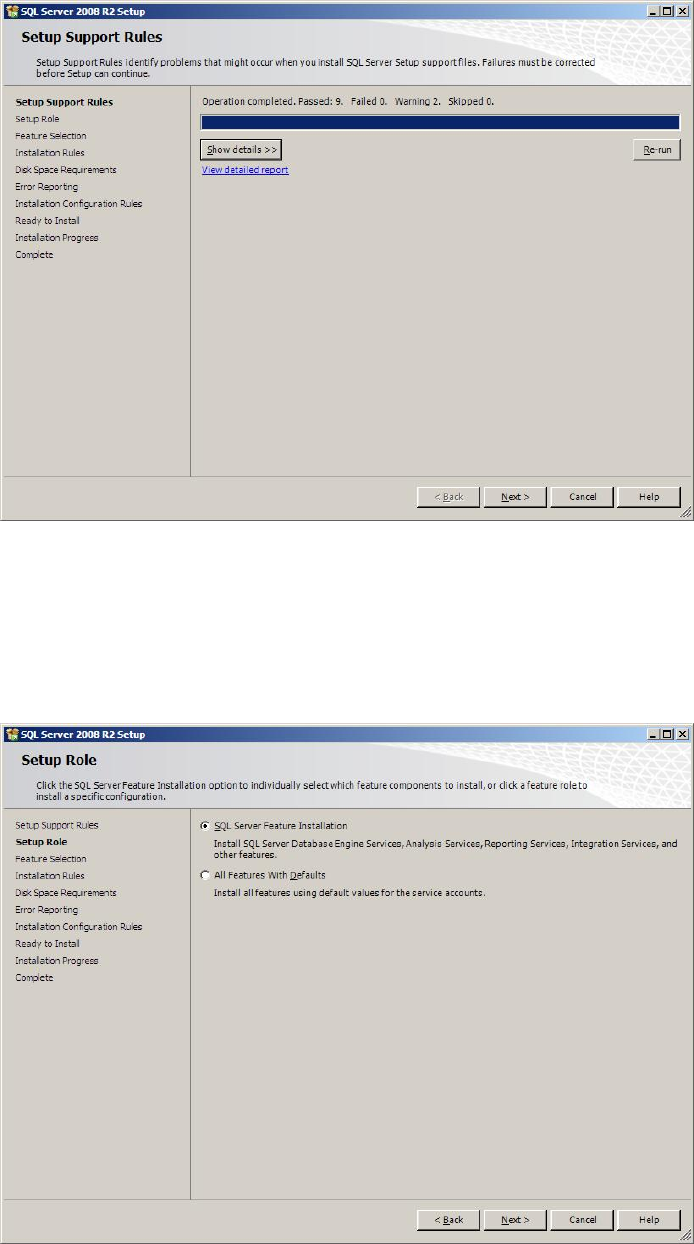

Fig. 3-10: SQL Server Setup Support Rules
→ Click the Next > button to continue.
The Setup Role window appears:
Fig. 3-11: SQL Server Setup Role Selection
→ Verify the radio button “SQL Server Feature Installation” being selected
→ Click the Next > button to continue.
14
Installation of SQL Server 2008 R2 02/2011 Edition
The feature selection window appears:

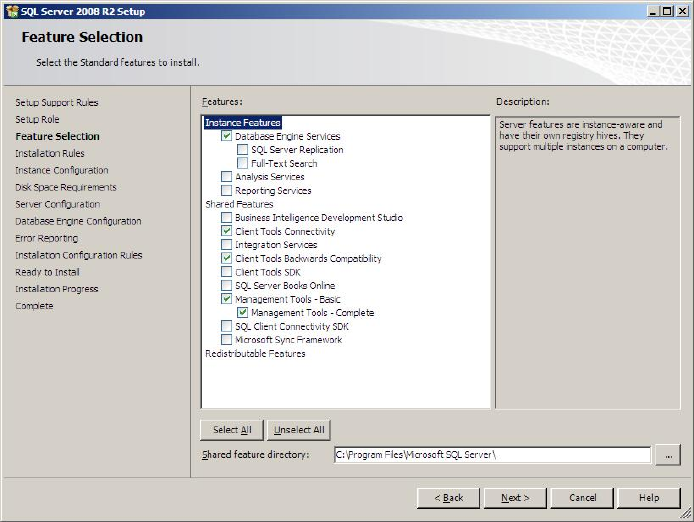

Fig. 3-12: SQL Server Setup Feature Selection
→ Ensure the following features being selected:
- Database Engine Services
- Client Tools Connectivity
- Client Tools Backwards Compatibility
- Management Tools – Basic
- Management Tools – Complete
→ Click the Next > button to continue.
The Installation Rules window appears:
15
Installation of SQL Server 2008 R2 02/2011 Edition

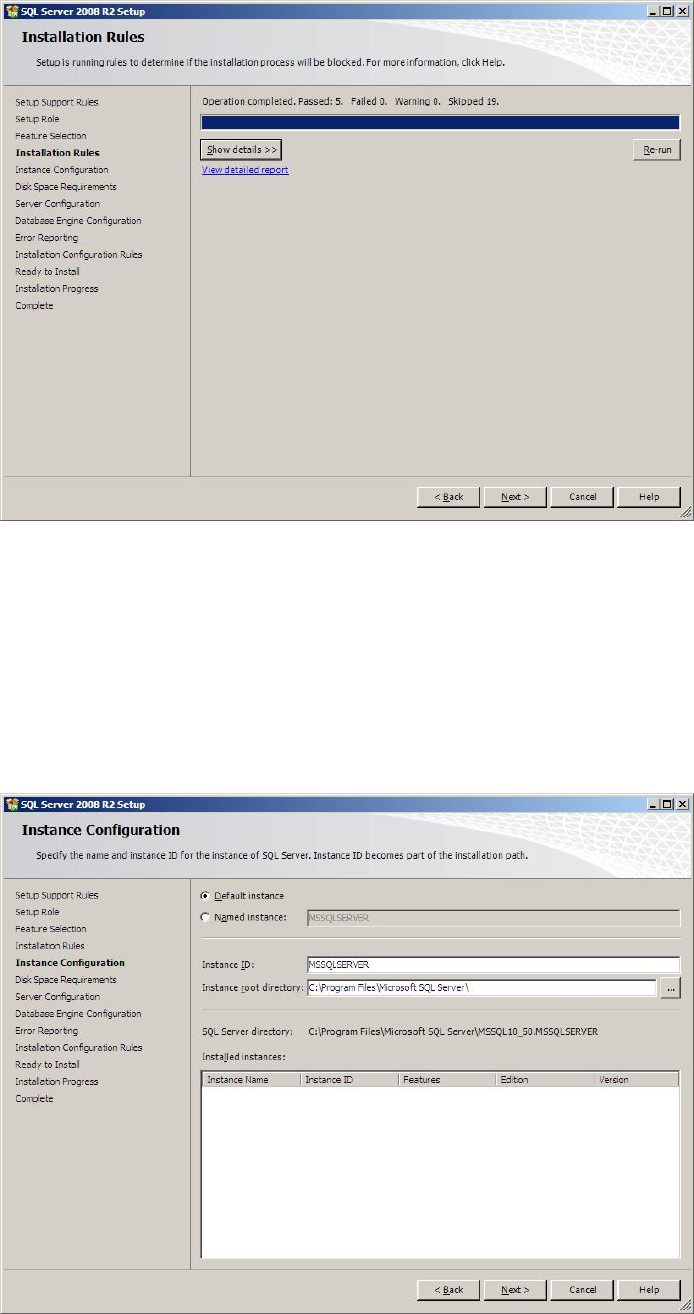

Fig. 3-13: SQL Server Setup Installation Rules Window
→ Click the button Show details >> to examine the rules and follow the rule instructions if
necessary.
→ Click the Next > button to continue.
The following window will be shown:
Fig. 3-14: SQL Server Setup Instance Configuration
→ Leave the default instance button checked to install the SQL Server using the
“MSSQLSERVER” – default instance.
→ Click the Next > button to continue.
16
