1 SS-1205 1. 概要本装置是识别多种电子元件 ( 以下简称“元件” ) ，并高速、高精度贴装到印刷线路板的装置。由 2 个横梁 2 个安装头 2 个元件识别照相机构成，可应对从多品种少量到少品种多量的广范围的生产方式。本装置进一步提高了本公司 GXH 系列的高生产性和高可靠性，是综合生产性高的下一代模块化贴片机。 2. 特长实现高生产性 • 凭借 70,000CPH/ 模块的生产量，实现高生产性 • 凭借配备…

SS-1205

1. 概要······························································································· 1

2. 特长······························································································· 1

3. 规格······························································································· 7

3.1 装置规格····················································································· 7

3.1.1 机构构成············································································· 7

3.1.2 装置规格············································································· 7

3.2 电气格书··················································································· 13

3.2.1 控制构成··········································································· 13

3.2.2 电气格书··········································································· 13

刊载的内容有时可能不予预告而进行变更，敬请谅解。

页次

1112-001

注意事项 : 商标及注册商标

• Windows 是美国 Microsoft Corporation 在美国及其他国家的注

册商标。

• 本书记载的公司名称、产品名称分别为各公司的商标或注册商

标。

本文未标明(TM)、(R) 标记。

SS-1205

1. 概要

本装置是识别多种电子元件 (以下简称“元件”)，并高速、高精度

贴装到印刷线路板的装置。

由 2 个横梁 2 个安装头 2 个元件识别照相机构成，可应对从多品种

少量到少品种多量的广范围的生产方式。

本装置进一步提高了本公司 GXH 系列的高生产性和高可靠性，是

综合生产性高的下一代模块化贴片机。

2. 特长

实现高生产性

• 凭借 70,000CPH/模块的生产量，实现高生产性

• 凭借配备 15 个吸嘴的安装头减小横梁往复次数，实现高生产

量

• XY 轴驱动采用线性电机，实现高速、高精度、高可靠性

• 凭借不间断飞速 (non-stop fly) 批量识别，实现高速、高精度

识别

• 实现线路板运输 2.0sec 以下 (线路板尺寸 260mm 以下)

• 带式送料器采用电机驱动，实现高速且可靠性高的送带

• 凭借批量更换推车削减送料器更换时间

Fig. 1 批量更换推车

• 凭借料带接合无需停止装置而可连续生产

• 凭借装置内的优化功能，可根据装置环境的变化重新生成线路

板程序和数据

1112-001

SS-1205

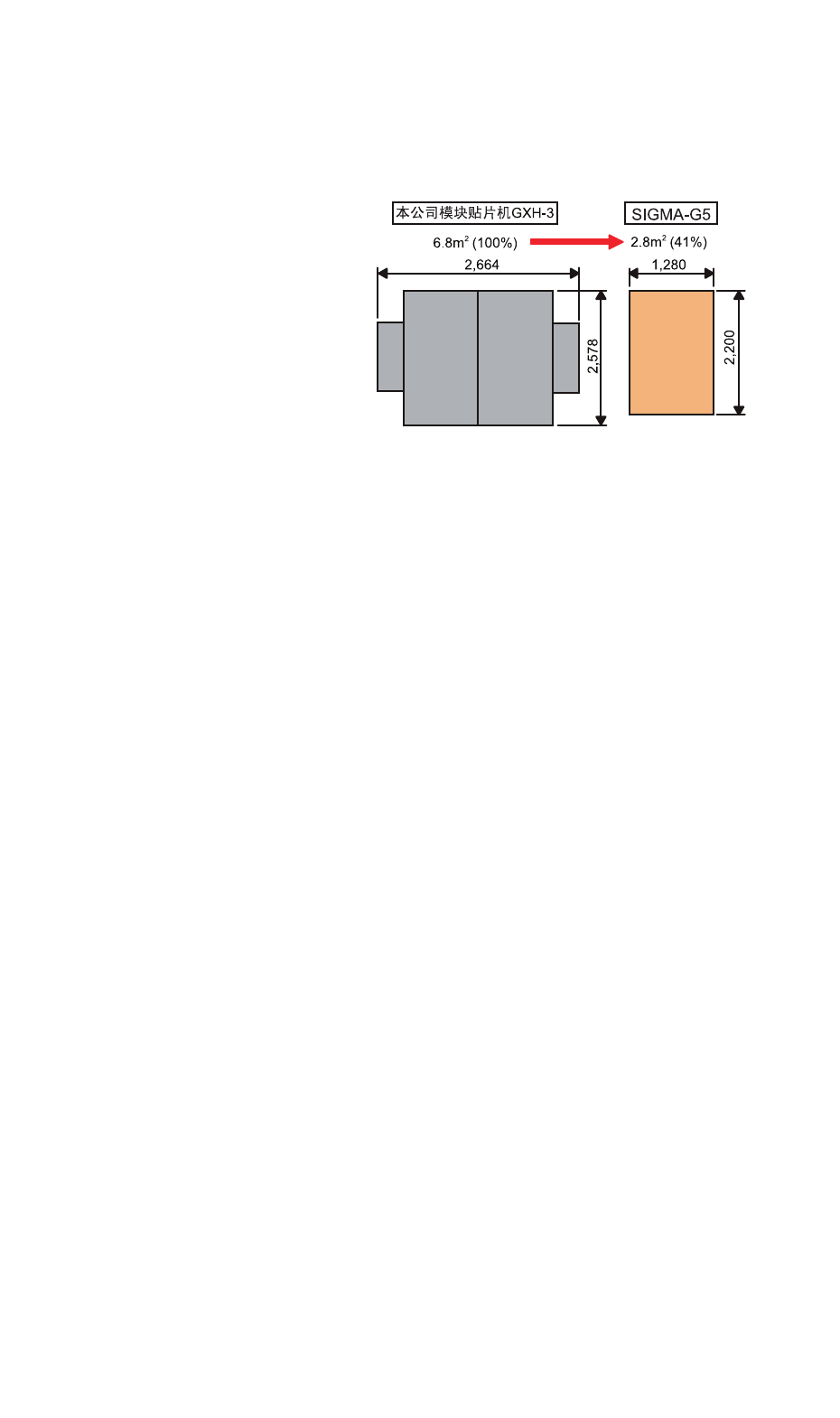

面积生产性

• 装置小型化

对装置进深尺寸进行小型化，实现从现有模块贴片机无缝过渡

Fig. 2
