MODEL TCM-3700-2 0109-001 9 Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE 1-1 1 630 048 9910 BLOCK,LOCA TE 6 739L--01B-005 1 -1 630 048 9637 BLOCK,LOCA TE 2 739L--01B-007 1 -2 630 048 9927 BLOCK,LOCA TE 6 739L--01B-00…
MODEL TCM-3700-2
0109-001
8
ᧄㇱ MAIN BODY SECTION

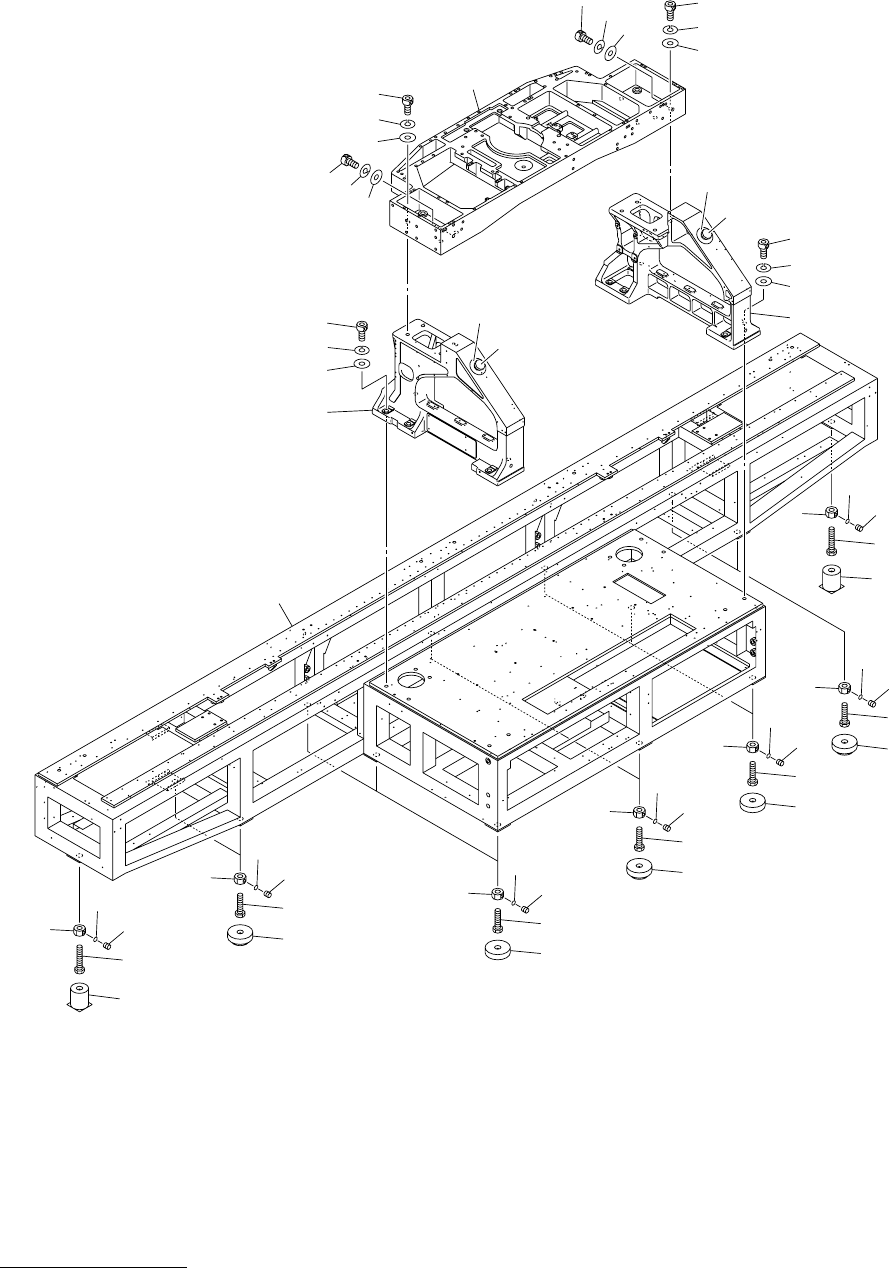

Fig. 1-1 ࡌࠬ Base
2
14
15
16
21
22
14
17
18
19
17
18
19
13
15
16
11
14
15
16
14
15
16
12
4
3-1
3
3-2
1
1-1
4-1
4
3-1
3
3-2
1
4
3-1
3
3-2
1-2
4
3-1
3
3-2
1
4
3-1
3
3-2
1-2
3-1
3
3-2
1-1
4-1
3-1
3
3-2
21
22
MODEL TCM-3700-2
0109-001
9
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
1-1
1 630 048 9910 BLOCK,LOCATE 6 739L--01B-005
1 -1 630 048 9637 BLOCK,LOCATE 2 739L--01B-007
1 -2 630 048 9927 BLOCK,LOCATE 6 739L--01B-006
2 630 093 6858 FRAME 1 739L--01B-001
3 630 042 5697 NUT 14 739L--01H-018
3 -1 630 041 6770 COLLAR 14 739L--01B-008
3 -2 630 000 8975 SET SCREW 14 M6X6 SET
4 630 042 5673 BOLT,HEX 12 739L--01H-017
4 -1 630 042 5680 BOLT,HEX 2 739L--01H-030
11 630 084 1220 FRAME(L) 1 739L--01B-003
12 630 084 1213 FRAME(R) 1 739L--01B-002
13 630 057 9055 FRAME(HEAD) 1 739L--01B-004
14 411 141 5401 WASHER V 20X37X3 20 FW20
15 411 141 6804 WASHER SPR 20 20 SW20
16 630 009 5814 BOLT,HEX-SCT 20 M20X70
17 411 141 5203 WASHER V 16X30X3 2 FW16
18 411 141 3407 WASHER SPR 16 2 SW16
19 630 083 4253 BOLT,HEX-SCT 2 739L--01H-095
21 630 064 6320 NAME PLATE,NOTICE 2 739FB-01D-078
22 630 064 6528 SWITCH,BUTTON 2 PB26, PB27 739FB-01D-001
MODEL TCM-3700-2
0109-001
10
ᧄㇱ MAIN BODY SECTION

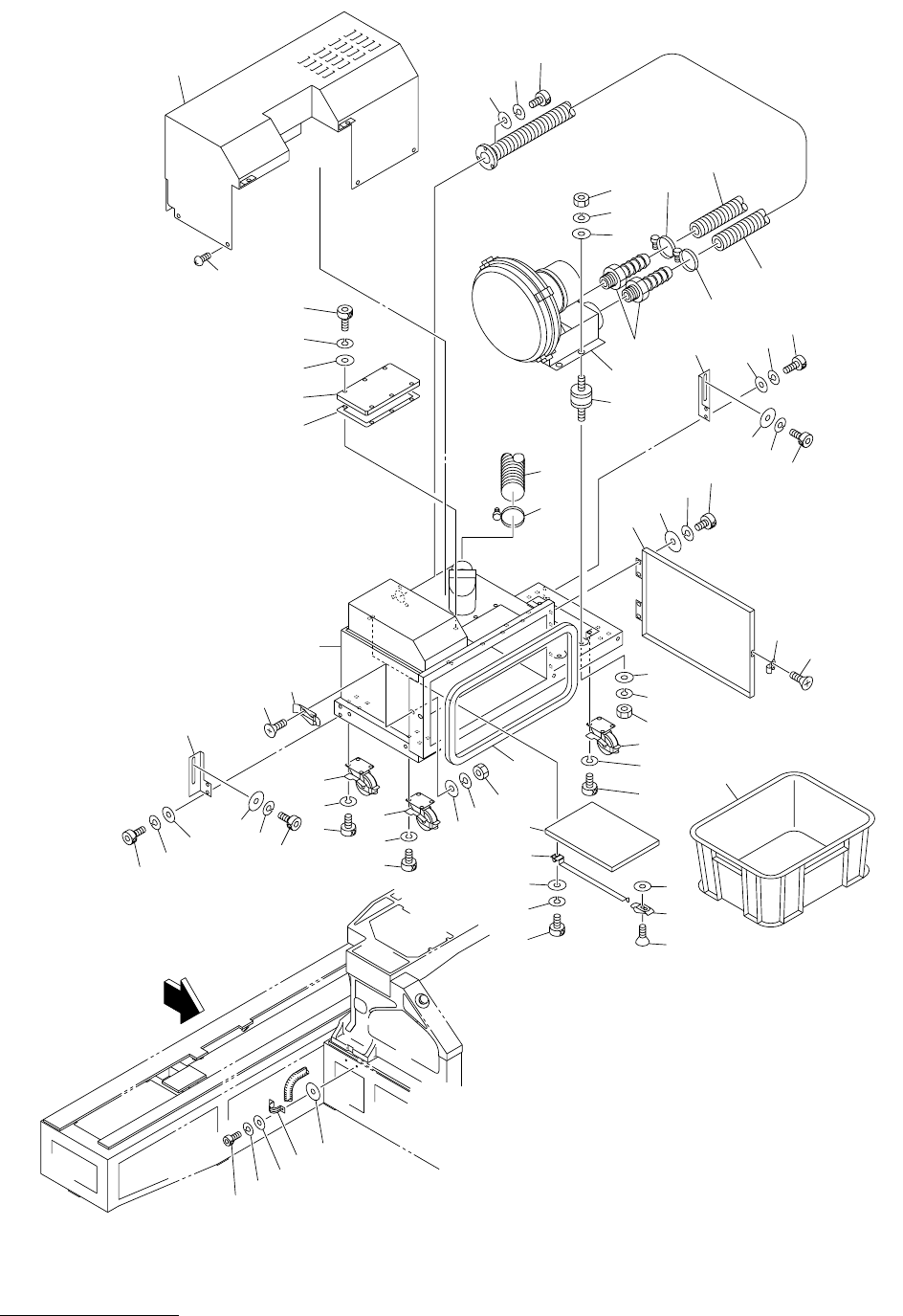

Fig. 1-2 ࠳ࠬ࠻ࡏ࠶ࠢࠬ Dust Box
53
54
55
57
58
58-1
57-1
56
51
52
2
3
4
2
3
4
2
3
4
53
54
55
1
28
29
30
27
32
31
46
45
25
81
80
24
23
22
21
13
14
15
8
26
31
33
9
10
11
12
94
93
92
91
90
34
35
36
7
60
61
62
73
74
75
76
77
78
75
74
73
76
77
78
72
71
A
TCM-3700-2
TCM-3700
Fig.1-2
